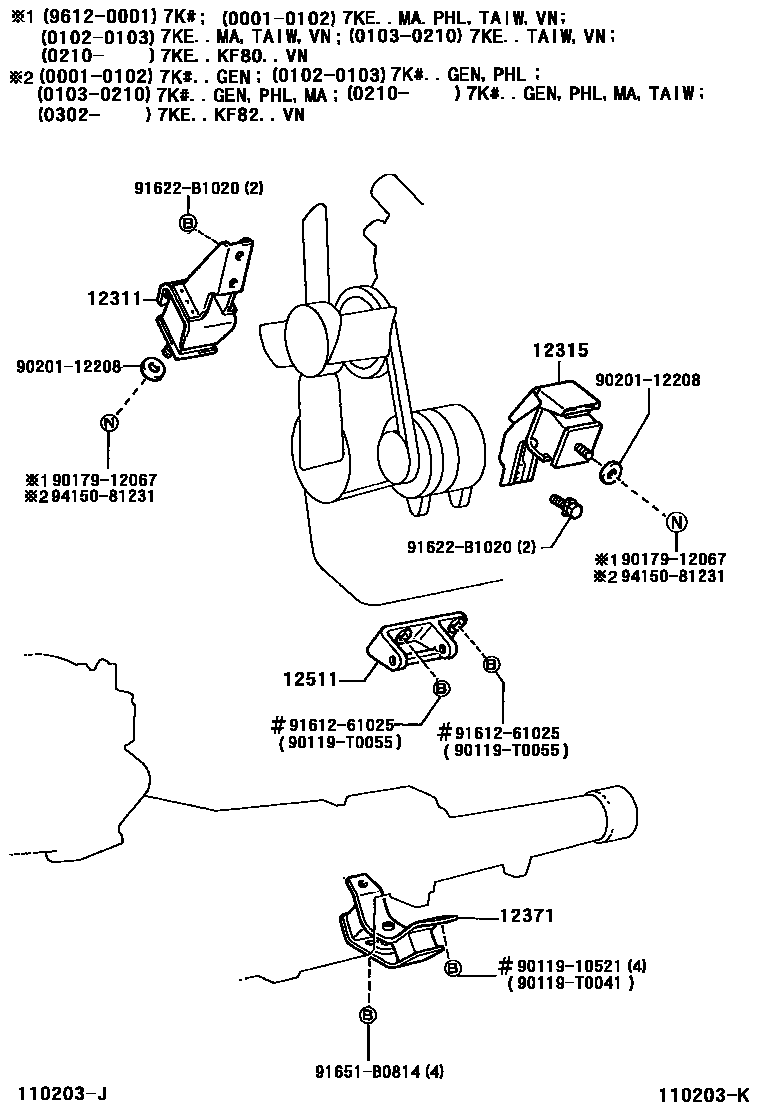

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-06011i7KE..KF60,80..TAIW200210-200707

main12301-13130i7K#..KF60,70,80..GEN,MA,PHL199612-199905

main12301-13131i7KE..KF82;7K#..KF60,7#,80..RHD200208-200612

main12311-05010i2L..LF82..RHD;2L..LF60,7#,80199612-200212

(L)

main12311-54091i2L..LF82200412-200501

main12311-54181i5L..LF61,81,85200306-200402

main12311-71010i2Y..YF60,80200004-200306

main12311-75080i1RZE,2RZE..RZF61,8#..DLX,GL,STD200208-200612

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-06012i7KE..KF60,80..TAIW199902-200210

main12302-13140i7K..KF60,70,80199612-199905

main12302-13141i7K..KF60,70,80200208-200612

main12302-13160i7KE..KF80..SRF199804-199905

main12302-13161i7KE..KF82;7KE..KF72,80..RHD200208-200601

main12315-71010i2Y..YF60,80200004-200306

main12315-75070i1RZE,2RZE..RZF61,8#..DLX,GL,STD200208-200612

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-06010i7K#..KF60,7#,8#..GEN200208-200612

main12371-06020i7KE..KF60,80..TAIW,VN199902-200302

main12371-0C040i1RZE..RZF81,82..4FC..GL200208-200406

main12371-34030i1RZE,2RZE..RZF80,81..5F..(PHL,SA); 2Y..YF60,80200004-200306

main12371-54160i2RZE..RZF85..5F199911-200306

main12371-75040i2RZE..RZF85..4FC199911-200210

main12371-75120i2RZE..RZF84200210-200612

12511BRACKET, ALTERNATOR, NO.1

main12511-13030i7KE..KF82..RHD;7K#..KF60,7#,80199612-200302

main12511-71010i2Y..YF60,80200004-200306

main12511-75041i1RZE,2RZE..RZF61,8#..DLX,GL,STD200208-200612

9011910521

main90119-10521

90119T0041

main90119-T0041

90119T0055

main90119-T0055

9017912067

main90179-12067

9020112208

main90201-12208

9161261025

main91612-61025

91622B1020

main91622-B1020

91651B0814

main91651-B0814

9415081231

main94150-81231

13 parts on this diagram · 4 diagrams in section
