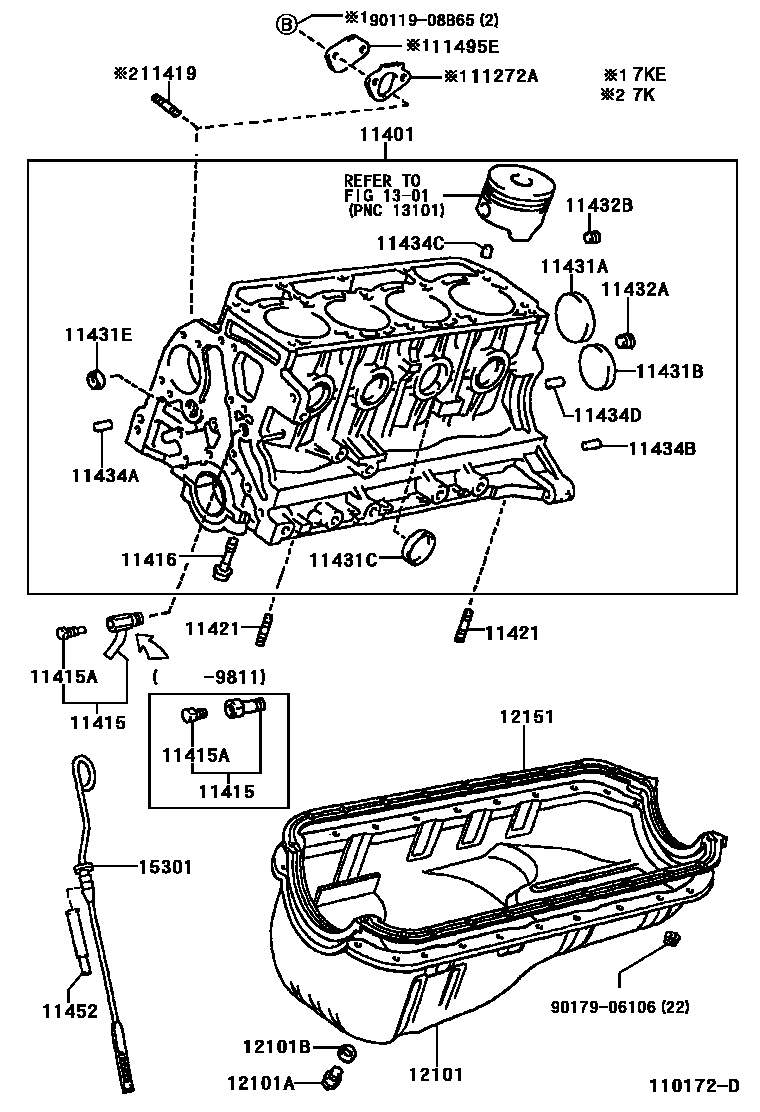

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11272AGASKET, CYLINDER BLOCK SIDE COVER, NO.2

main11496-13010i7KE..KF82..RHD;7KE..KF60,72,80199812-200612

main90080-92018i7KE..KF80199804-199812

11401BLOCK SUB-ASSY, CYLINDER

main11401-09071i7K..KF60,70,80199612-199702

sub11401-09072

main11401-09072i7K..KF60,70,80199702-200612

main11401-09160i7KE..KF60,72,82;7KE..KF80..(SHRV,SRF)..(MA,TAIW)199804-200612

main11401-09190i2L..LF82;2L..LF60,80..GEN199805-200402

main11401-09200i5L..LF61,81,85200306-200503

main11401-59347i2L..LF60,80,82199612-200501

main11401-59347i2L..LF60,80,82200308-200402

(J)

main11401-79066i2Y..YF60,80200004-200306

main11401-79537i1RZE..RZF81..LHD200010-200403

sub11401-79538

main11401-79538i1RZE..RZF61,81,82200403-200503

main11401-79726i2RZE..RZF80,84,85199911-200404

sub11401-79727

main11401-79727i2RZE..RZF80,84,85200404-200612

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90080-34014i2L..LF60,70,80199704-199805

(L)

main90345-53030i2L..LF60,70,80199612-199805

(J)

main90910-09075i1RZE,2RZE..RZF71,80,81,84,85199911-200612

sub90910-09129

main90910-09091i7K#..KF60,70,80199612-199811

main90910-09095i2Y..YF60,80200205-200306

main90910-09107i7K#..KF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)199811-200612

main90910-09110i2L..LF60,80,82..GEN199805-200503

main96431-53828i2Y..YF60,80200004-200205

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i7KE..KF82..RHD;7K#..KF60,7#,80199612-200612

main96432-23814i2Y..YF60,80200004-200205

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02019i7KE..KF82..RHD;7K#..KF60,7#,80199612-200612

main90910-02032i2Y..YF60,80200004-200306

main90910-02061i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200503

main90910-02092i1RZE,2RZE..RZF61,8#..DLX,GL,STD199911-200612

sub90910-02179

11419BOLT, STUD(FOR FUEL PUMP)

main90116-08102i7K..KF60,70,80199612-200612

11421BOLT, STUD(FOR OIL PAN)

main90109-06291i7KE..KF82..RHD;7K#..KF60,7#,80199612-200612

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-47025i7KE..KF82;7K#..KF60,7#,80..(SCB,SHRV,SRF)..(LUB,T2)..(GEN,MA,TAIW)199612-200612

main96411-01800i2Y..YF60,80200004-200306

main96411-42500i2L..LF82..LHD199612-200503

main96411-63000i1RZE,2RZE..RZF61,8#..DLX,GL,STD199911-200612

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i2L..LF82..LHD199612-200503

main96411-63500i1RZE,2RZE..RZF71,80,81,84,85199911-200612

main96411-64500i7KE..KF82..RHD;7K#..KF60,7#,80199612-200612

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-45000i2Y..YF60,80199612-200503

main96411-63500i7KE..KF82;7K#..KF60,7#,80..(SCB,SHRV,SRF)..(LUB,T2)..(GEN,MA,TAIW)199612-200612

main96411-64000i1RZE,2RZE..RZF61,8#..DLX,GL,STD199911-200612

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96412-01800i7KE..KF82;7K#..KF60,7#,80..(SCB,SHRV,SRF)..(LUB,T2)..(GEN,MA,TAIW)199612-200612

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53011i7KE..KF82..RHD;7K#..KF60,7#,80199612-200612

main90345-51006i5L..LF61,81,85199612-200503

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90344-51014i7KE..KF82..RHD;7K#..KF60,7#,80199612-200612

main90344-53011i2Y..YF60,80200004-200306

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i7K#..KF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)199612-200612

L=18,OD=8

main90253-11021i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200503

L=8,OD=11

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08120i2Y..YF60,80200004-200306

L=18,OD=8

main90250-10113i2Y..YF60,80199612-200612

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i7KE..KF82..RHD;7K#..KF60,7#,80199612-200612

L=18,OD=8

main90253-15005i5L..LF61,81,85199612-200503

L=7,OD=14.5

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1RZE,2RZE..RZF61,8#..DLX,GL,STD199911-200612

L=14,OD=6

main90250-08120i7KE..KF82;7K#..KF60,7#,80..(SCB,SHRV,SRF)..(LUB,T2)..(GEN,MA,TAIW)199612-200612

L=18,OD=8

main90253-11021i5L..LF61,81,85199612-200503

L=8,OD=11

11452GUIDE, OIL LEVEL GAGE

main11409-75041i1RZE,2RZE..RZF61,8#..DLX,GL,STD199911-200612

main11452-05020i2L..LF82..LHD199612-200503

main11452-13050i7KE..KF82..RHD;7K#..KF60,7#,80199612-200612

main11452-40010i2Y..YF60,80200004-200306

11495EPLUG, PLATE

main11495-40010i7KE..KF80..SHRW..TAIW199804-200612

12101PAN SUB-ASSY, OIL

main12101-05070i2L..LF82;2L..LF60,80..GEN200112-200402

(L)

main12101-05080i5L..LF61,81,85200112-200402

(L)

main12101-06010i7K#..KF60,70,80199612-199812

sub12101-06011

sub51441-28090

main12101-06011i7KE..KF82;7K#..KF60,7#,80..GEN,MA,TAIW199812-200409

sub12101-06012

sub15104-13030

sub15149-74020

main12101-06012i7KE..KF82;7KE..KF60,80..SCB,SHRV,SRF200409-200612

main12101-54102i2L..LF60,70,80199612-199808

sub12101-54104

main12101-54104i2L..LF60,70,80199808-199904

sub12101-54105

main12101-54105i2L..LF82..RHD;2L..LF60,72,80200112-200501

(J)

main12101-54105i2L..LF60,7#,80,82199904-200112

main12101-54290i5L..LF61,81,85200004-200112

main12101-54290i5L..LF61,81,85200112-200503

(J)

main12101-72010i2Y..YF60,80200004-200306

main12101-75041i1RZE,2RZE..RZF71,80,81,84,85199911-200612

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2Y..YF60,80199612-200612

main90341-12026i1RZE,2RZE..RZF71,8#199911-200210

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i2L..LF82;2L..LF60,80..GEN199805-200402

main90430-12031i2L..LF60,80,82..RHD199612-200612

12151GASKET, OIL PAN

main12151-13030i7KE..KF82..RHD;7K#..KF60,7#,80199612-200612

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-05020i2L..LF82..RHD;2L..LF60,7#,80199612-200402

(L)

main15301-13040i7K#..KF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)199612-200612

main15301-54060i2L..LF82..LHD200402-200501

main15301-54060i2L..LF82..RHD;2L..LF60,7#,80199612-200402

(J)

main15301-54160i5L..LF61,81,85200004-200503

main15301-72010i2Y..YF60,80200004-200306

main15301-75080i1RZE,2RZE..RZF61,8#..DLX,GL,STD199911-200612

9011908B65

main90119-08B65

9017906106

main90179-06106

27 parts on this diagram · 4 diagrams in section
