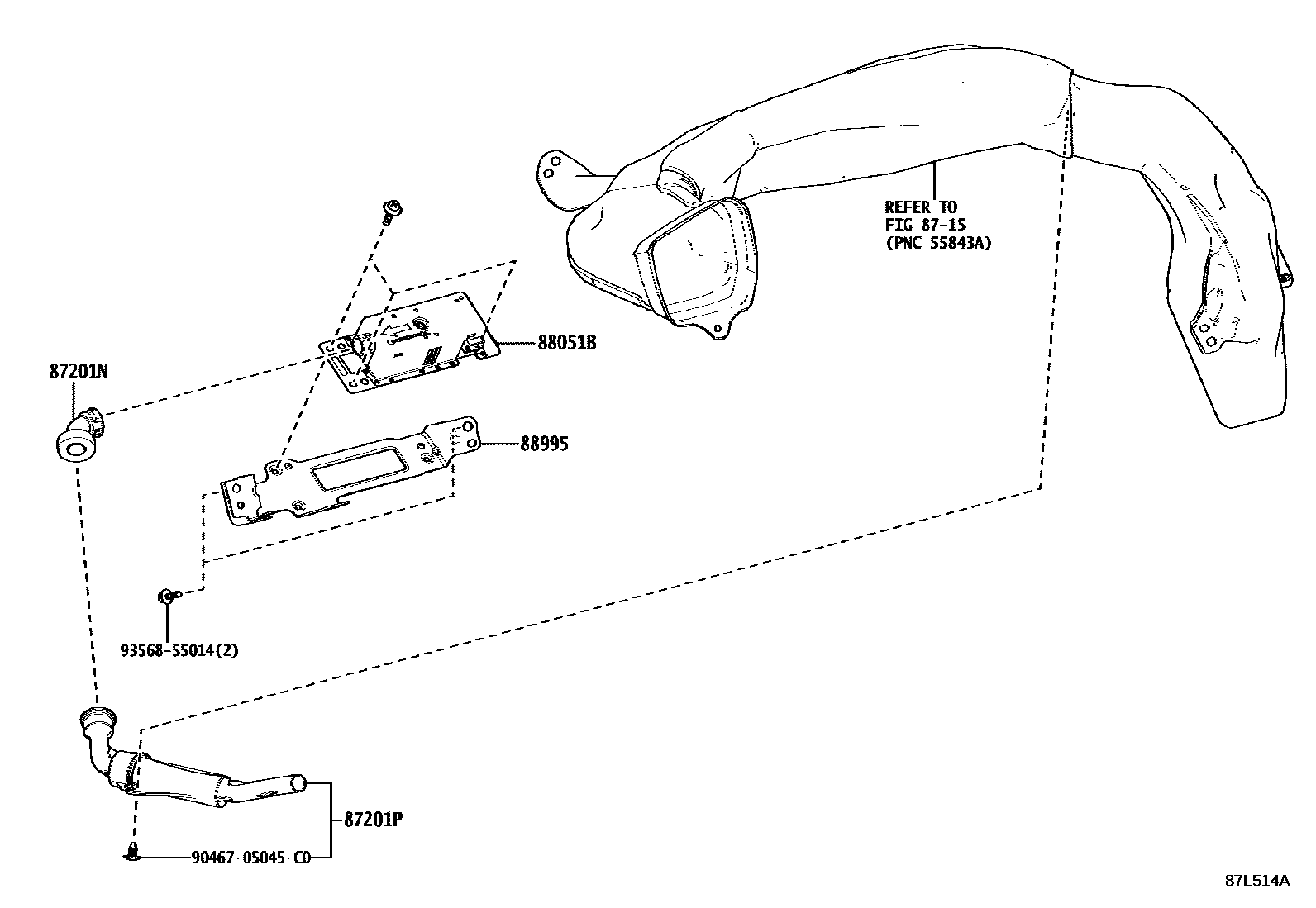

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-12030iXEBM10..CHI,GEN;XEBM15..(C,L)..(ARL,CHI,GEN)202311

87201PDUCT SUB-ASSY, AIR ,NO.2

main55846-46010iXEBM15..B..CHI202301

main55846-46020iXEBM1#..RHD..(ARL,GEN)202311

88051BGENERATOR SUB-ASSY, ION, NO.1

main88051-46010iXEBM15..ARL,CHI,GEN; XEBM15..EUR202301-202305

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main88051-46020iXEBM15..(C,L)..(ARL,CHI,GEN); XEBM15..EUR202306-202311

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

88995BRACKET,ION GENERATOR, NO.1

main88995-46010iXEBM15..B..CHI202301

main88995-46020iXEBM1#..RHD..(ARL,GEN)202311

9046705045C0

main90467-05045C0

9356855014

main93568-55014

7 parts on this diagram · 2 diagrams in section
