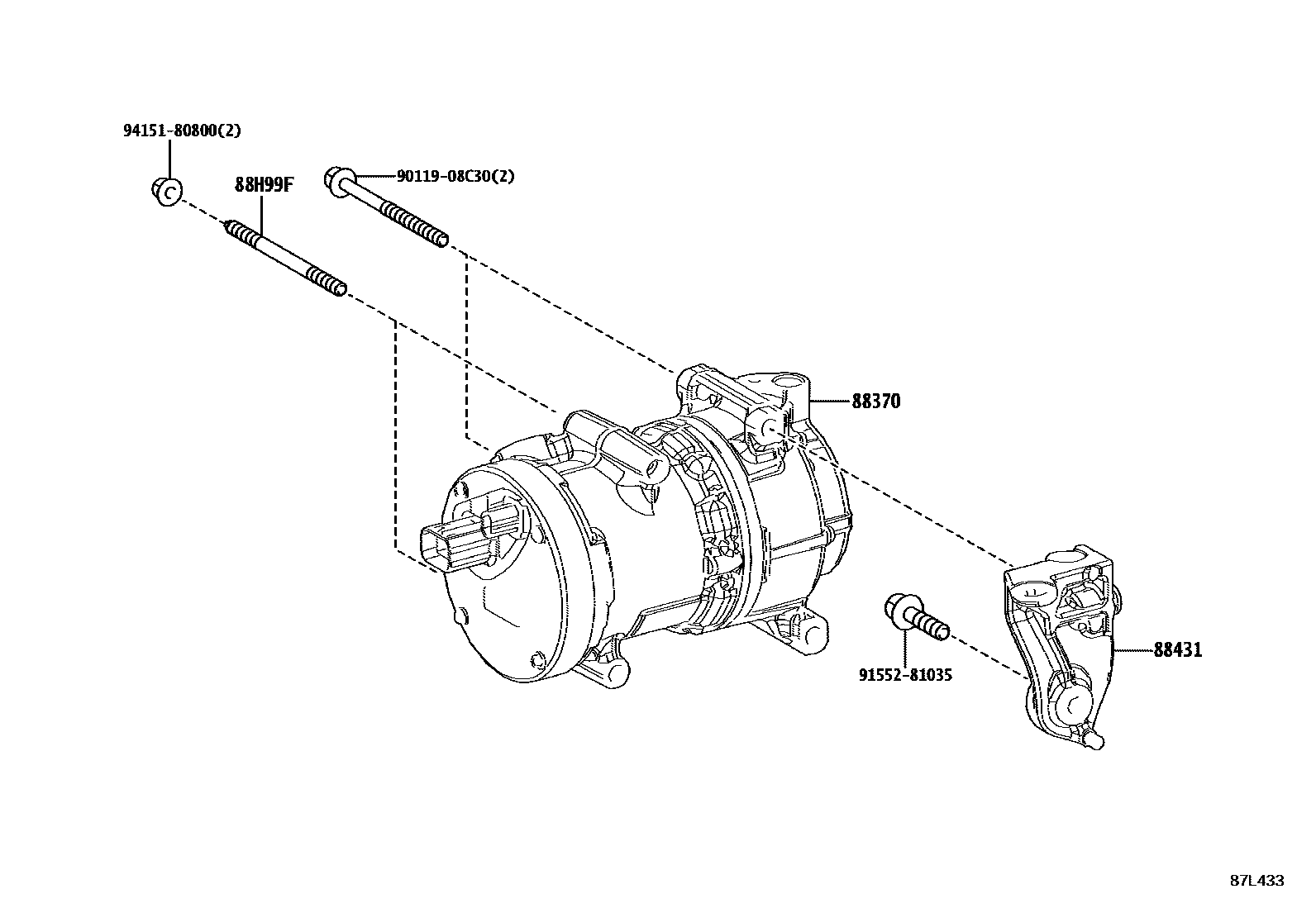

HEATING & AIR CONDITIONING - COMPRESSOR

88370COMPRESSOR ASSY, W/MOTOR

main88370-42050iXEBM15202301-202305

main88370-42051iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-42020iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

88H99FBOLT, STUD

main88899-44010×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

9011908C30

main90119-08C30

9155281035

main91552-81035

9415180800

main94151-80800

6 parts on this diagram · 1 diagram in section
