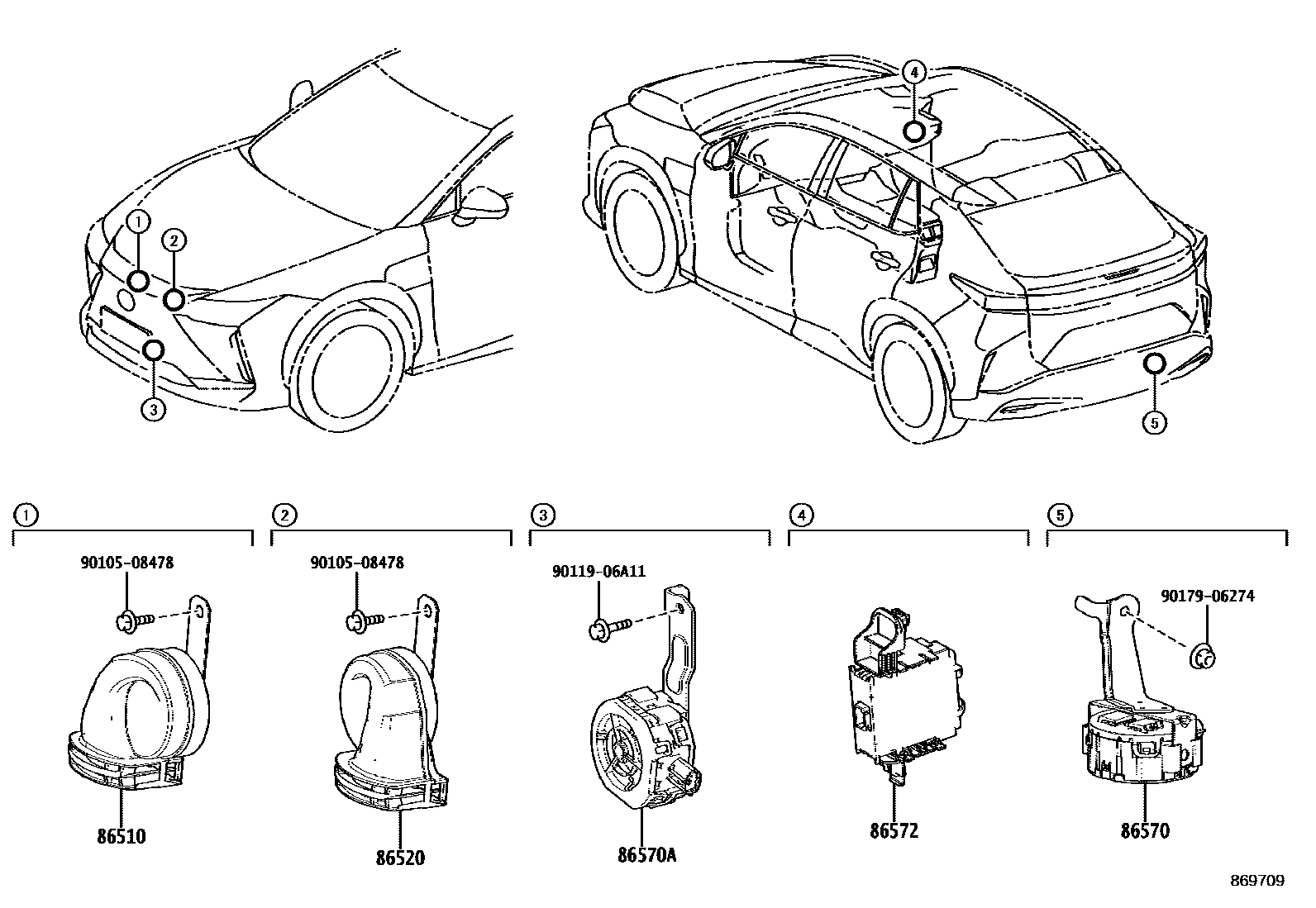

HORN

86510HORN ASSY, HIGH PITCHED

main86510-30740iXEBM15..ARL,EUR,GEN202301-202311

main86510-42080iXEBM10..CHI;XEBM15..(C,L)..CHI202311

86520HORN ASSY, LOW PITCHED

main86520-30650iXEBM15..ARL,EUR,GEN202301-202311

main86520-42120iXEBM15..B..CHI202301

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN; XEBM15..RHD..GEN202311

MALAYSIA SPEC

86570ASPEAKER ASSY, VEHICLE APPROACHING, NO.2

main86570-42060iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN; XEBM15..RHD..GEN202311

MALAYSIA SPEC

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-46010iXEBM15..CHI,EUR202301

main86572-46011iXEBM15..LHD..B..EUR;XEBM10..LHD..(CHI,EUR);XEBM1#..RHD..(EUR,GEN);XEBM15..LHD..(C,L)..(CHI,EUR); XEBM15..RHD..GEN202406

MALAYSIA SPEC

main86572-46050iXEBM15..ARL;XEBM1#..LHD..GEN; XEBM15..RHD..GEN202311

SINGAPORE SPEC

9010508478

main90105-08478

9011906A11

main90119-06A11

9017906274

main90179-06274

8 parts on this diagram · 1 diagram in section
