CAMERA & REAR MONITOR DISPLAY
8504
86470COMPUTER ASSY, DRIVER MONITOR
TAIWAN SPEC
86471CAMERA, DRIVER MONITOR
TAIWAN SPEC
TAIWAN SPEC
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&STEERING COLUMN-POWER(STEER BY WIRE),WITH(LOCK)
86472BRACKET, DRIVER MONITOR
TAIWAN SPEC
86790BCAMERA ASSY, TELEVISION, FR
BACK MONITOR-WITH(*PVM)
86790DCAMERA ASSY, TELEVISION, RR
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
COLD AREA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
COLD AREA SPEC
86790ECAMERA ASSY, TELEVISION, SIDE RH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL &SAFE EXIT ASSIST)
86790FCAMERA ASSY, TELEVISION, SIDE LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL &SAFE EXIT ASSIST)
86792CCOMPUTER, PARKING ASSIST
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
86794BCOVER, TELEVISION CAMERA
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
COLD AREA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
867C0CAMERA ASSY, INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
867C1WIRE, MIRROR CAMERA
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
9015350015
main90153-50015
9015950393
main90159-50393
9015960621
main90159-60621
9016750063
main90167-50063
9017906274
main90179-06274
9018306032
main90183-06032
9018906244
main90189-06244
9167380616
main91673-80616

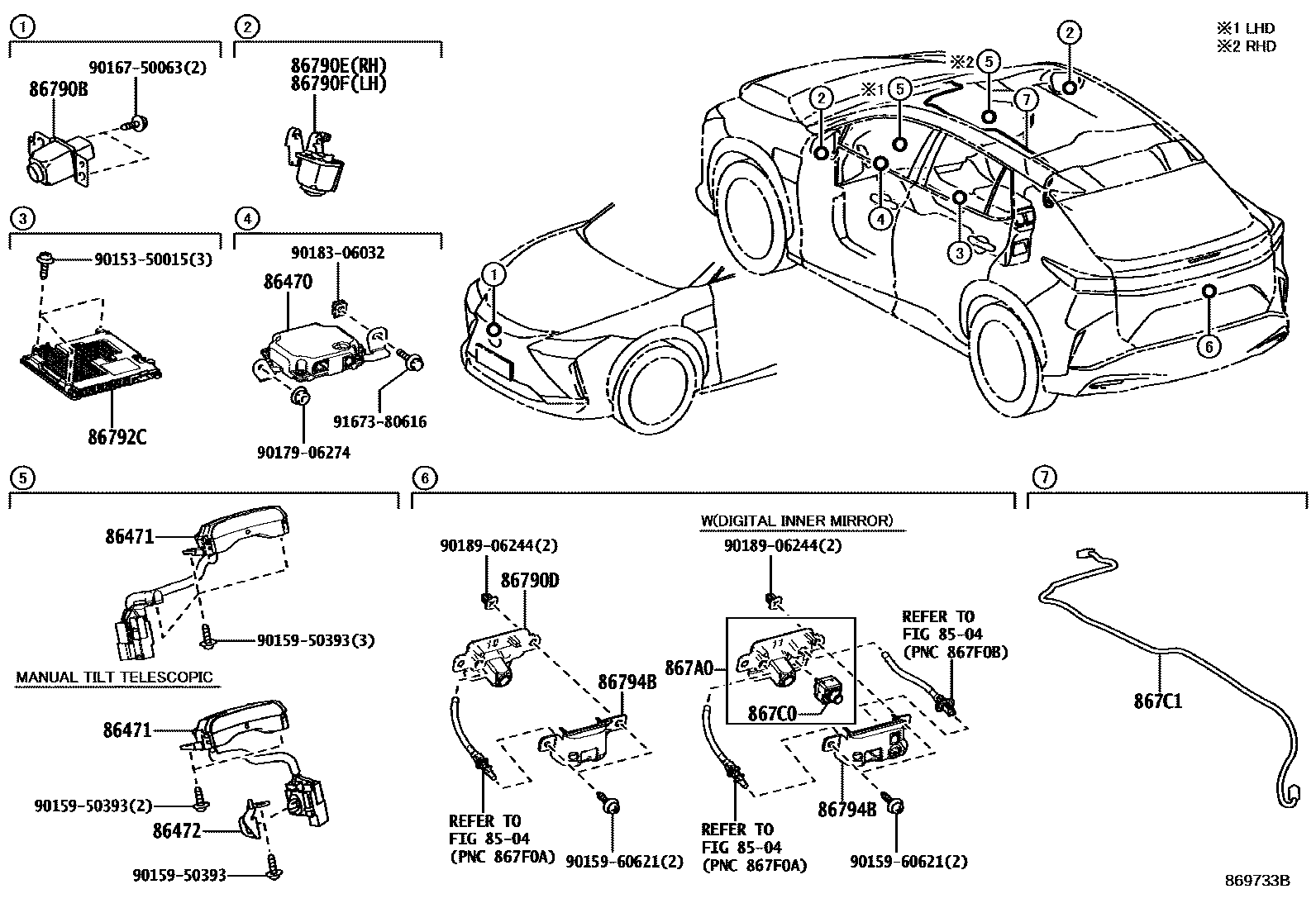

21 parts on this diagram · 1 diagram in section
