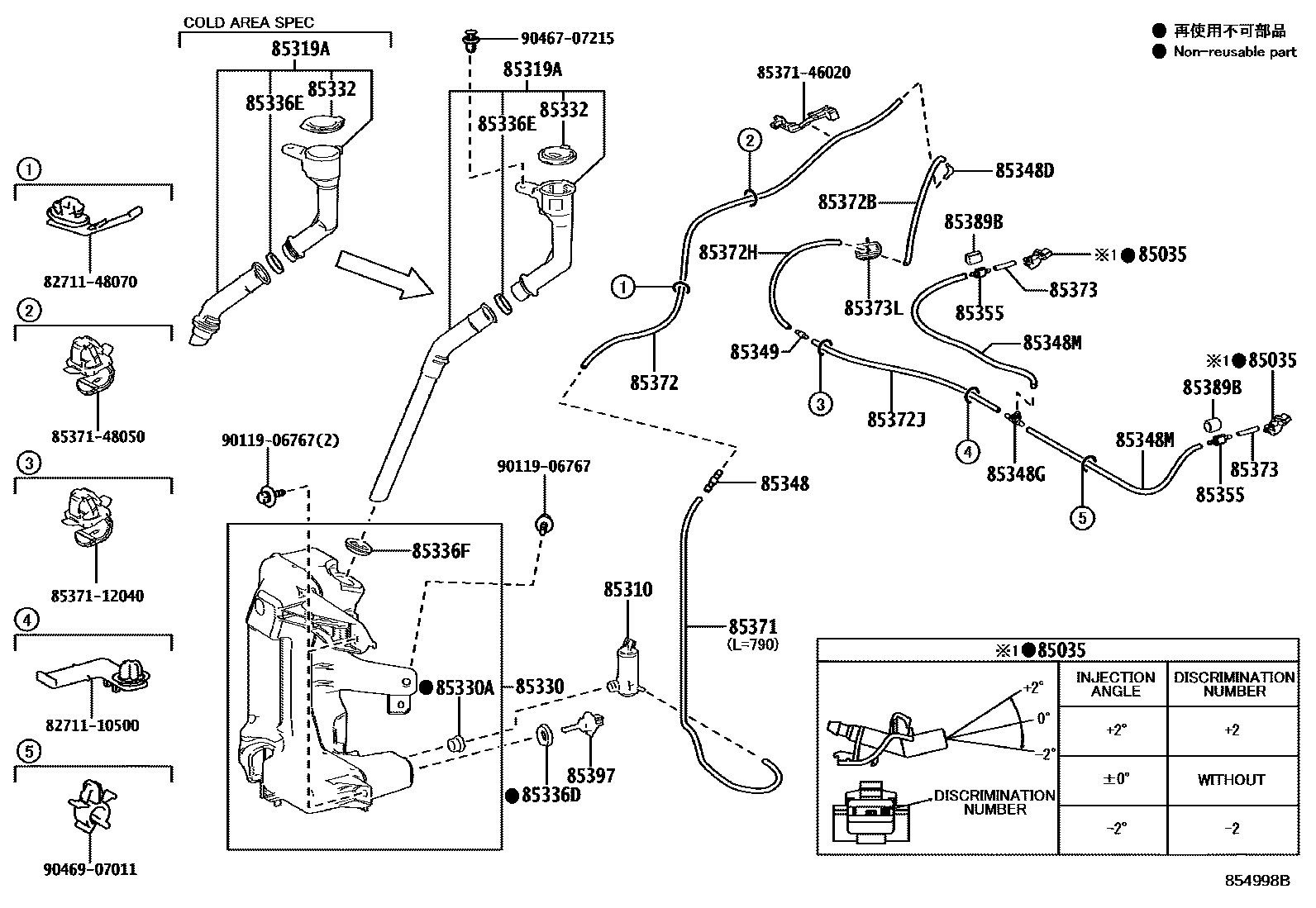

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
COLD AREA SPEC
COLD AREA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
COLD AREA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85319AHOSE, INLET
85330JAR ASSY, WINDSHIELD WASHER
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85336FPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
COLD AREA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
COLD AREA SPEC
COLD AREA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=980)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=280)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=360)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=410)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=60)
85373LGROMMET, WASHER
85389BPROTECTOR, WINDSHIELD WASHER
85397SWITCH ASSY,LEVEL WARNING
8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10500
8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48070
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
8537146020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-46020
8537148050HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-48050
9011906767
main90119-06767
9046707215
main90467-07215
9046907011
main90469-07011
32 parts on this diagram · 2 diagrams in section
