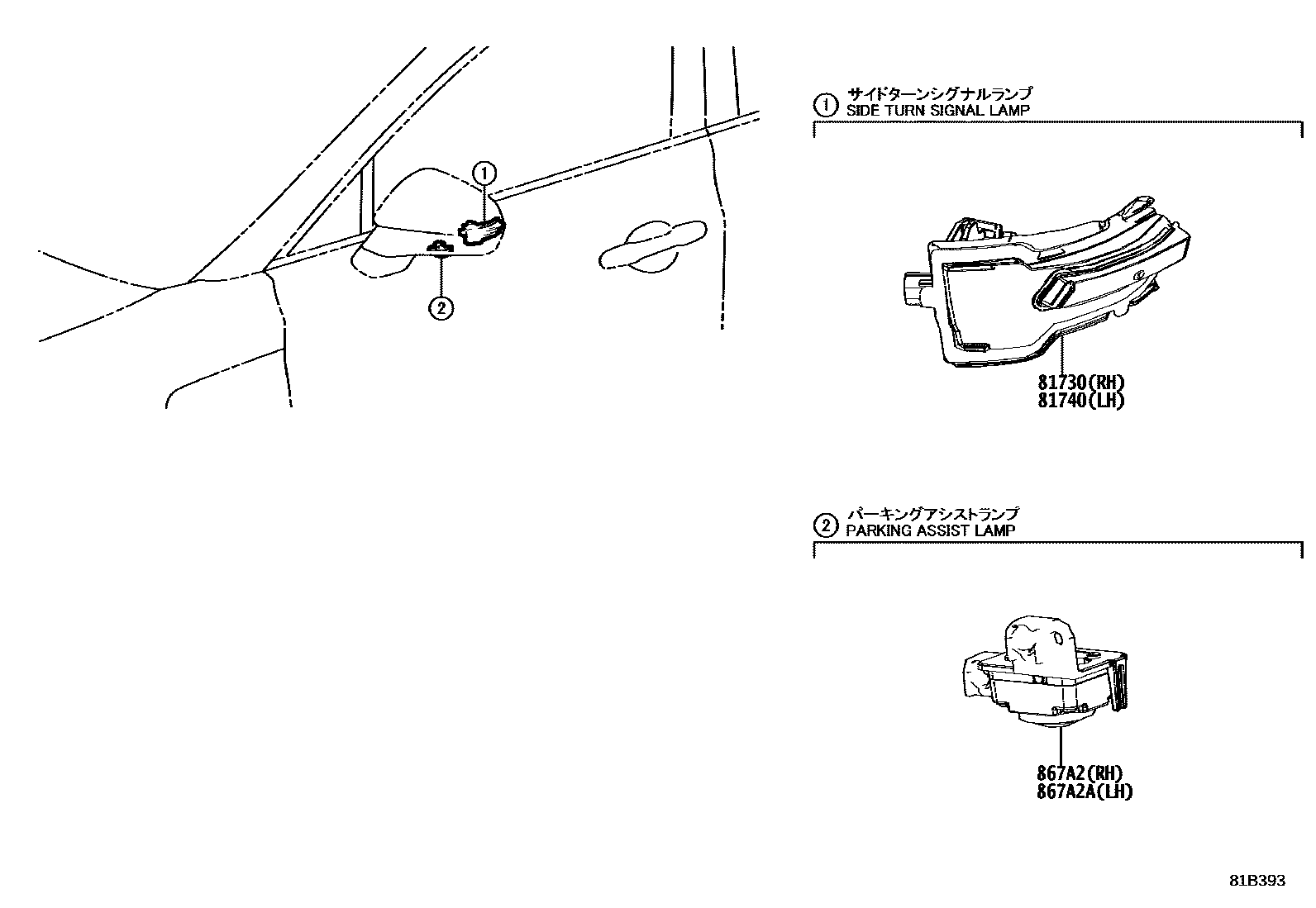

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
81730LAMP ASSY, SIDE TURN SIGNAL, RH
81740LAMP ASSY, SIDE TURN SIGNAL, LH
867A2LIGHT, PARKING ASSIST, RH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL &SAFE EXIT ASSIST)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC& SAFE EXIT ASSIST)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST)
BACK MONITOR-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXITASSIST)
867A2ALIGHT, PARKING ASSIST, LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL &SAFE EXIT ASSIST)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC& SAFE EXIT ASSIST)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST)
BACK MONITOR-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXITASSIST)
4 parts on this diagram · 1 diagram in section
