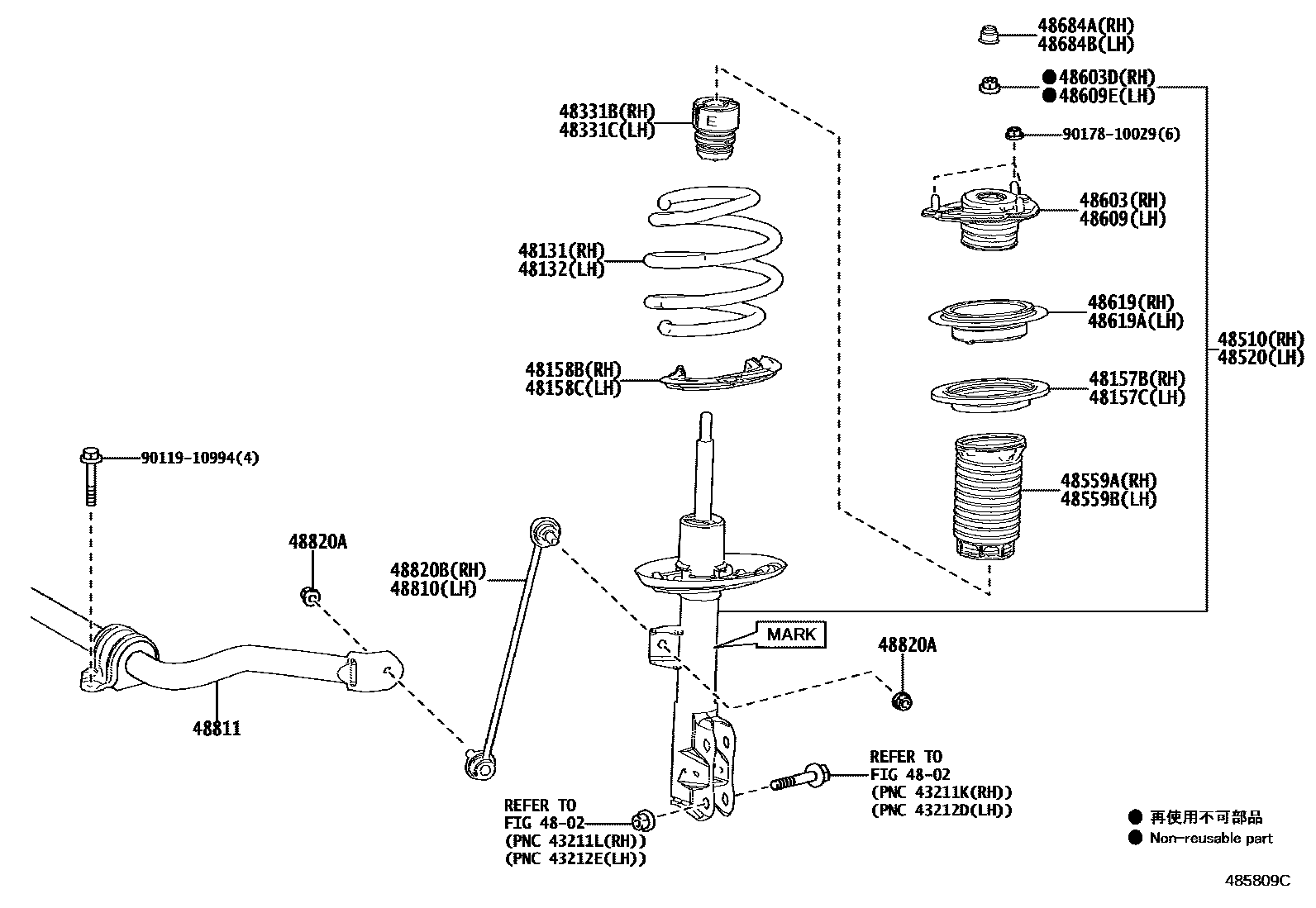

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-46090iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

48132SPRING, FRONT COIL, LH

main48131-46090iXEBM15..B..CHI202301

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-33090iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-33090iXEBM15..B..CHI202301

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33110iXEBM15..B..CHI202301

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33110iXEBM15..B..CHI202301

48331BBUMPER, FRONT SPRING, RH

main48331-42110iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

48331CBUMPER, FRONT SPRING, LH

main48331-42110iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80C53iXEBM10..B,C202311

MARK 48510-46170

main48510-8Z601iXEBM15..C..CHI;XEBM15..(B,C)..(ARL,EUR,GEN)202311

MARK 48510-46130

main48510-8Z602iXEBM15..C202311

MARK 48510-46140,TIRE & DISC WHEEL-235/50R20+255/45R20,GRAY PAINTED

main48510-8Z679iXEBM10..L202311

MARK 48510-46180

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80803iXEBM10..B,C202311

MARK 48520-46100

main48520-8Z422iXEBM15..B..CHI202301

MARK 48520-46060

main48520-8Z423iXEBM15..C202311

MARK 48520-46070,TIRE & DISC WHEEL-235/50R20+255/45R20,BLACK PAINTED

main48520-8Z483iXEBM10..L202311

MARK 48520-46110,TIRE & DISC WHEEL-235/50R20+255/45R20,BLACK PAINTED

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-42010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-42010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42090iXEBM1#..ARL,EUR,GEN202311

main48609-42100iXEBM15..(C,L)..CHI202301-202311

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iXEBM15..B..CHI202301

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42090iXEBM15..ARL,EUR,GEN202301-202311

main48609-42100iXEBM15..B..CHI202301

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

48619BEARING, STRUT MOUNTING, RH

main48619-42040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

48619ABEARING, STRUT MOUNTING, LH

main48619-42040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iXEBM15..B..CHI202301

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42050iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

48811BAR, STABILIZER, FRONT

main48804-42040iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241×4iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42050iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

9011910994

main90119-10994

9017810029

main90178-10029

27 parts on this diagram · 1 diagram in section
