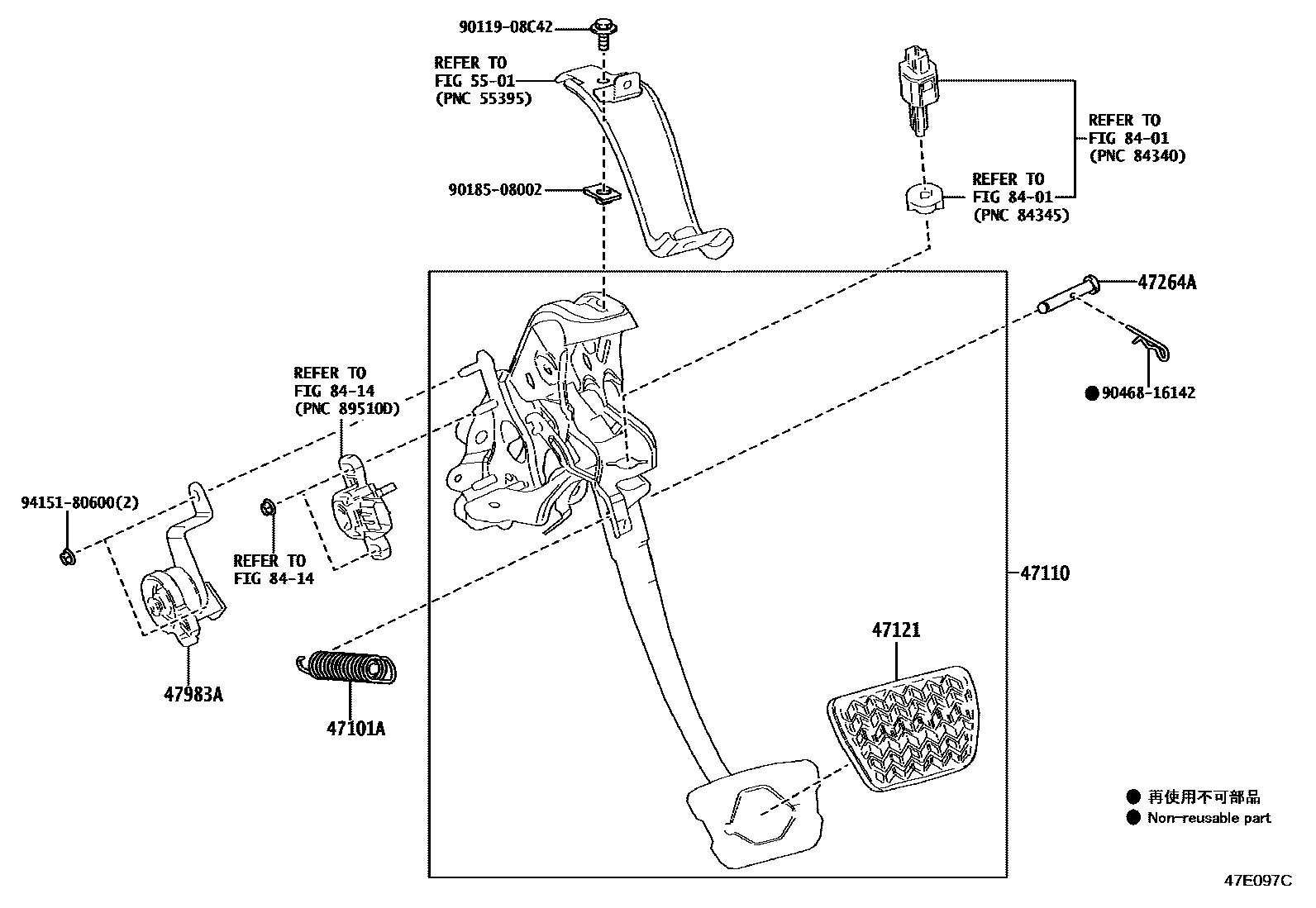

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-17005iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

47110SUPPORT ASSY, BRAKE PEDAL

main47110-46071iXEBM15..B..CHI202301

main47110-46081iXEBM15..RHD202301-202311

47121PAD, BRAKE PEDAL

main47121-62010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

47264APIN(FOR PUSH ROD)

main90249-08221iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

47983ADAMPER, BRAKE TRACTION

main47983-46030iXEBM15..B..CHI202301

main47983-46040iXEBM15..RHD202301-202311

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C42

main90119-08C42

9018508002

main90185-08002

9046816142

main90468-16142

9415180600

main94151-80600

12 parts on this diagram · 2 diagrams in section
