Toyota BZ4X (TFTM) — MIRROR

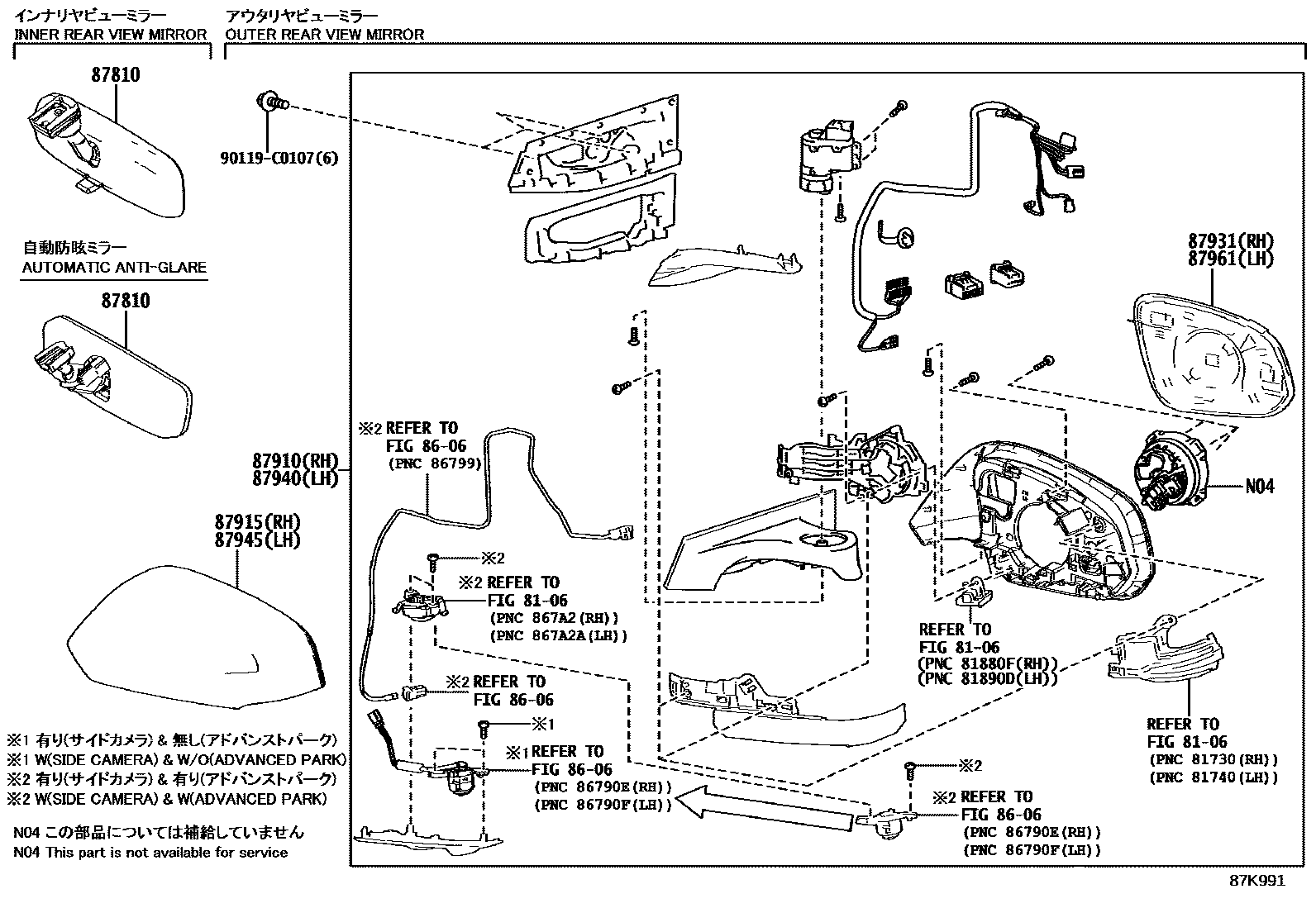

Parts diagram

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

87910MIRROR ASSY, OUTER REAR VIEW, RH

87915COVER, OUTER MIRROR, RH

87931OUTER MIRROR, RH

87940MIRROR ASSY, OUTER REAR VIEW, LH

87945COVER, OUTER MIRROR, LH

87961MIRROR OUTER, LH

90119C0107

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota BZ4X (TFTM)

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota BZ4X (TFTM). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
