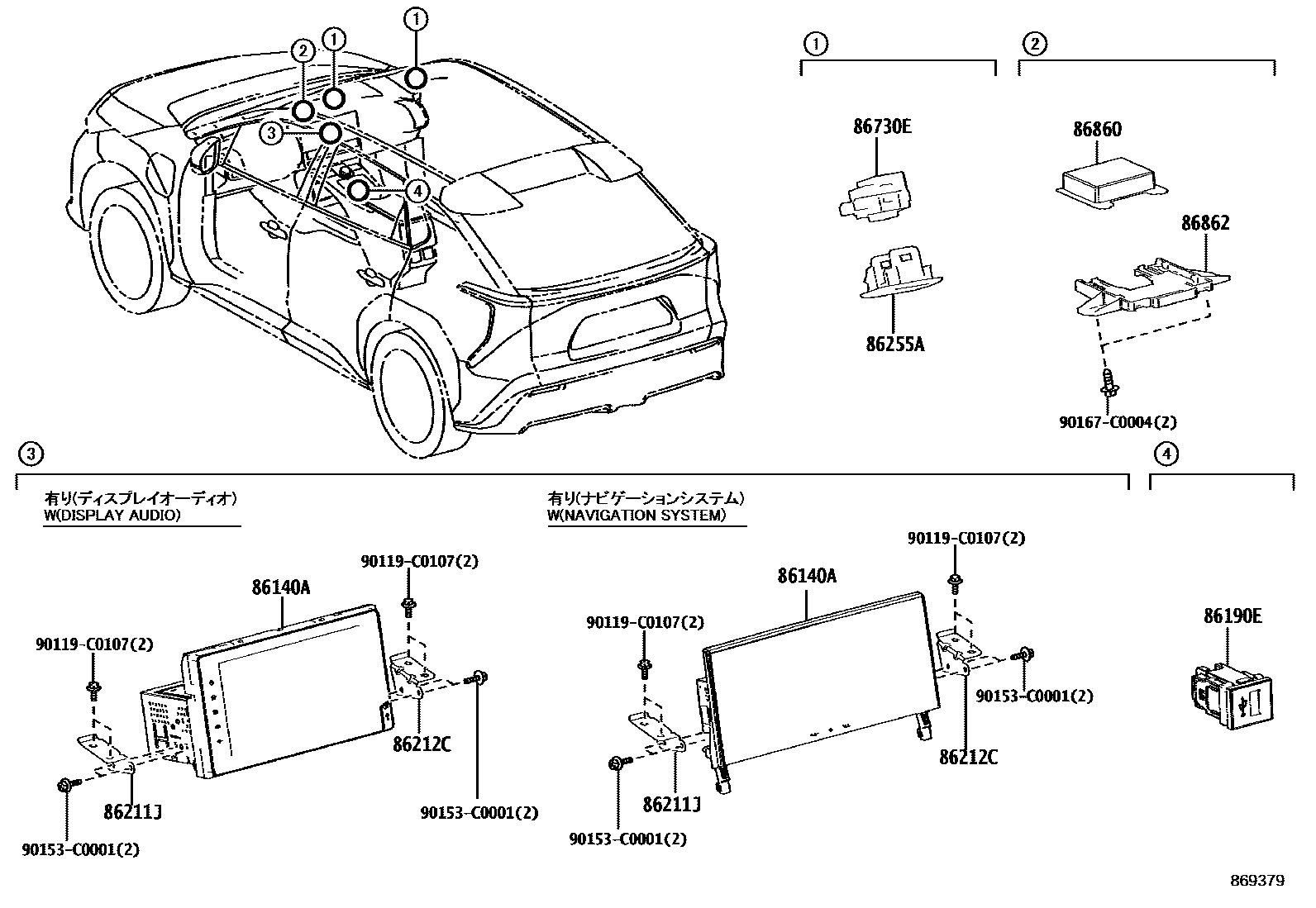

NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-0R040iXEAM10,YEAM15..H,M; XEAM10..L202210-202302

DESAY; DESAY,AUDIO-AVN

main86100-0R041iXEAM10,YEAM15..H,M; XEAM10..L202302-202304

DESAY; DESAY,AUDIO-AVN

main86100-0R042iXEAM10..L; XEAM10..M202304-202306

DESAY; DESAY,AUDIO-AVN

main86100-0R043iYEAM15202307-202312

DESAY

main86100-0R271iYEAM15202312

DESAY

main86100-0R320iXEAM10..L; XEAM10..M202306-202309

DESAY; DESAY,AUDIO-AVN

main86100-0R321supersedes 86140-0R531iXEAM10..L; XEAM10..M202310

DESAY; DESAY,AUDIO-AVN

86190EADAPTER ASSY, STEREO JACK

main86190-0A010iXEAM10,YEAM15..H,M; XEAM10..L202211

AUDIO-AVN

main86190-34010iXEAM10,YEAM15..H,M; XEAM10..L202210-202211

AUDIO-AVN

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-0R150iXEAM10,YEAM15202210

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-0R150iXEAM10,YEAM15202210

86255ACASE, MICROPHONE, NO.1

main86255-0A010-C0×2iXEAM10,YEAM15..H,M; XEAM10..L202210

AUDIO-AVN,BLACK,TRIM1#,2#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

86730EMICROPHONE ASSY

main86730-0A010×2iXEAM10,YEAM15..H,M; XEAM10..L202210

AUDIO-AVN

86860ANTENNA ASSY, NAVIGATION

main86880-0R020iXEAM10,YEAM15202210

86862BRACKET, NAVIGATION ANTENNA

main86862-0R020iXEAM10,YEAM15202210

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90167C0004

main90167-C0004

11 parts on this diagram · 1 diagram in section
