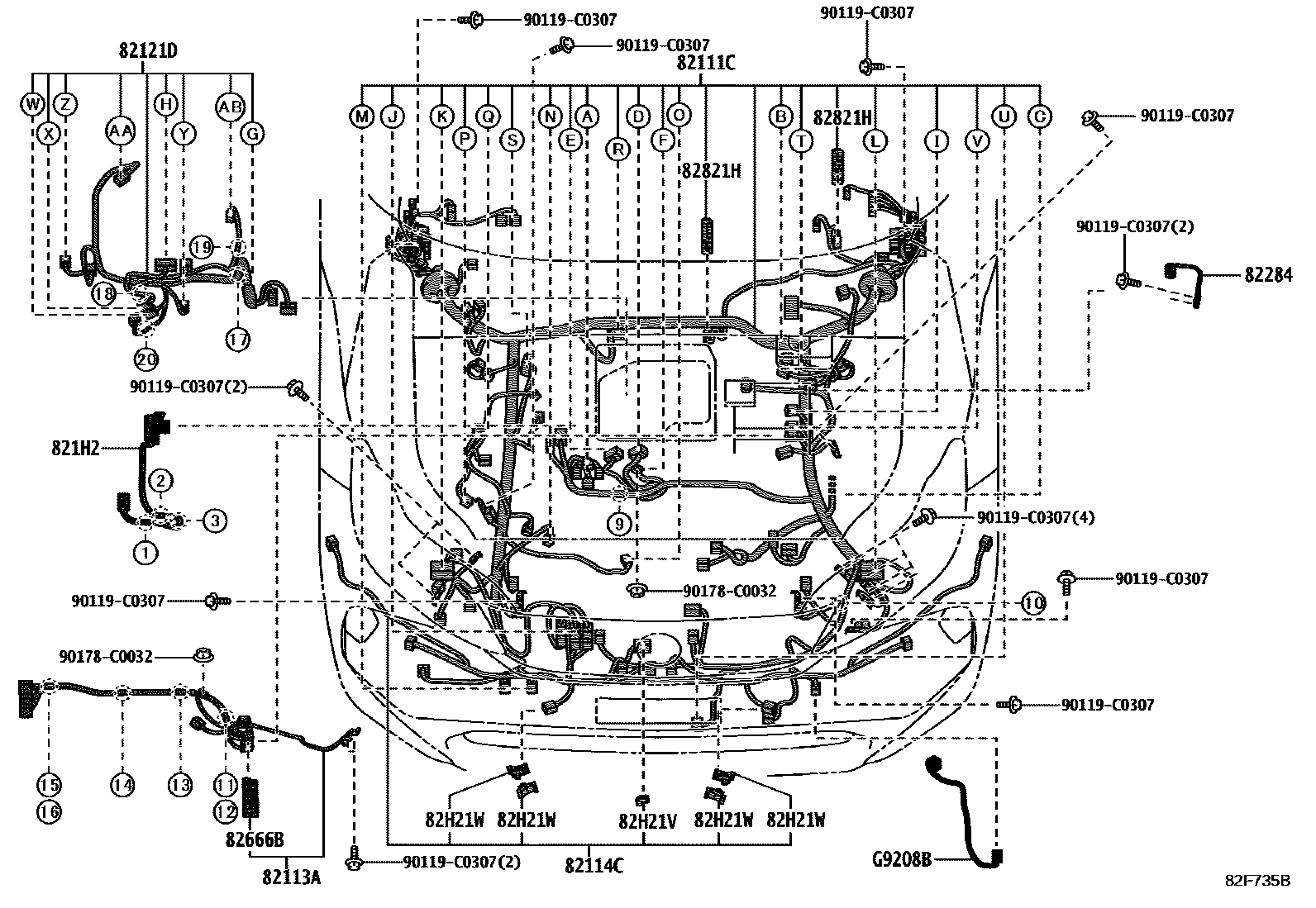

Toyota 561210 — WIRING & CLAMP

82111CWIRE, FRONT COMPARTMENT, MAIN

82113AWIRE, FRONT COMPARTMENT, NO.3

82114CWIRE, FRONT COMPARTMENT, NO.4

82121DWIRE, MOTOR

821H2WIRE, HV AIR CONDITIONER

821H2-0R100

82284WIRE, EARTH

82284-0R080

82666BHOLDER, CONNECTOR NO.3

82821HCOVER, CONNECTOR

82H21VCOVER, CONNECTOR

82H21WCOVER, CONNECTOR

G9208BWIRE SUB-ASSY, INVERTER

90119C0307

90119-C0307

90178C0032

90178-C0032

13 parts on this diagram · 11 diagrams in section

WIRING & CLAMP for Toyota 561210

This section contains 130 genuine Toyota parts for the WIRING & CLAMP system of the Toyota 561210. Key components include: WIRE, FRONT COMPARTMENT, MAIN, WIRE, FRONT COMPARTMENT, NO.3, WIRE, FRONT COMPARTMENT, NO.4, WIRE, MOTOR, WIRE, INSTRUMENT PANEL.
