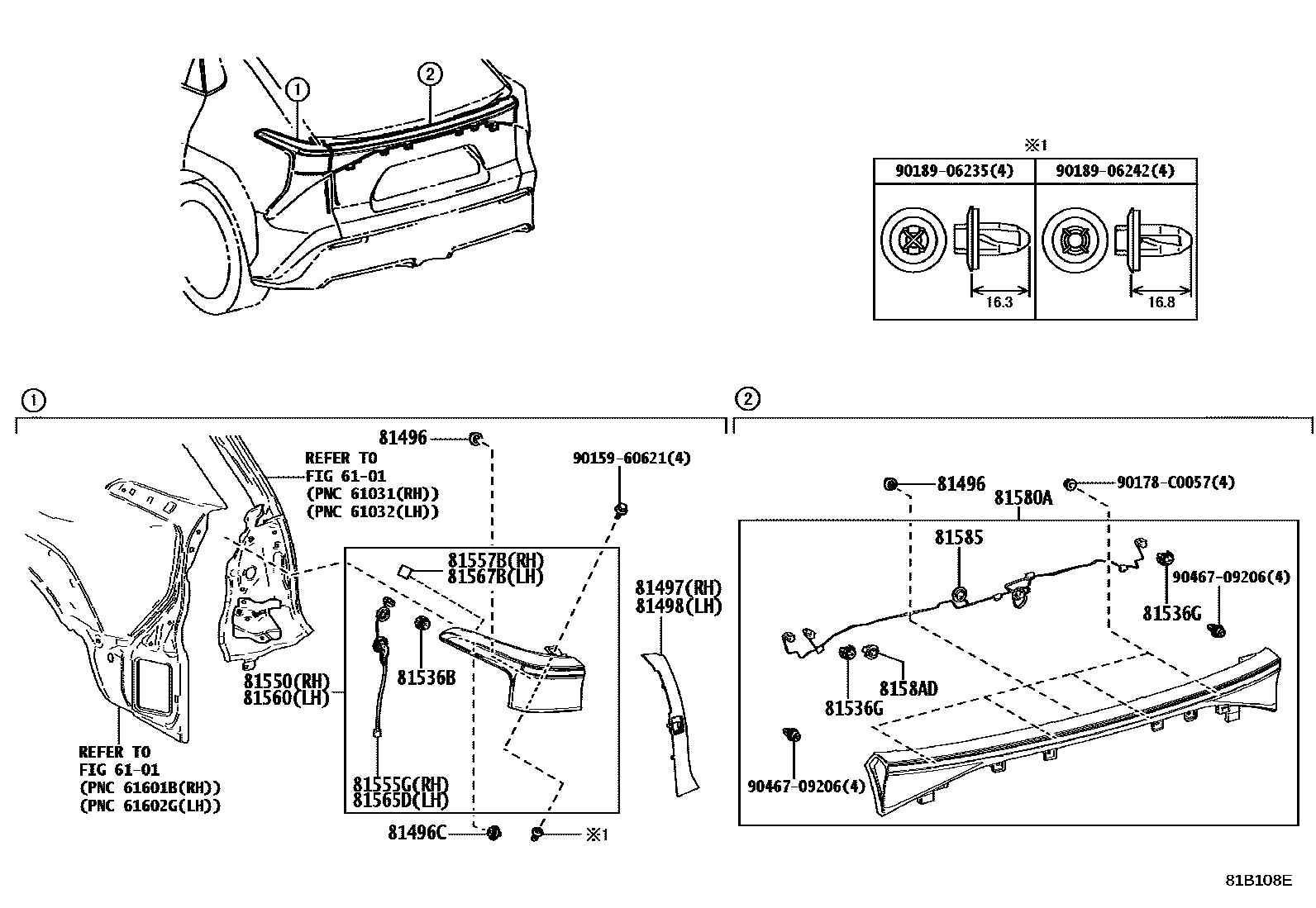

REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-02020iXEAM10,YEAM15202210

(L)

main81496-52020iXEAM10,YEAM15202210

(J)

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iXEAM10,YEAM15202210

TYPE A

main90467-C0019iXEAM10,YEAM15202210

TYPE B

81497COVER, REAR COMBINATION LAMP, RH

main81497-0R050iXEAM10,YEAM15202210

81498COVER, REAR COMBINATION LAMP, LH

main81498-0R050iXEAM10,YEAM15202210

81536BLED, REAR TURN SIGNAL LAMP

main81532-48010iXEAM10,YEAM15202210

81536GLED, BACK-UP LAMP

main81542-48010iXEAM10,YEAM15202210

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0R130iXEAM10,YEAM15202210

81555GCORD, REAR COMBINATION LAMP, RH

main81555-0R130iXEAM10,YEAM15202210

81557BPROTECTOR, REAR COMBINATION LAMP, RH

main81157-0R130iXEAM10,YEAM15202210

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0R130iXEAM10,YEAM15202210

81565DCORD, REAR COMBINATION LAMP, LH

main81555-0R130iXEAM10,YEAM15202210

81567BPROTECTOR, REAR COMBINATION LAMP, LH

main81157-0R130iXEAM10,YEAM15202210

81580ALAMP ASSY, REAR

main81580-0R100iXEAM10,YEAM15202210

81585SOCKET & WIRE, REAR LAMP

main81585-0R100iXEAM10,YEAM15202210

8158ADLED, REAR FOG LAMP

main81584-0R100iXEAM10,YEAM15202210

9015960621

main90159-60621

90178C0057

main90178-C0057

9018906235

main90189-06235

9018906242

main90189-06242

9046709206

main90467-09206

21 parts on this diagram · 1 diagram in section
