REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75124EBRACKET, REAR LICENSE RETANER

main52169-0R110×2iXEAM10,YEAM15202210

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-0R180-A0iXEAM10,YEAM15202210

PLATINUM WHITE PEARL MC.,089 ,2PU

main76801-0R180-B1iXEAM10,YEAM15202210

SILVER ME.,1L0 ,2TX

main76801-0R180-B2iXEAM10,YEAM15202210

DK.GRAY ME.,1L9 ,2WX

main76801-0R180-B3iXEAM10,YEAM15202312

PRECIOUS METAL,1L5 ,2YV

main76801-0R180-C0iXEAM10,YEAM15202210

BLACK MC.,209

main76801-0R180-C1iXEAM10,YEAM15202210

BLACKISH AGEHA GF.,221 ,2WE

main76801-0R180-E0iXEAM10,YEAM15202210-202312

DARK SHERRY M.M.,2WF ,4W4

76812BGARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.2

main76812-0R130iXEAM10,YEAM15202210

76813GARNISH, BACK DOOR OUTSIDE, UPPER RH

main76813-0R050iXEAM10,YEAM15202210

76814GARNISH, BACK DOOR OUTSIDE, UPPER LH

main76814-0R040iXEAM10,YEAM15202210

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-C0033×13iXEAM10,YEAM15202210

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-0R100×2iXEAM10,YEAM15202210

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76825-0R160×2iXEAM10,YEAM15202210

76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2

main76825-0R170×2iXEAM10,YEAM15202210

9010506344

main90105-06344

90105C0409

main90105-C0409

9015960498

main90159-60498

9015960621

main90159-60621

90159C0027

main90159-C0027

9016740057

main90167-40057

9017906362

main90179-06362

9018906242

main90189-06242

90189C0031

main90189-C0031

90467C0033

main90467-C0033

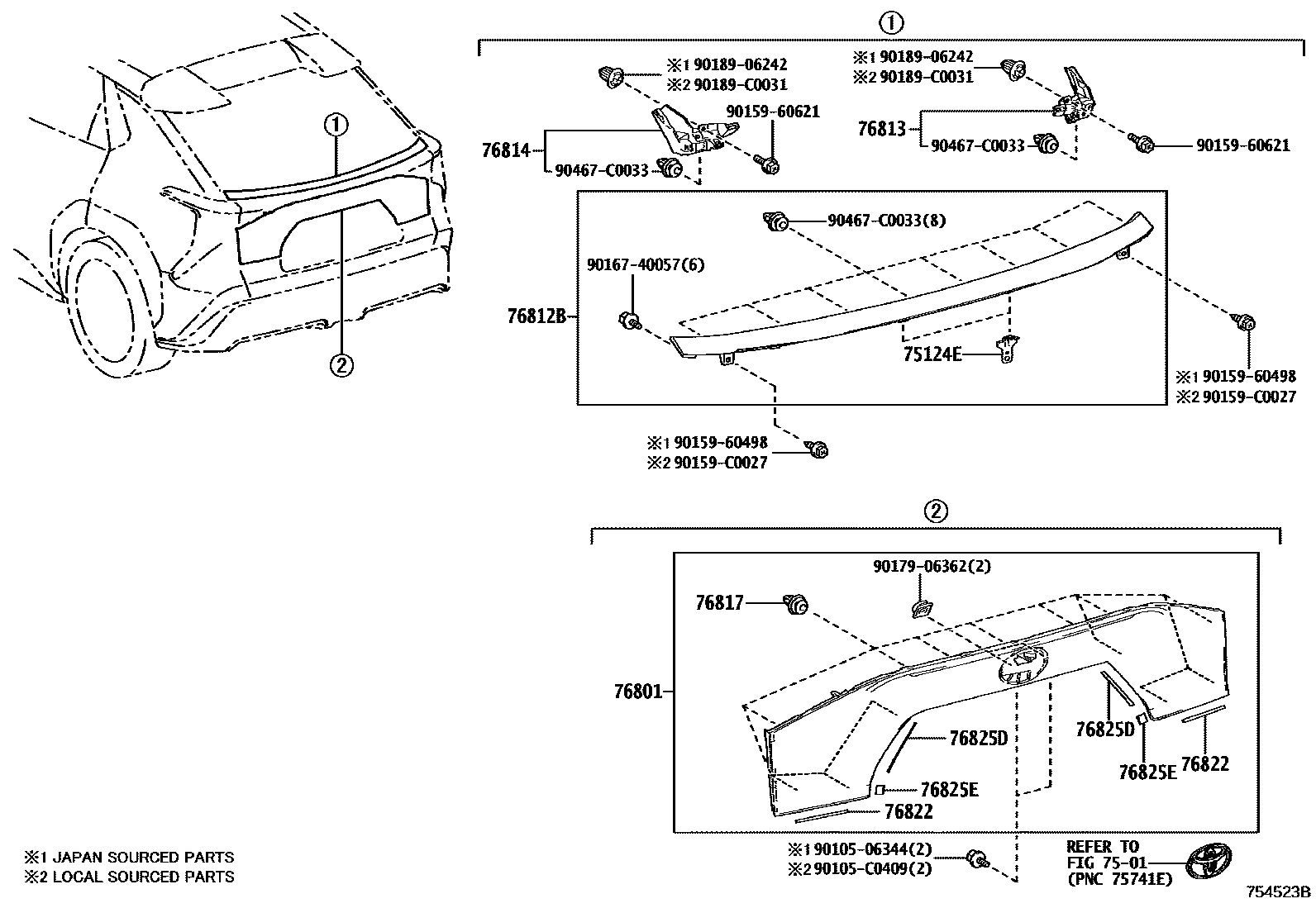

20 parts on this diagram · 1 diagram in section
