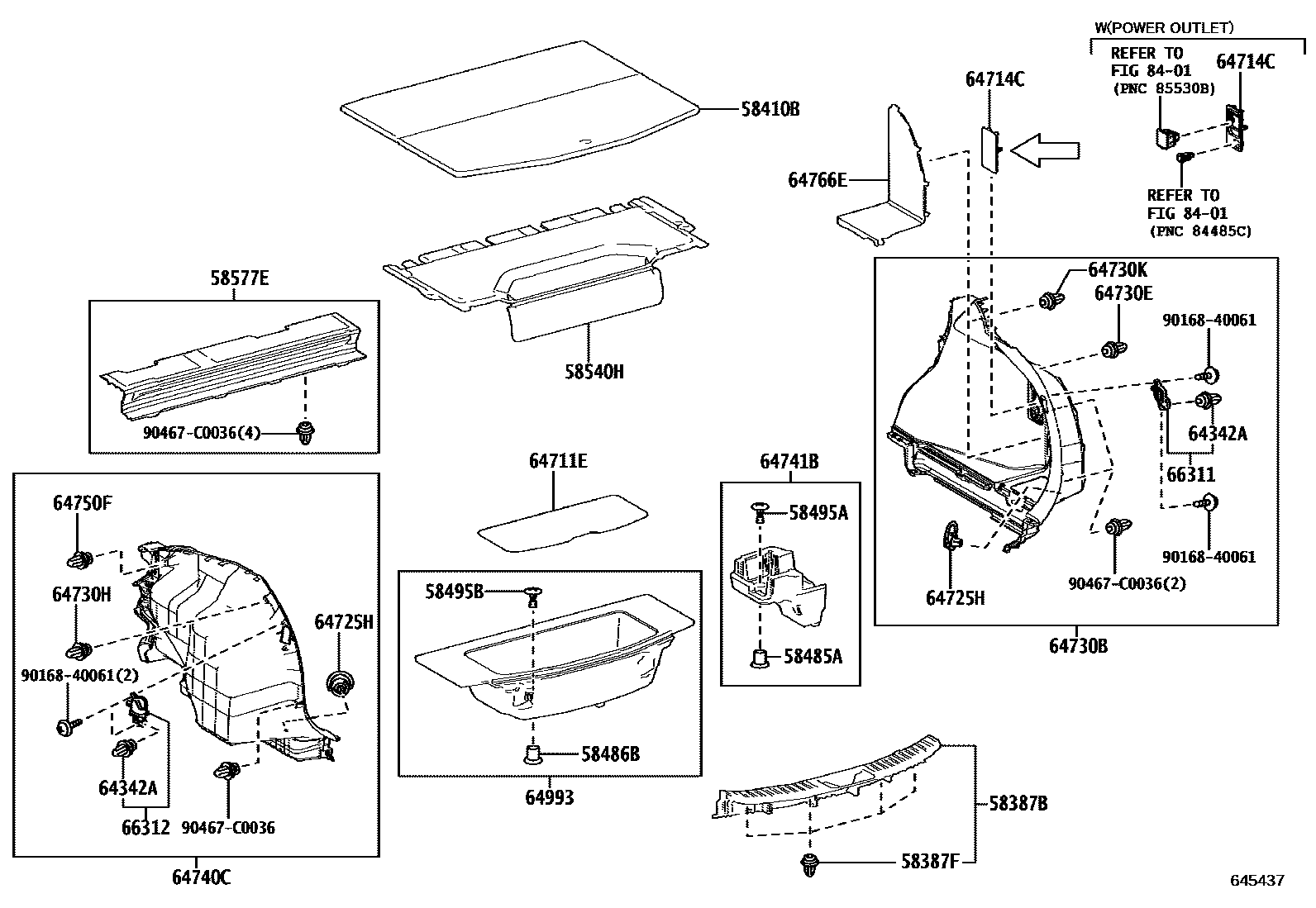

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
58387FCLIP, REAR FLOOR FINISH PLATE
58410BBOARD ASSY, DECK
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
58485APLATE, REAR FLOOR BOARD, UPPER NO.1
58486BPLATE, REAR FLOOR BOARD, UPPER NO.2
58495APLATE, REAR FLOOR BOARD, UPPER NO.3
58495BPLATE, REAR FLOOR BOARD, UPPER NO.3
58540HMAT ASSY, FLOOR, REAR
58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
64342ACLIP
64711EMAT, LUGGAGE COMPARTMENT FLOOR
64714CCOVER, DECK SIDE TRIM, RH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64725HHOOK, QUARTER TRIM,
BLACK,TRIM1#,3#
BLACK,TRIM1#,2#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
COLOR:BLUE
64730HCLIP(FOR DECK TRIM SIDE PANEL)
COLOR:BLUE
64730KCLIP(FOR DECK SIDE TRIM PANEL)
COLOR:RED
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
64741BBOX, DECK SIDE TRIM, RH
64750FCLIP(FOR DECK SIDE TRIM PANEL)
COLOR:RED
64766EBEZEL, JACK COVER, LOWER
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
64993BOX, DECK FLOOR, REAR
66311HOOK, ROPE
BLACK,TRIM1#,3#
BLACK,TRIM1#,2#
66312HOOK, ROPE, NO.2
BLACK,TRIM1#,3#
BLACK,TRIM1#,2#
8401
9016840061
main90168-40061
90467C0036
main90467-C0036
27 parts on this diagram · 1 diagram in section
