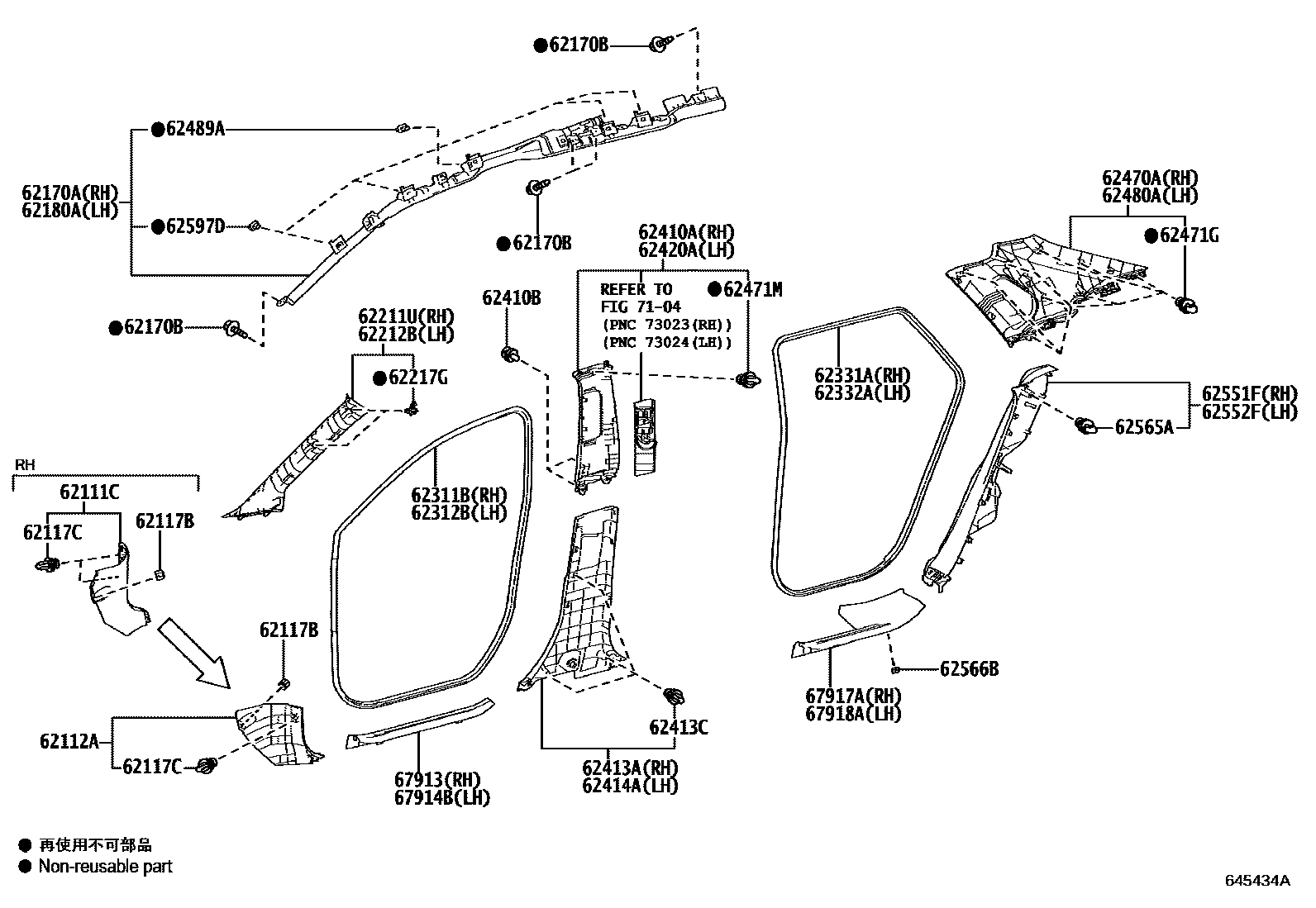

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-0R110-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main62111-0R110-D0iXEAM10,YEAM15..H,M202210

TERRA ROSSA,TRIM3#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-0R110-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main62112-0R110-D0iXEAM10,YEAM15..H,M202210

TERRA ROSSA,TRIM3#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iXEAM10,YEAM15202210

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-C0036×3iXEAM10,YEAM15202210

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0R150iXEAM10,YEAM15202210

62170BBOLT, W/WASHER

main90119-C0107×8iXEAM10,YEAM15202210

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0R150iXEAM10,YEAM15202210

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-0R190-C0iXEAM10,YEAM15..H,M; XEAM10..L202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-0R190-C0iXEAM10,YEAM15..H,M; XEAM10..L202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050×4iXEAM10,YEAM15202210

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0R100iXEAM10,YEAM15202210

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0R100iXEAM10,YEAM15202210

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0R100iXEAM10,YEAM15202210

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0R100iXEAM10,YEAM15202210

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-0R110-C0iXEAM10,YEAM15..H,M; XEAM10..L202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

62410BCLIP

main90467-C0046×4iXEAM10,YEAM15202210

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0R100-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main62413-0R100-D0iXEAM10,YEAM15..H,M202210

TERRA ROSSA,TRIM3#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-C0036×6iXEAM10,YEAM15202210

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0R100-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main62414-0R100-D0iXEAM10,YEAM15..H,M202210

TERRA ROSSA,TRIM3#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-0R110-C0iXEAM10,YEAM15..H,M; XEAM10..L202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0R080-C0iXEAM10,YEAM15..H,M; XEAM10..L202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

62471GCLIP, ROOF SIDE INNER GARNISH

main90467-09245×16iXEAM10,YEAM15202210

62471MCLIP

main90467-C0035×2iXEAM10,YEAM15202210

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0R100-C0iXEAM10,YEAM15..H,M; XEAM10..L202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010×2iXEAM10,YEAM15202210

62551FGARNISH, REAR SEAT SIDE, RH

main62555-0R140-C0iXEAM10,YEAM15..H,M; XEAM10..L202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

62552FGARNISH, REAR SEAT SIDE, LH

main62556-0R150-C0iXEAM10,YEAM15..H,M; XEAM10..L202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main90467-09240×2iXEAM10,YEAM15202210

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-11010×2iXEAM10,YEAM15202210

(J)

main62566-30010×2iXEAM10,YEAM15202210

(L)

62597DCLIP

main90467-18017×8iXEAM10,YEAM15202210

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0R110-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main67913-0R110-D0iXEAM10,YEAM15..H,M202210

TERRA ROSSA,TRIM3#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0R110-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main67914-0R110-D0iXEAM10,YEAM15..H,M202210

TERRA ROSSA,TRIM3#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0R140-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main67917-0R140-D0iXEAM10,YEAM15..H,M202210

TERRA ROSSA,TRIM3#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0R140-C0iXEAM10,YEAM15202210

BLACK,TRIM1#,2#

main67918-0R140-D0iXEAM10,YEAM15..H,M202210

TERRA ROSSA,TRIM3#
