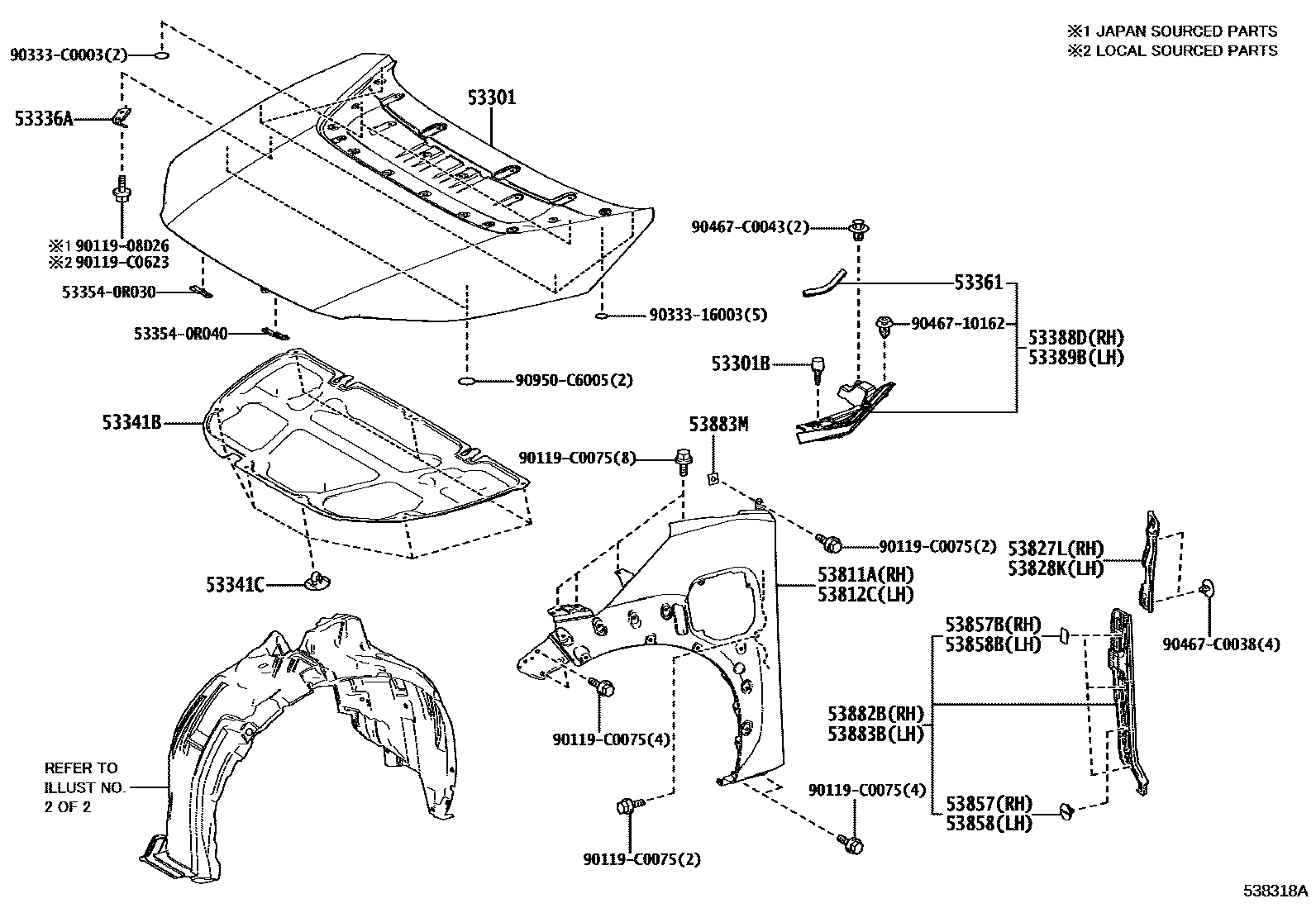

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0R130iXEAM10,YEAM15202210

53301BCUSHION, HOOD BUMPER

main53384-22070×2iXEAM10,YEAM15202210

53336ABRACKET, HOOD STAY

main53336-0R050iXEAM10,YEAM15202210

53341BINSULATOR, HOOD

main53341-0R110iXEAM10,YEAM15202210

53341CCLIP(FOR HOOD INSULATOR)

main90467-C0025×7iXEAM10,YEAM15202210

53361WEATHERSTRIP, HOOD

main53361-0R090×2iXEAM10,YEAM15202210

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0R090iXEAM10,YEAM15202210

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0R090iXEAM10,YEAM15202210

53811APANEL, FRONT FENDER, RH

main53811-0R190iXEAM10,YEAM15202210

53812CPANEL, FRONT FENDER, LH

main53812-0R160iXEAM10,YEAM15202210

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0R100iXEAM10,YEAM15202210

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0R100iXEAM10,YEAM15202210

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-06010iXEAM10,YEAM15202210

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×3iXEAM10,YEAM15202210

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-06010iXEAM10,YEAM15202210

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×3iXEAM10,YEAM15202210

53882BSEAL, FRONT FENDER, RH

main53882-0R080iXEAM10,YEAM15202210

53883BSEAL, FRONT FENDER, LH

main53883-0R030iXEAM10,YEAM15202210

53883MSEAL, FRONT FENDER

main53882-33060×2iXEAM10,YEAM15202210

533540R030GUSSET, HOOD REINFORCEMENT, LH

main53354-0R030

533540R040GUSSET, HOOD REINFORCEMENT, LH

main53354-0R040

9011908D26

main90119-08D26

90119C0075

main90119-C0075

90119C0623

main90119-C0623

9033316003

main90333-16003

90333C0003

main90333-C0003

9046710162

main90467-10162

90467C0038

main90467-C0038

90467C0043

main90467-C0043

90950C6005

main90950-C6005

30 parts on this diagram · 2 diagrams in section
