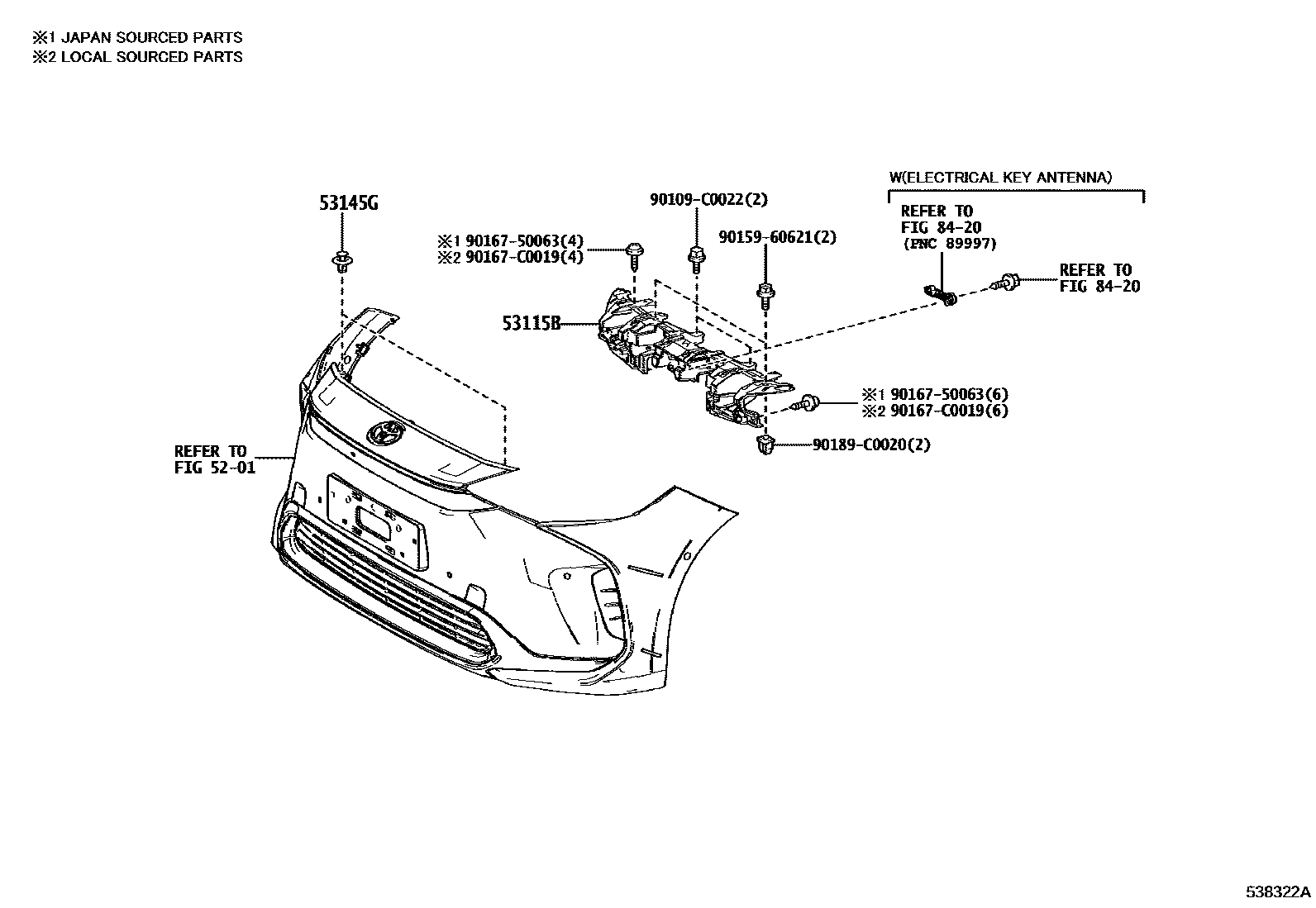

RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53115BBRACKET, RADIATOR GRILLE

main53115-0R070iXEAM10,YEAM15202210

53145GCLIP, RADIATOR GRILLE

main90467-C0017-C0×2iXEAM10,YEAM15202210

BLACK

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

90109C0022

main90109-C0022

9015960621

main90159-60621

9016750063

main90167-50063

90167C0019

main90167-C0019

90189C0020

main90189-C0020

9 parts on this diagram · 1 diagram in section
