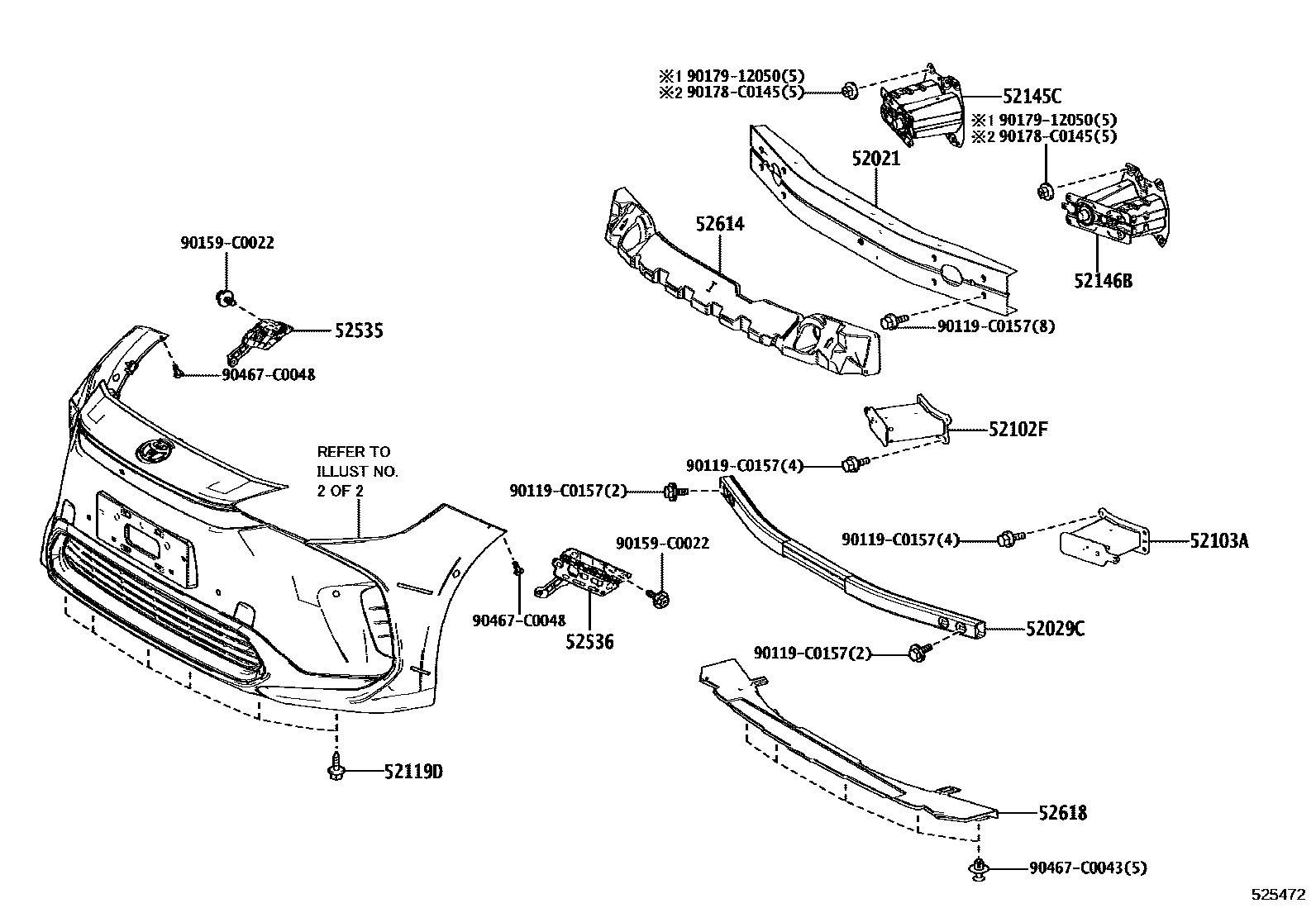

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0R170iXEAM10,YEAM15202210

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-0R080iXEAM10,YEAM15202210

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-0R100iXEAM10,YEAM15202210

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-0R100iXEAM10,YEAM15202210

52119DSCREW, NO.1

main90159-C0049×6iXEAM10,YEAM15202210

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main57107-0R040iXEAM10,YEAM15202210

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main57108-0R040iXEAM10,YEAM15202210

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0R120iXEAM10,YEAM15202210

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0R110iXEAM10,YEAM15202210

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-0R170iXEAM10,YEAM15202210

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0R140iXEAM10,YEAM15202210

90119C0157

main90119-C0157

90159C0022

main90159-C0022

90178C0145

main90178-C0145

9017912050

main90179-12050

90467C0043

main90467-C0043

90467C0048

main90467-C0048

17 parts on this diagram · 2 diagrams in section
