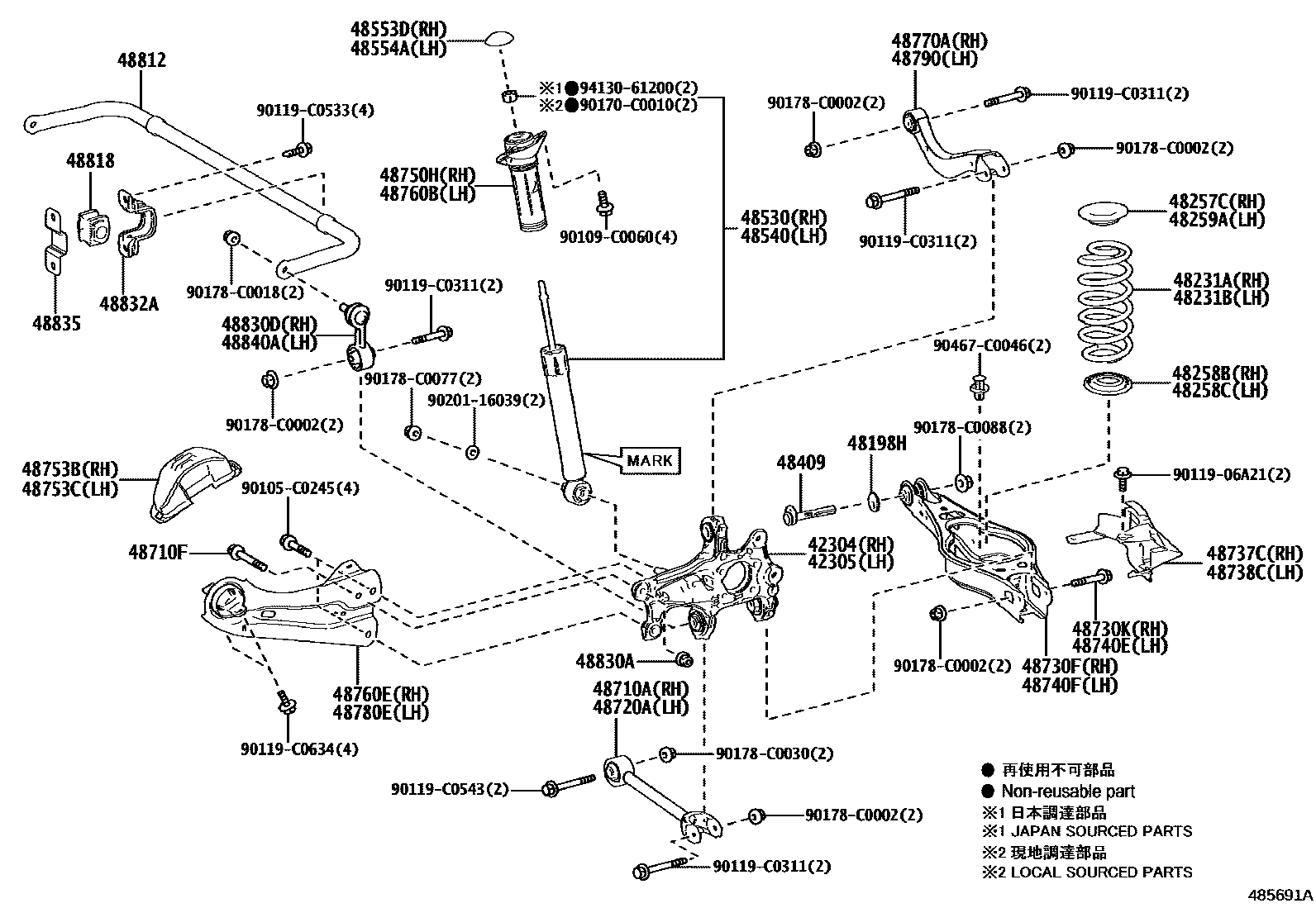

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-0R060iXEAM10,YEAM15202210

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-0R060iXEAM10,YEAM15202210

48198HCAM, CAMBER ADJUST, NO.2

main48198-02020iXEAM10,YEAM15202305

(L)

main48198-47010iXEAM10,YEAM15202210-202305

main48198-47010iXEAM10,YEAM15202305

(J)

48231ASPRING, COIL, REAR RH

main48231-0R640iXEAM10202210

main48231-0R650iYEAM15202210

48231BSPRING, COIL, REAR LH

main48231-0R640iXEAM10202210

main48231-0R650iYEAM15202210

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0R050iXEAM10,YEAM15202210

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06240iXEAM10,YEAM15202210

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06240iXEAM10,YEAM15202210

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0R050iXEAM10,YEAM15202210

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-02010iXEAM10,YEAM15202305

(L)

main48409-47011iXEAM10,YEAM15202210-202305

main48409-47011iXEAM10,YEAM15202305

(J)

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09H80iXEAM10202210

MARK 48530-0R380

main48530-09H90iYEAM15202210

MARK 48530-0R390

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09H80iXEAM10202210

MARK 48530-0R380

main48530-09H90iYEAM15202210

MARK 48530-0R390

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-F4020iXEAM10,YEAM15202210

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-F4020iXEAM10,YEAM15202210

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-0R110iXEAM10,YEAM15202210

48710FBOLT(FOR REAR TRAILING ARM)

main90119-C0537iXEAM10,YEAM15202210

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-0R110iXEAM10,YEAM15202210

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-0R090iXEAM10,YEAM15202210

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-C0310iXEAM10,YEAM15202210

48737CCOVER, LOWER CONTROL ARM, RH NO.2

main48737-0R050iXEAM10,YEAM15202210

48738CCOVER, LOWER CONTROL ARM, LH NO.2

main48738-0R050iXEAM10,YEAM15202210

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-C0310iXEAM10,YEAM15202210

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-0R090iXEAM10,YEAM15202210

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0R020iXEAM10,YEAM15202210

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-0R010iXEAM10,YEAM15202210

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-0R010iXEAM10,YEAM15202210

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-0R020iXEAM10,YEAM15202210

48760EARM ASSY, TRAILING, REAR RH

main48760-0R100iXEAM10,YEAM15202210

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-0R060iXEAM10,YEAM15202210

48780EARM ASSY, TRAILING, REAR LH

main48780-0R100iXEAM10,YEAM15202210

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-0R060iXEAM10,YEAM15202210

48812BAR, STABILIZER, REAR

main48812-0R130iXEAM10,YEAM15202210

48818BUSH, STABILIZER, REAR

main48818-0R110iXEAM10,YEAM15202210

48830ANUT(FOR REAR STABILIZER LINK)

main90178-C0018iXEAM10,YEAM15202210

48830DLINK ASSY, REAR STABILIZER, RH

main48830-0R060iXEAM10,YEAM15202210

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-0R040iXEAM10,YEAM15202210

48835BRACKET, REAR STABILIZER, LOWER

main48835-0R020iXEAM10,YEAM15202210

48840ALINK ASSY, REAR STABILIZER, LH

main48830-0R060iXEAM10,YEAM15202210

90105C0245

main90105-C0245

90109C0060

main90109-C0060

9011906A21

main90119-06A21

90119C0311

main90119-C0311

90119C0533

main90119-C0533

90119C0543

main90119-C0543

90119C0634

main90119-C0634

90170C0010

main90170-C0010

90178C0002

main90178-C0002

90178C0018

main90178-C0018

90178C0030

main90178-C0030

90178C0077

main90178-C0077

90178C0088

main90178-C0088

9020116039

main90201-16039

90467C0046

main90467-C0046

9413061200

main94130-61200

54 parts on this diagram · 1 diagram in section
