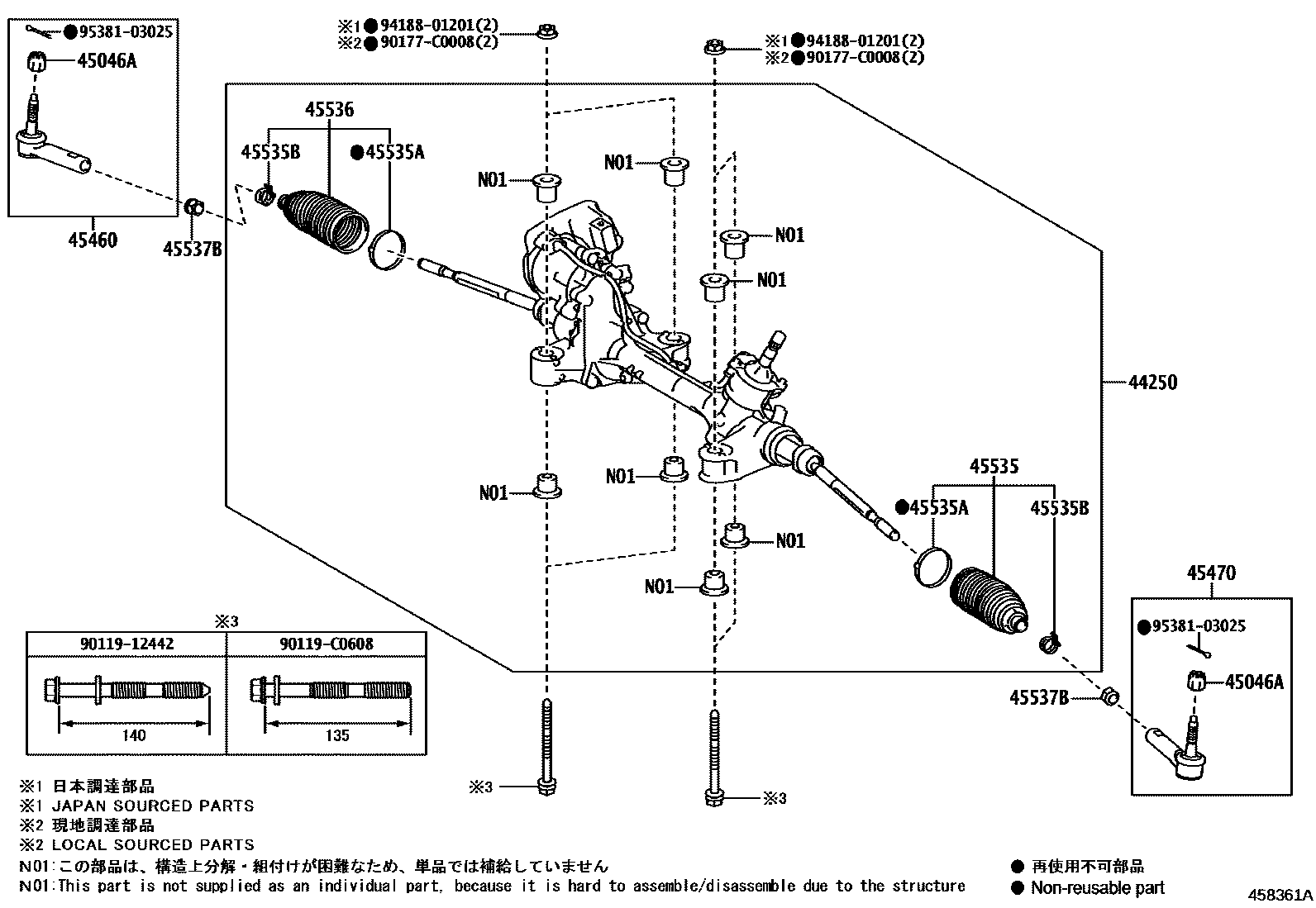

FRONT STEERING GEAR & LINK

0001 1 0002 1STEER BY WIRE

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0R120iXEAM10,YEAM15..L,M202210-202312

main44250-0R121iXEAM10,YEAM15..L,M202312

main44250-0R130iYEAM15..H202210-202312

main44250-0R131iYEAM15..H202312

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12016×2iXEAM10,YEAM15202210

(J)

main90171-C0013×2iXEAM10,YEAM15202210

(L)

45460ROD ASSY, TIE, RH

main45460-09450iXEAM10,YEAM15202210

45470ROD ASSY, TIE, LH

main45460-09450iXEAM10,YEAM15202210

45535BOOT, STEERING RACK, NO.1

main45535-09700iXEAM10,YEAM15202210

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-0R020×2iXEAM10,YEAM15202210

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0R040×2iXEAM10,YEAM15202210

45536BOOT, STEERING RACK, NO.2

main45535-09700iXEAM10,YEAM15202210

45537BNUT, RACK END LOCK

main90178-16001×2iXEAM10,YEAM15202210

(J)

main90178-C0015×2iXEAM10,YEAM15202210

(L)

9011912442

main90119-12442

90119C0608

main90119-C0608

90177C0008

main90177-C0008

9418801201

main94188-01201

9538103025

main95381-03025

14 parts on this diagram · 2 diagrams in section
