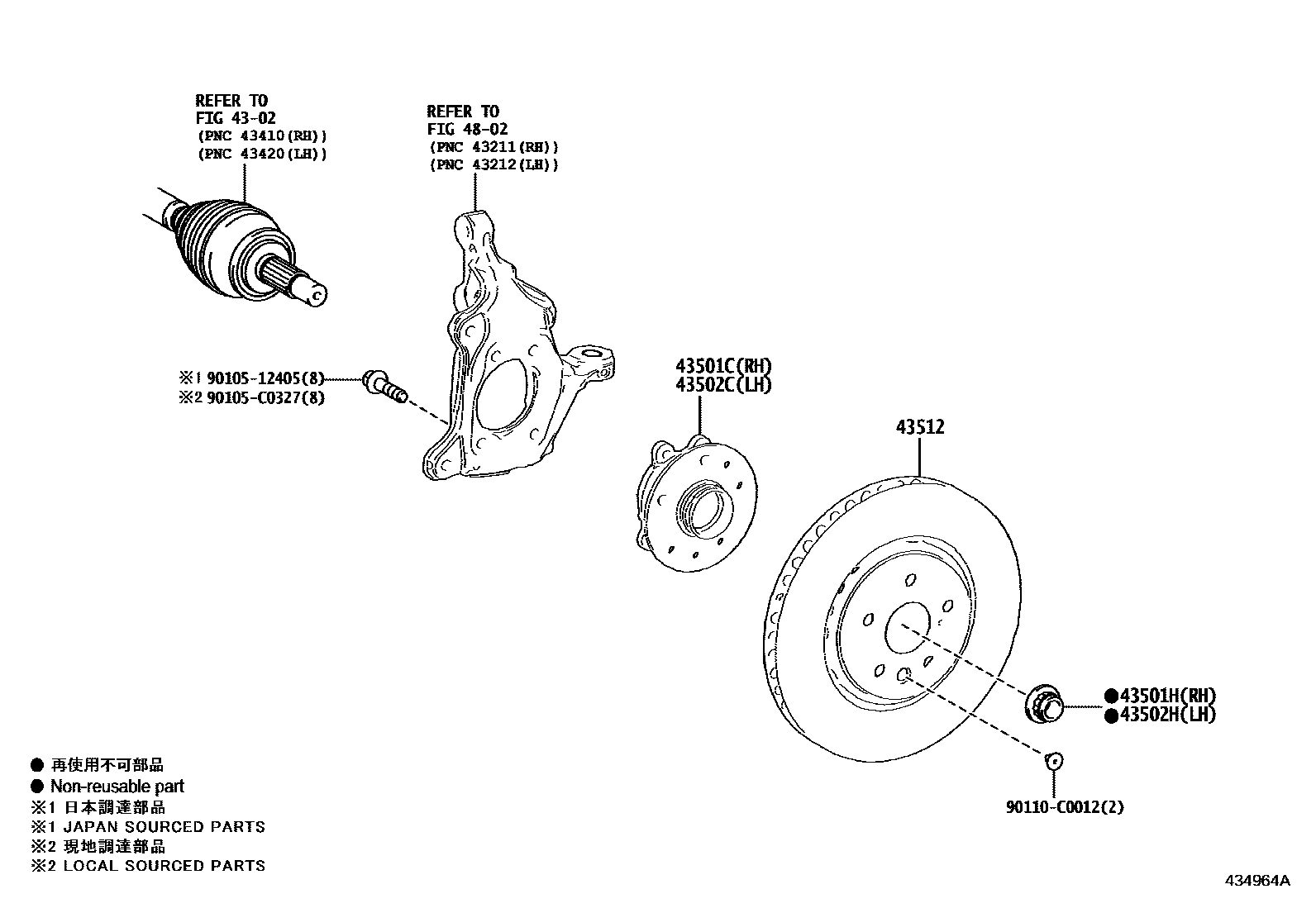

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0R110iXEAM10,YEAM15202210

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-26001iXEAM10,YEAM15202210

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0R110iXEAM10,YEAM15202210

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-26001iXEAM10,YEAM15202210

43512DISC, FRONT

main43512-0R070×2iXEAM10,YEAM15202210

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

90105C0327

main90105-C0327

90110C0012

main90110-C0012

10 parts on this diagram · 1 diagram in section
