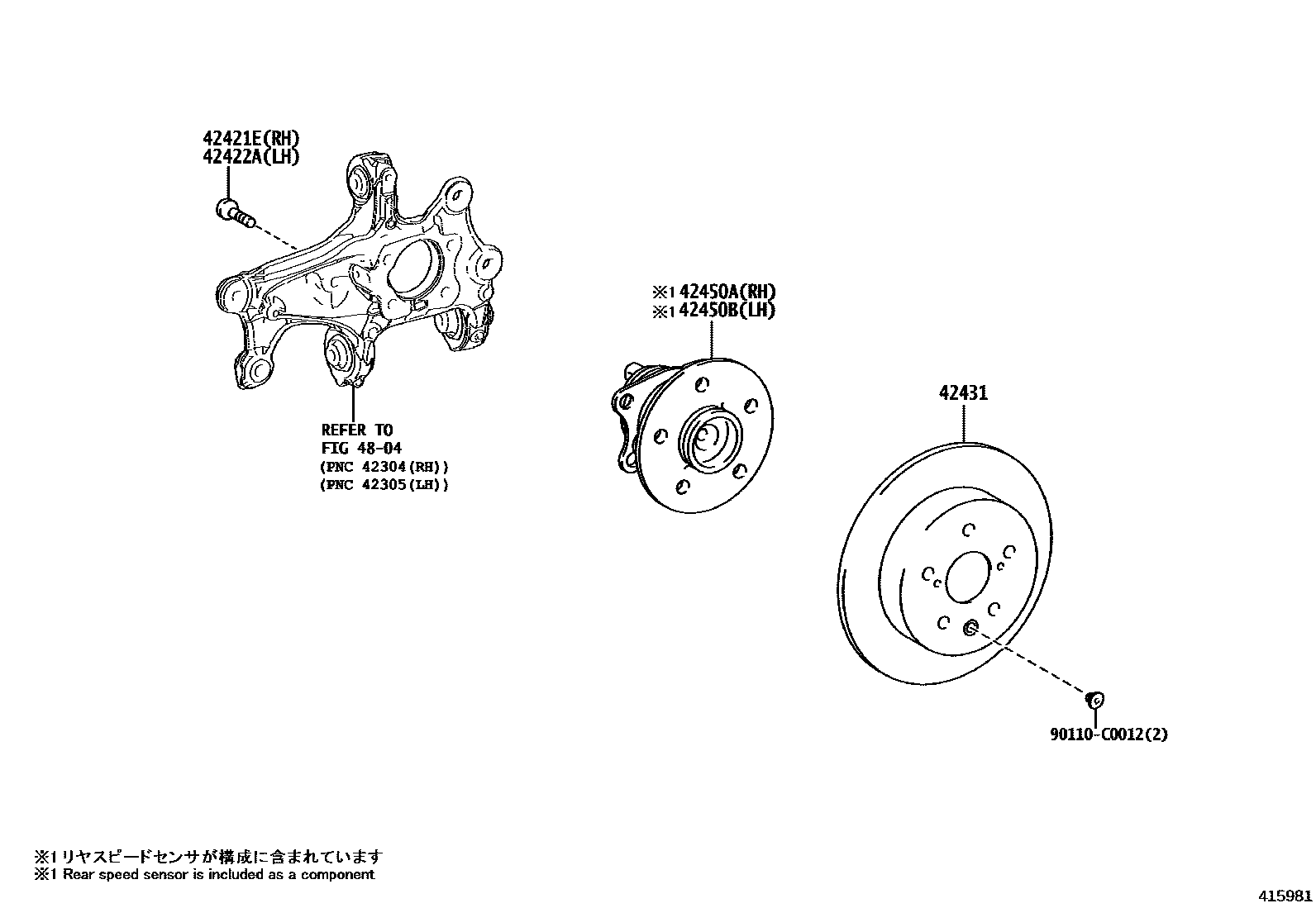

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-C0009iXEAM10,YEAM15202210

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-C0009iXEAM10,YEAM15202210

42431DISC, REAR

main42431-0R060iXEAM10,YEAM15202210

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0R070iYEAM15202210

main42450-0R060iXEAM10202210

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0R070iYEAM15202210

main42450-0R060iXEAM10202210

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

90110C0012

main90110-C0012

7 parts on this diagram · 3 diagrams in section
