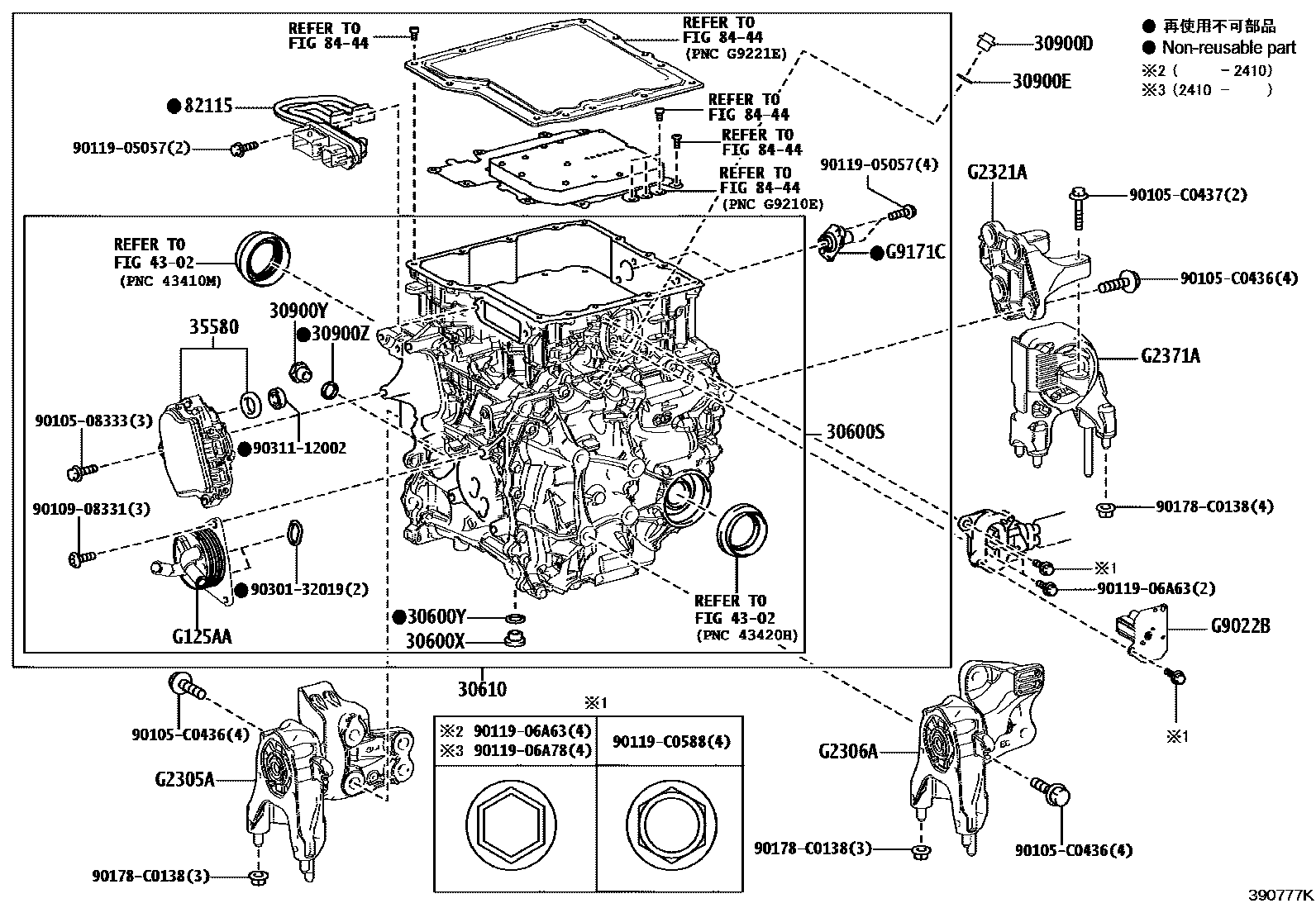

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1FRONT 0002 1REAR

30600STRANSAXLE ASSY, EV W/MOTOR

main30600-42040iXEAM10202210

main30600-42050iYEAM15202210

30600XPLUG, DRAIN(BEV)

main90341-18016iXEAM10,YEAM15202210

30600YGASKET, DRAIN PLUG(BEV)

main90430-18008iXEAM10,YEAM15202210

30610TRANSAXLE ASSY, W/MOTOR & INVERTER

main30610-0R011iXEAM10202210

main30610-0R021iYEAM15202210

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iXEAM10,YEAM15202210

(J)

main90341-C0022iXEAM10,YEAM15202210

(L)

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iXEAM10,YEAM15202210

30900YPLUG, FILLER(BEV)

main90341-18090iXEAM10,YEAM15202210

30900ZGASKET, FILLER PLUG(BEV)

main90430-18008iXEAM10,YEAM15202210

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-42021iXEAM10,YEAM15202210

*614

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

82115WIRE, MOTOR COMPARTMENT, MAIN

main82115-42Q00iXEAM10202210

main82115-42Q10iYEAM15202210

8444INVERTER(BEV OR FCEV)

→ Go to FIG 84-44

G125AACOOLER, MOTOR COOLING

mainG125A42020iXEAM10,YEAM15202210

G2305AINSULATOR SUB-ASSY, MOTOR MOUNTING, RH

mainG23050R020iXEAM10,YEAM15202210-202405

mainG23050R021iXEAM10,YEAM15202406

G2306AINSULATOR SUB-ASSY, MOTOR MOUNTING, LH

mainG23060R020iXEAM10,YEAM15202210-202405

mainG23060R021iXEAM10,YEAM15202406

G2321ABRACKET, MOTOR MOUNTING, REAR

mainG23210R020iXEAM10,YEAM15202210

G2371AINSULATOR, MOTOR MOUNTING, REAR

mainG23710R020iXEAM10,YEAM15202210

G9022BCOVER SUB-ASSY, INVERTER, UPPER

mainG90220R010iXEAM10,YEAM15202210

G9171CPIPE, INVERTER COOLING, NO.1

mainG917142010×2iXEAM10,YEAM15202210

9010508333

main90105-08333

90105C0436

main90105-C0436

90105C0437

main90105-C0437

9010908331

main90109-08331

9011905057

main90119-05057

9011906A63

main90119-06A63

9011906A78

main90119-06A78

90119C0588

main90119-C0588

90178C0138

main90178-C0138

9030132019

main90301-32019

9031112002

main90311-12002

30 parts on this diagram · 2 diagrams in section
