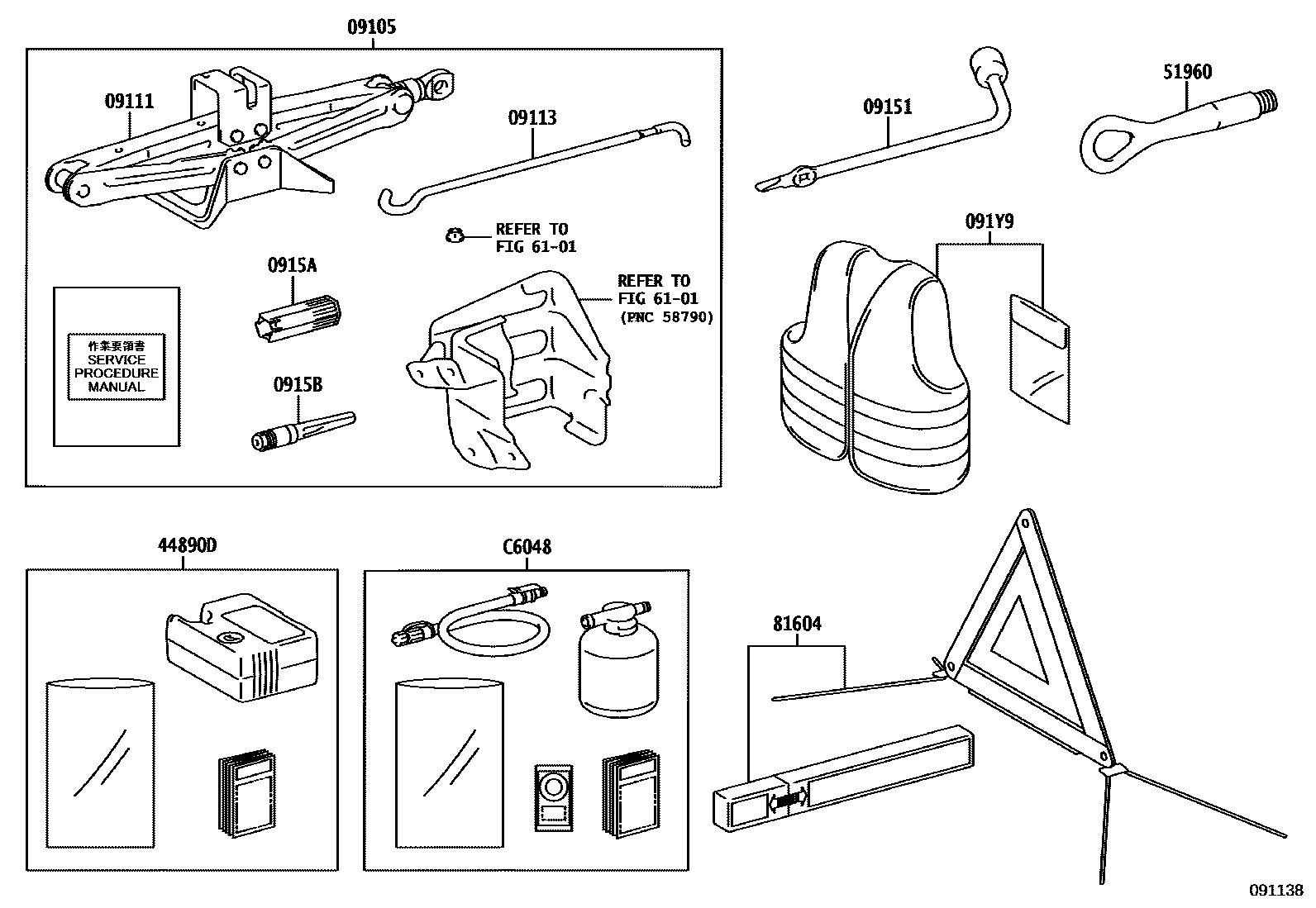

STANDARD TOOL

09105BOX SET, JACK

main09105-0R010iXEAM10,YEAM15202210-202312

main09105-0R011iXEAM10,YEAM15202312

09111JACK SUB-ASSY

main09111-0R070iXEAM10,YEAM15202210

09113HANDLE, JACK

main09113-0R030iXEAM10,YEAM15202210

09151WRENCH, HUB BOLT BOX

main09151-0R010iXEAM10,YEAM15202210

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-0R010iXEAM10,YEAM15202210

0915BPIN, WHEEL GUIDE

main0915B-0R010iXEAM10,YEAM15202210

091Y9JACKET, W/REFLECTOR

main091Y9-02020iXEAM10,YEAM15202210

44890DCOMPRESSOR ASSY, AIR

main44890-0R020iXEAM10,YEAM15202210

51960HOOK ASSY, FRONT

main51961-0R060iXEAM10,YEAM15202210

6101SIDE MEMBER

→ Go to FIG 61-01

81604REFLECTOR SET, TRIANGLE

main81604-02030iXEAM10,YEAM15202210

C6048REPAIR SET, TIRE

main42606-0R030iXEAM10,YEAM15202210

12 parts on this diagram · 1 diagram in section
