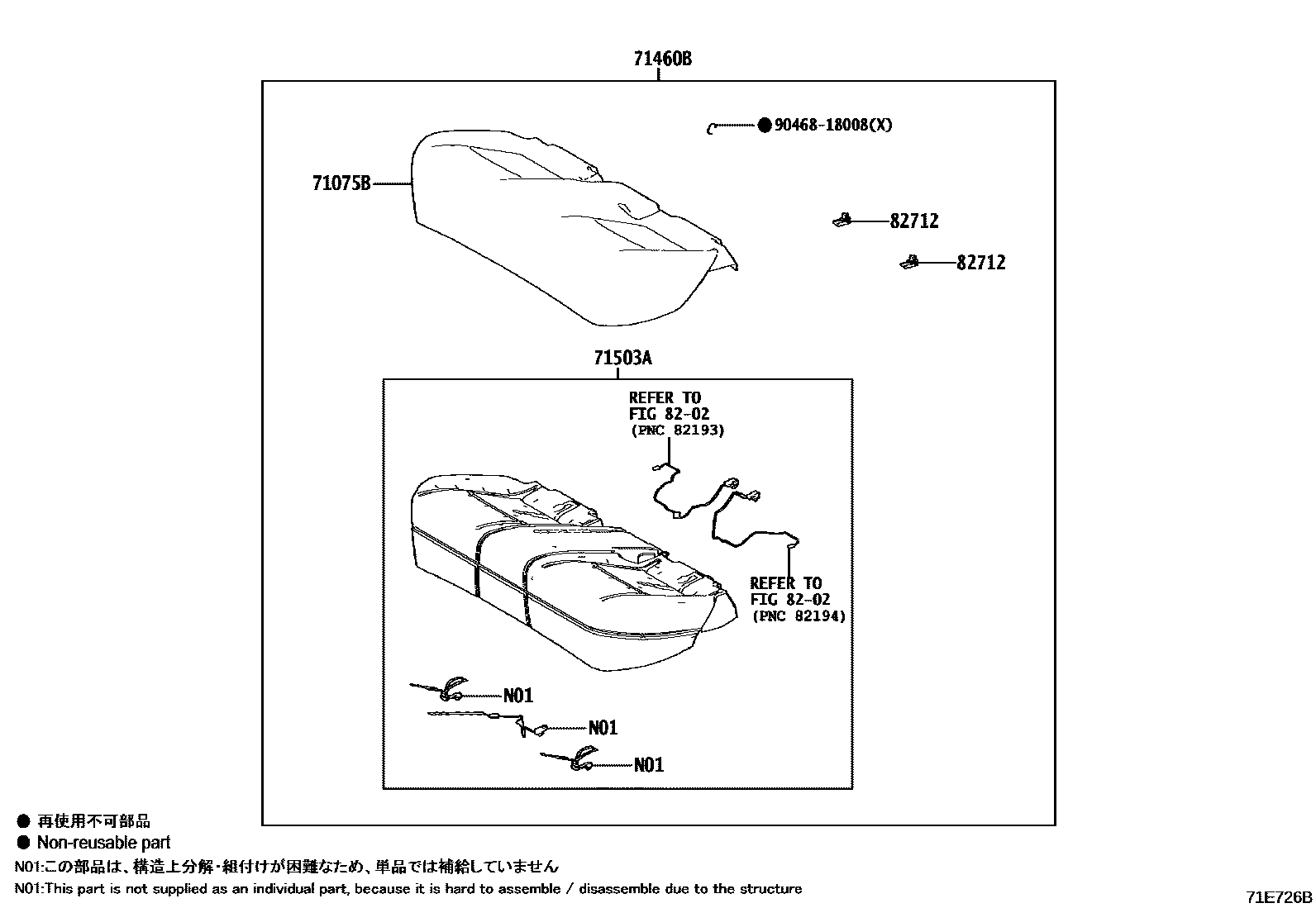

REAR SEAT & SEAT TRACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK,TRIM2#
LT.GRAY NO.094,TRIM3#
FRONT SEAT SLIDE-*DRP:POWER SEAT&SEAT LUMBAR SUPPORT-*DRS:WITH(POWER 2WAY), *PAS:WITHOUT,MD.GRAY NO.208,TRIM1#
MD.GRAY NO.208,TRIM1#,2#
LT.GRAY NO.094,TRIM3#
MD.GRAY NO.208,TRIM1#,2#
BLACK/DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
FRONT SEAT SLIDE-WITH(*DRP:POWER SEAT)&SEAT LUMBAR SUPPORT-*DRS:WITH(POWER 2WAY),*PAS:WITHOUT,DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
LT.GRAY,TRIM1#
MD.GRAY,TRIM3#
BLACK,TRIM2#
FRONT SEAT SLIDE-*DRP:POWER SEAT&SEAT LUMBAR SUPPORT-*DRS:WITH(POWER 2WAY), *PAS:WITHOUT,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
MD.GRAY,TRIM3#
FRONT SEAT SLIDE-WITH(*DRP:POWER SEAT)&SEAT LUMBAR SUPPORT-*DRS:WITH(POWER 2WAY),*PAS:WITHOUT
71503APAD SUB-ASSY, REAR SEAT CUSHION
8202
82712CLAMP, WIRING HARNESS
9046818008
main90468-18008
6 parts on this diagram · 3 diagrams in section
