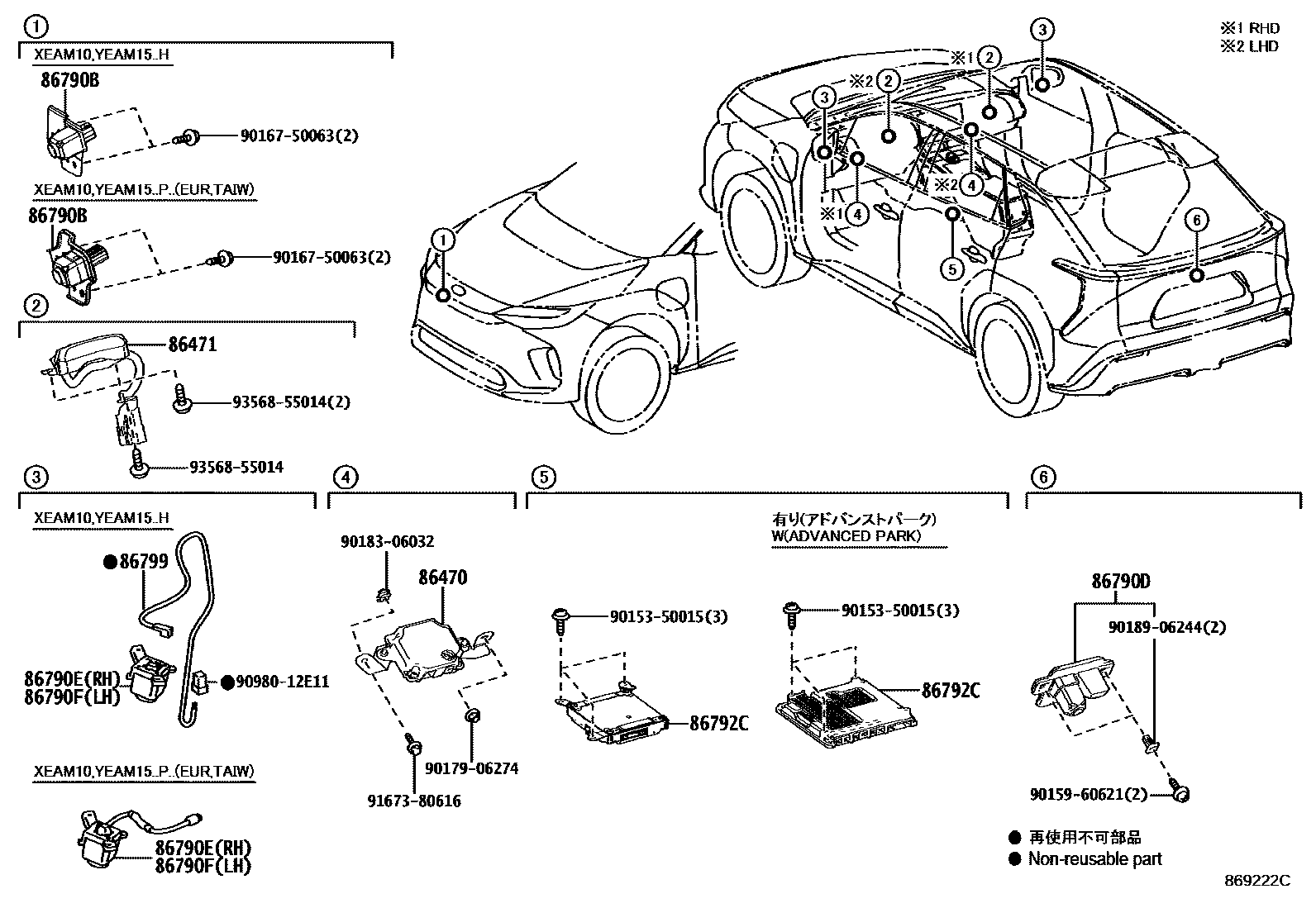

CAMERA & REAR MONITOR DISPLAY
86470COMPUTER ASSY, DRIVER MONITOR
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)&LANE KEEPING SYSTEM-WITH(TOUCH &EDSS)&REAR & REAR SIDE MONITOR-WITH(*ARFHL&*LC & SAFE EXIT ASSIST)
86471CAMERA, DRIVER MONITOR
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)&LANE KEEPING SYSTEM-WITH(TOUCH &EDSS)&REAR & REAR SIDE MONITOR-WITH(*ARFHL&*LC & SAFE EXIT ASSIST)
86790BCAMERA ASSY, TELEVISION, FR
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
86790DCAMERA ASSY, TELEVISION, RR
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
86790ECAMERA ASSY, TELEVISION, SIDE RH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
86790FCAMERA ASSY, TELEVISION, SIDE LH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
86792CCOMPUTER, PARKING ASSIST
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
86799WIRE, TELEVISION CAMERA
9015350015
main90153-50015
9015960621
main90159-60621
9016750063
main90167-50063
9017906274
main90179-06274
9018306032
main90183-06032
9018906244
main90189-06244
9098012E11
main90980-12E11
9167380616
main91673-80616
9356855014
main93568-55014
17 parts on this diagram · 1 diagram in section
