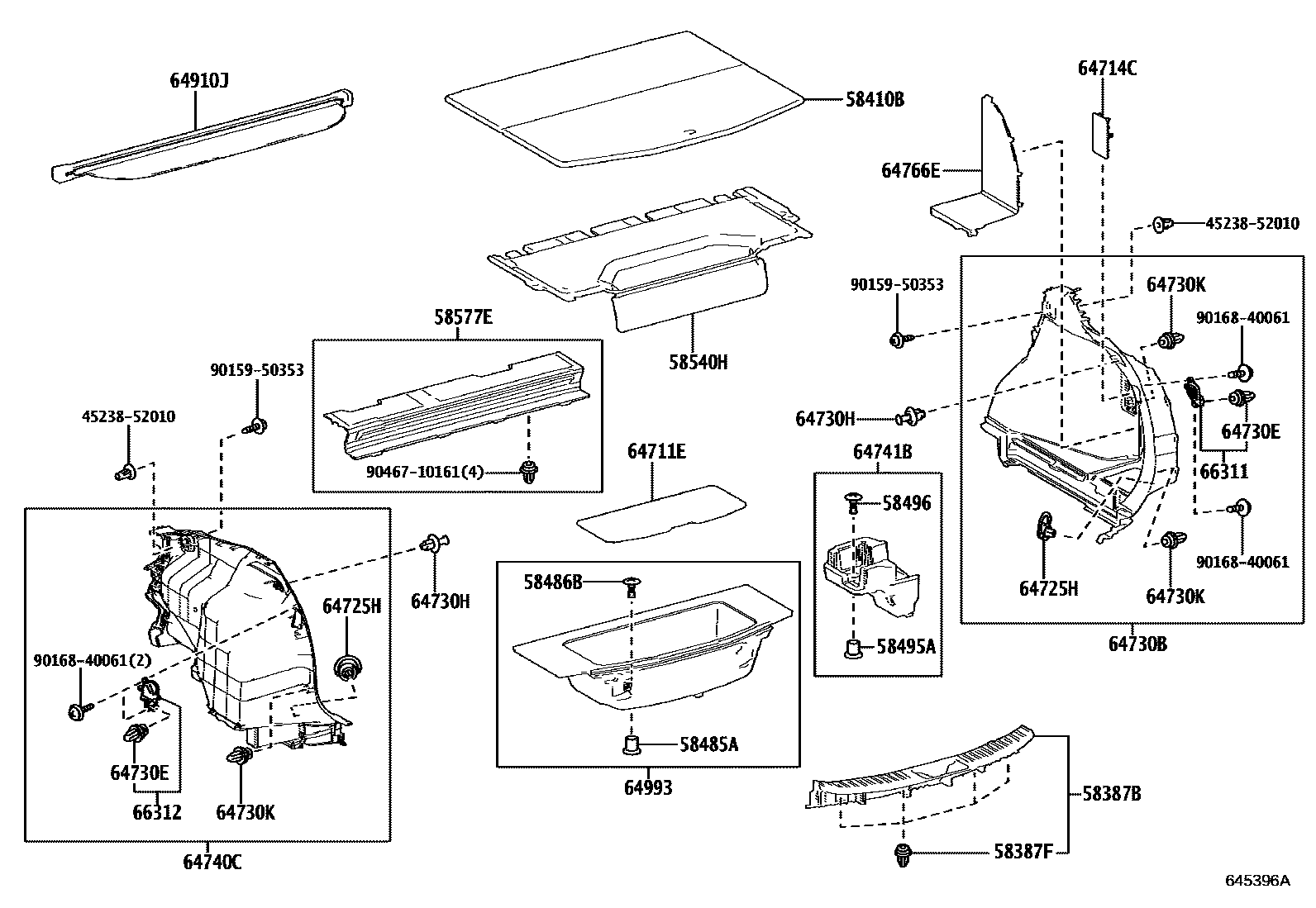

DECK BOARD & DECK TRIM COVER

0001 1 0002 1W(JBL SPEAKER)

58387BPLATE, REAR FLOOR FINISH

main58387-42110-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM1#,2#

main58387-42110-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM2#

58387FCLIP, REAR FLOOR FINISH PLATE

main90467-10161iXEAM10,YEAM15202203-202411

58410BBOARD ASSY, DECK

main58410-42140-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

main58410-42140-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

58485APLATE, REAR FLOOR BOARD, UPPER NO.1

main55229-48020iXEAM10,YEAM15202203-202411

58486BPLATE, REAR FLOOR BOARD, UPPER NO.2

main55239-48020iXEAM10,YEAM15202203-202411

58495APLATE, REAR FLOOR BOARD, UPPER NO.3

main55229-48020iXEAM10,YEAM15202203-202411

58496PLATE, REAR FLOOR BOARD, UPR NO.4

main55239-48020iXEAM10,YEAM15202203-202411

58540HMAT ASSY, FLOOR, REAR

main58513-42030iXEAM10,YEAM15202203-202411

58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1

main58577-42090-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM1#,2#

main58577-42090-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

64711EMAT, LUGGAGE COMPARTMENT FLOOR

main64711-42010iXEAM10,YEAM15202203-202411

64714CCOVER, DECK SIDE TRIM, RH

main64714-42120-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

main64714-42120-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM1#,2#

64725HHOOK, QUARTER TRIM,

main66301-42040iYEAM15..RHD..M202203-202303

main66301-42040-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

main66301-42040-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM1#,2#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-42290-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

main64730-42290-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-10188iXEAM10,YEAM15202203-202411

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-07214iXEAM10,YEAM15202203-202411

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iXEAM10,YEAM15202203-202411

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-42120-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM1#,2#

main64740-42120-C0iXEAM10..TAIW;XEAM10,YEAM15..H..EUR202203-202411

BLACK,TRIM2#

main64740-42130-C0iYEAM15..ARL202311-202411

BLACK,TRIM1#,2#

main64740-42130-C0iYEAM15..ARL202412

SPEAKER-JBL,BLACK,TRIM2#

main64740-42130-C0iYEAM15..ARL202412

SPEAKER-JBL,BLACK,TRIM1#,2#

64741BBOX, DECK SIDE TRIM, RH

main64741-42020iXEAM10,YEAM15202203-202411

64766EBEZEL, JACK COVER, LOWER

main64766-42050-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

main64766-42050-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

64910JCOVER ASSY, TONNEAU

main64910-42100-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM2#

main64910-42100-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

64993BOX, DECK FLOOR, REAR

main64993-42030iXEAM10,YEAM15202203-202411

66311HOOK, ROPE

main66301-42020iYEAM15..RHD..M202203-202303

main66301-42020-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM1#,2#

main66301-42020-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM2#

66312HOOK, ROPE, NO.2

main66301-42030iYEAM15..RHD..M202203-202303

main66301-42030-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

main66301-42030-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

4523852010CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010

9015950353

main90159-50353

9016840061

main90168-40061

9046710161

main90467-10161

27 parts on this diagram · 2 diagrams in section
