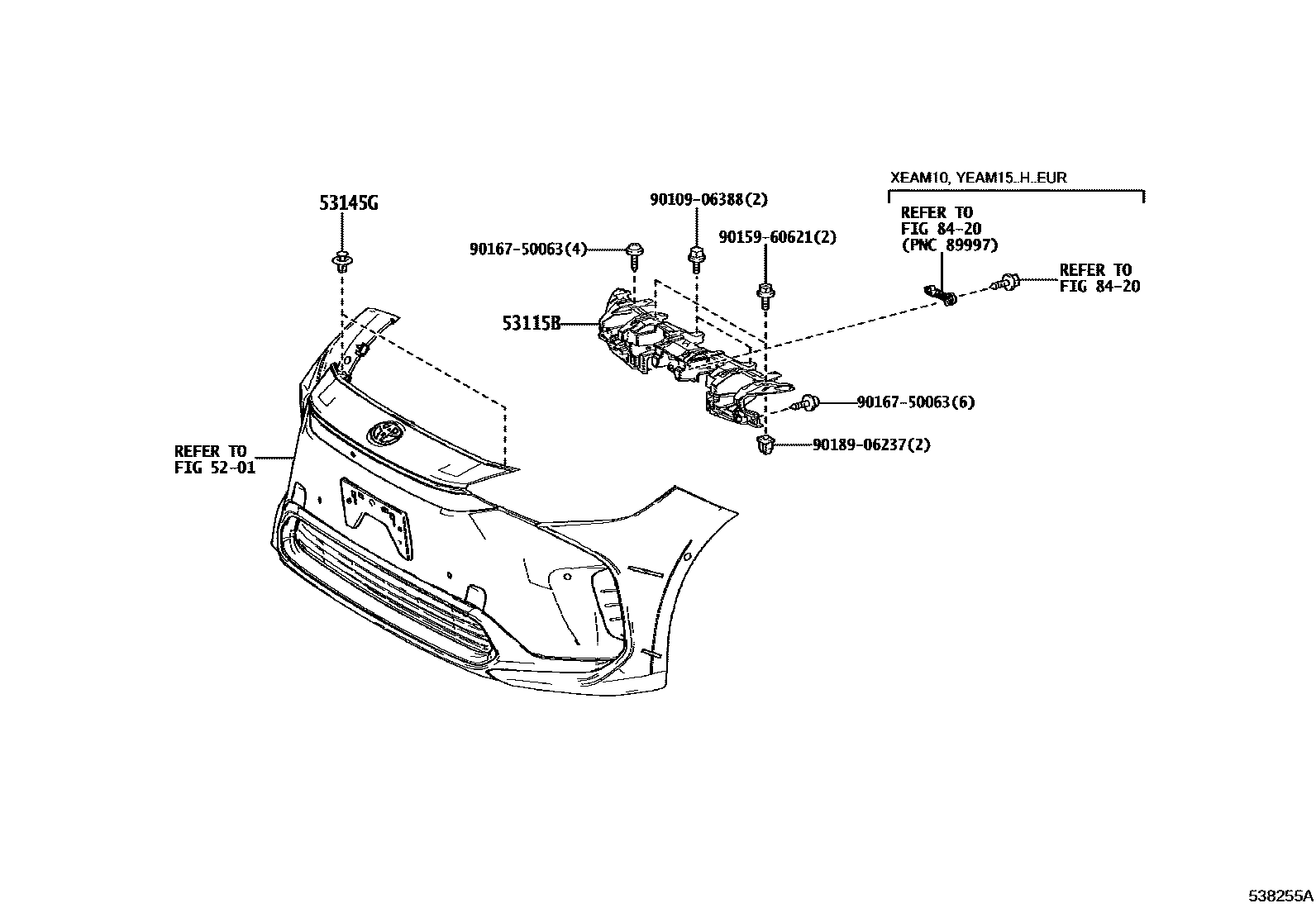

RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53115BBRACKET, RADIATOR GRILLE

main53115-42040iXEAM10,YEAM15202412

53145GCLIP, RADIATOR GRILLE

main90467-05063-C0×2iXEAM10,YEAM15202412

BLACK

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9010906388

main90109-06388

9015960621

main90159-60621

9016750063

main90167-50063

9018906237

main90189-06237

8 parts on this diagram · 1 diagram in section
