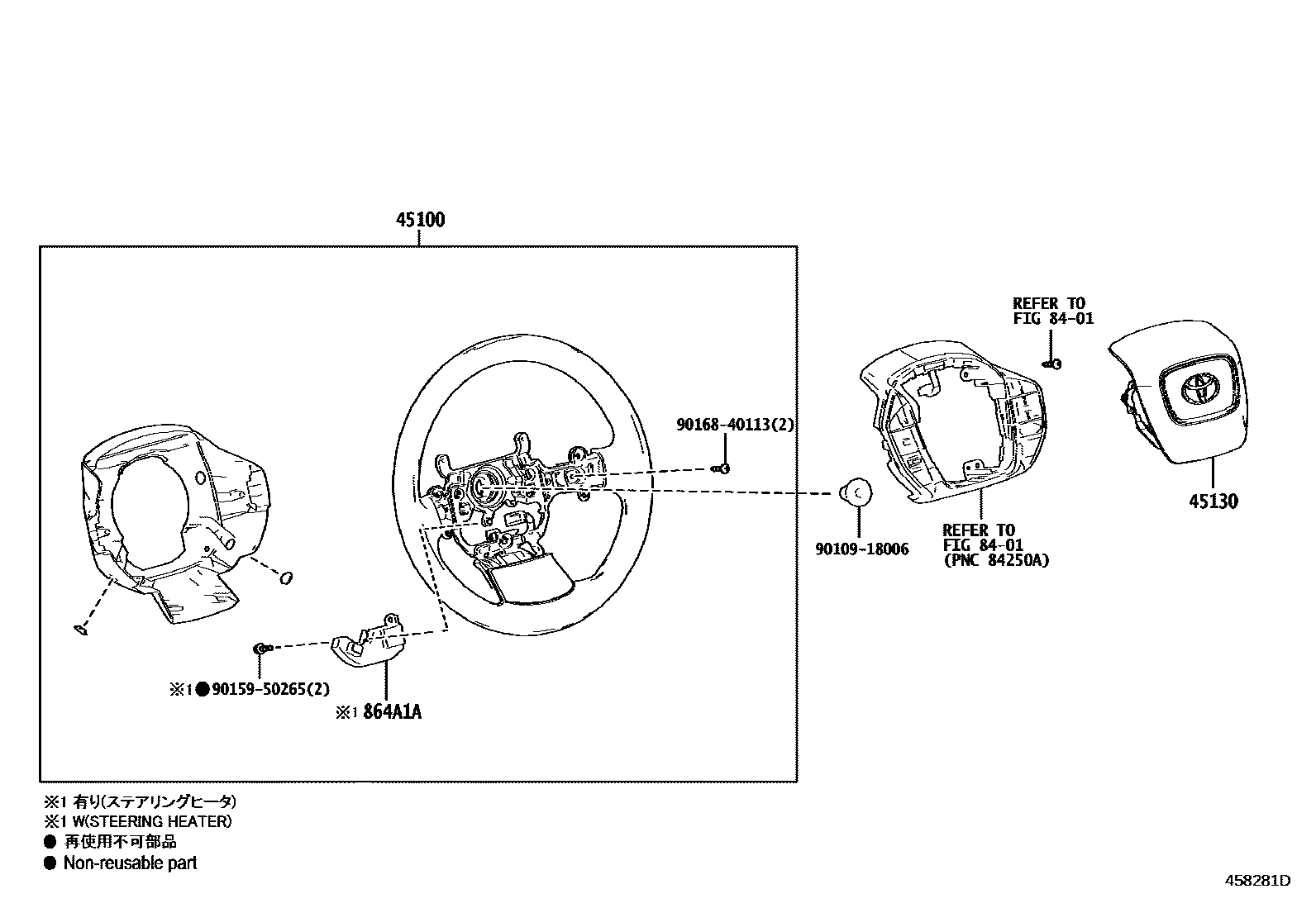

45100WHEEL ASSY, STEERING

main45100-42460-C0supersedes 45100-42450-C0i202412

3-SPOKE,LEATHER,BLACK,TRIM1#,2#; 3-SPOKE,LEATHER,HONG KONG SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&REAR& REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST),BLACK,TRIM1#,2#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM1#,2#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM2#

main45100-42770-C0i202412

3-SPOKE,LEATHER,BLACK,TRIM1#,2#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&REAR & REAR SIDE MONITOR-WITH(*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,TRIM2#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM1#,2#

main45100-42450-C0supersedes 45100-42760-C0i202412

3-SPOKE,LEATHER,BLACK,TRIM1#,2#; 3-SPOKE,LEATHER,BLACK,TRIM2#; 3-SPOKE,LEATHER,HONG KONG SPEC&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST),BLACK,TRIM1#,2#

main45100-42760-C0i202412

3-SPOKE,LEATHER,BLACK,TRIM1#,2#; 3-SPOKE,LEATHER,REAR & REAR SIDE MONITOR-WITH(*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-42360-C0i202412

BLACK,TRIM1#,2#; BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-78020supersedes 864A1-78040i202311-202411

main864A1-78040i202412

STEERING WHEEL-LEATHER, WITH(STEERING HEATER); STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&REAR & REAR SIDE MONITOR-WITH(*ARFHL&*LC & SAFE EXIT ASSIST)

main864A1-78030i202412

HONG KONG SPEC&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST); REAR & REAR SIDE MONITOR-WITH(*ARFHL&*LC & SAFE EXIT ASSIST)

9010918006

main90109-18006

9015950265

main90159-50265

9016840113

main90168-40113
