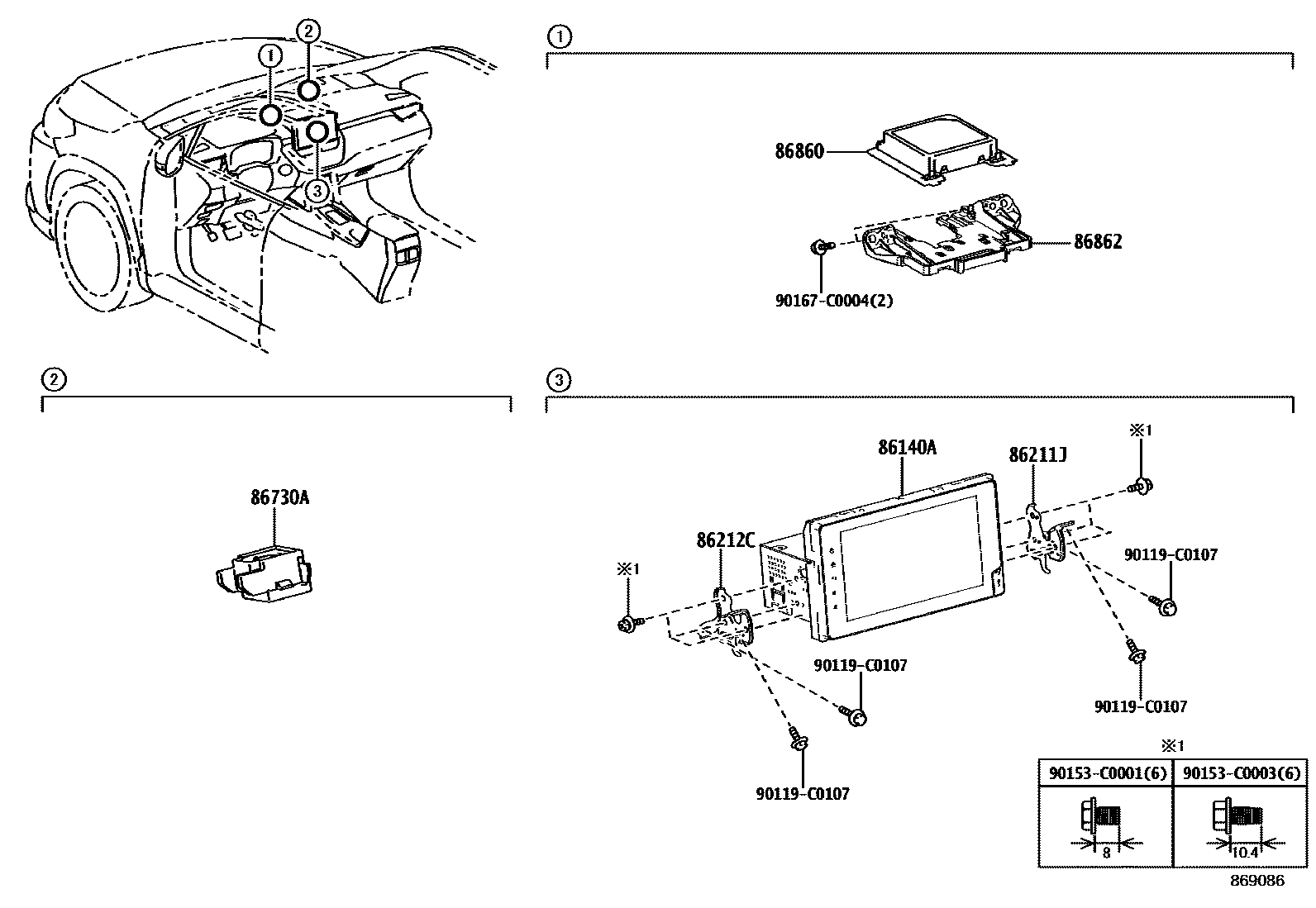

NAVIGATION & FRONT MONITOR DISPLAY

0001 18INCH DISPLAY 0002 19INCH DISPLAY 0003 110.25INCH DISPLAY 0004 110.25INCH DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-0A020iMXGA10..A,E202201-202204

DENSO TEN

main86100-0A021iMXGA10..A,E202205-202208

DENSO TEN

main86100-0A022iMXGA10..A,E202209-202304

DENSO TEN

main86100-0A041iMXGA10..E202304-202306

DESAY

main86100-0A042iMXGA10..E202307

DESAY

main86100-0A062iMXGH10..E202307

DESAY

main86140-0A260iMXGA10..G,J,N202201-202304

DESAY

main86140-0A371iMXGA10..A,G,J,N202304-202306

HANGSHENG

main86140-0A372iMXGA10,MXGH10..J,N202307

HANGSHENG

main86140-0A530iMXGA10,MXGH10..A,G202407

HANGSHENG

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-02620iMXGA10202201-202304

main86211-02730iMXGA10,MXGH10202304-202310

main86211-02770iMXGA10,MXGH10202311

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-02620iMXGA10202201-202304

main86212-02730iMXGA10,MXGH10202304-202310

main86212-02750iMXGA10,MXGH10202311

86730AMICROPHONE ASSY, TELEPHONE

main86730-0A020iMXGA10..A,E; MXGA10..G,J,N202201-202304

86860ANTENNA ASSY, NAVIGATION

main86880-02040iMXGA10202201-202304

main86880-02100iMXGA10,MXGH10202304

86862BRACKET, NAVIGATION ANTENNA

main86862-02020iMXGA10202201-202304

main86862-42010iMXGA10,MXGH10202304

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90153C0003

main90153-C0003

90167C0004

main90167-C0004

10 parts on this diagram · 4 diagrams in section
