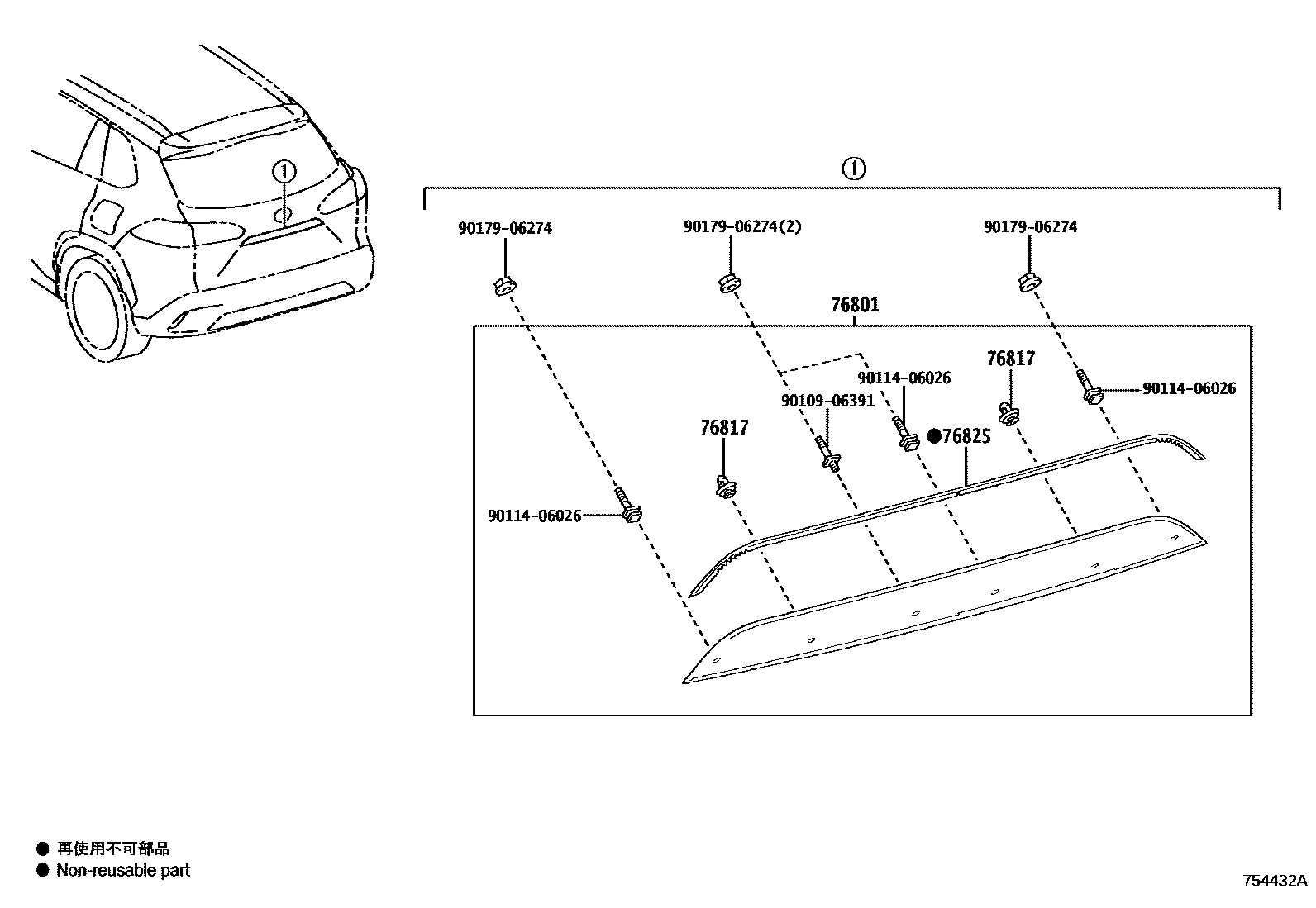

REAR MOULDING

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-0A909iMXGA10,MXGH10..J,N202304

PAINT REQ.

main76801-0A910iMXGA10..A,E,G202201-202304

PAINT REQ.

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206×2iMXGA10,MXGH10202304

(J)

main90467-C0033×2iMXGA10202201-202304

(L)

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0A040iMXGA10202201-202304

9010906391

main90109-06391

9011406026

main90114-06026

9017906274

main90179-06274

6 parts on this diagram · 1 diagram in section
