FRONT SEAT & SEAT TRACK

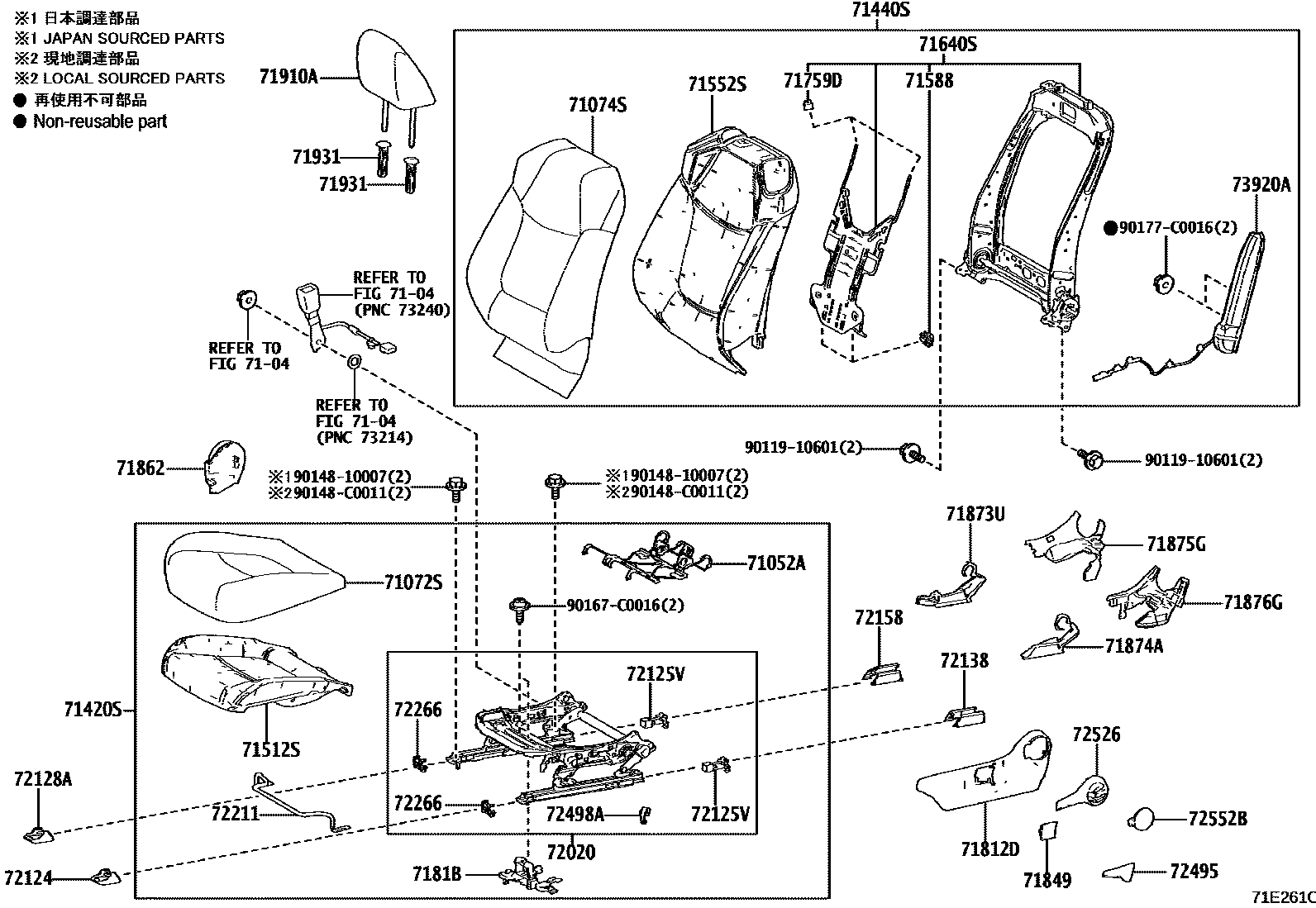

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-06040i202201-202304
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0A190-B1i202407-202411
DK. GRAY,TRIM20
main71072-0A190-C1i202304
BLACK,TRIM1#
main71072-0A190-C2i202407-202411
BLACK/BLACK,TRIM20
main71072-0A190-C3i202407-202411
BLACK/LT.GRAY,TRIM10
main71072-0A210-C8i202201-202304
BLACK,TRIM2#
main71072-0A210-C9i202201-202304
LT.GRAY,TRIM1#
main71072-YL040-A0i202304
CKD COLOR,TRIM4#
main71072-0A590-C0supersedes 71072-0A190-B1i202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLACK,TRIM2#
main71072-0A590-C1supersedes 71072-0A190-C1i202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/LT.GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0A260-B2i202407-202411
DK. GRAY,TRIM20
main71074-0A260-C2i202304
BLACK,TRIM1#
main71074-0A260-C3i202407-202411
BLACK/BLACK,TRIM20
main71074-0A260-C4i202407-202411
BLACK/LT.GRAY,TRIM10
main71074-0A280-C8supersedes 71074-0A260-B2i202304
BLACK,TRIM2#
main71074-0A280-C9supersedes 71074-0A260-C2i202304
LT.GRAY,TRIM1#
main71074-YL090-A0i202304
CKD COLOR,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-0A230-B4i202201-202304
LT.GRAY,TRIM1#
main71420-0A230-C4i202201-202304
BLACK,TRIM2#
main71420-0A360-B0i202304
LT.GRAY,TRIM1#
main71420-0A360-C0i202304
BLACK,TRIM2#
main71420-0A370-B0i202304
LT.GRAY,TRIM1#
main71420-0A370-C0i202304
BLACK,TRIM2#
main71420-YL060-E0i202304
CKD COLOR,TRIM4#
main71420-0A360-B1supersedes 71420-0A360-B0i202407-202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.GRAY,TRIM10
main71420-0A360-C2supersedes 71420-0A360-C0i202407-202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20
main71420-0A600-B0supersedes 71420-0A360-B0i202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.GRAY,TRIM1#
main71420-0A600-C0supersedes 71420-0A360-C0i202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-0A300-B2i202304
DK.GRAY,TRIM1#
main71440-0A300-B3i202407-202411
LT.GRAY,TRIM10
main71440-0A300-C2i202304
BLACK,TRIM2#
main71440-0A320-B4i202201-202304
LT.GRAY,TRIM1#
main71440-0A320-C4i202201-202304
BLACK,TRIM2#
main71440-0A470-B0i202304
LT.GRAY,TRIM1#
main71440-0A470-C0i202304
BLACK,TRIM2#
main71440-YL090-E0i202304
CKD COLOR,TRIM4#
main71440-0A300-C3supersedes 71440-0A300-C2i202407-202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20
main71440-0AA00-B0supersedes 71440-0A300-B2i202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.GRAY,TRIM1#
main71440-0AA00-C0supersedes 71440-0A300-C2i202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-F4050i202304
main71512-F4070i202201-202304
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-02C90i202201-202304
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
main71587-06010×2i202201-202304
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-02C60i202201-202304
main71640-02D10i202201-202304
main71640-0A160i202304
71759DHOOK, FRONT SEATBACK, NO.2
main71759-06030×2i202201-202304
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-06570-C0i202201-202304
BLACK,TRIM1#,2#
main71812-06580-C0i202304
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-06010i202304
main7181B-06020i202304
71849CAP, SEAT ADJUSTER COVER, LH
main71849-F4040-C0i202201-202304
BLACK,TRIM1#,2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06340-C0i202201-202304
BLACK,TRIM1#,2#
71873USHIELD, FRONT SEAT CUSHION, LOWER RH
main71874-02510i202304
main71874-06400i202201-202304
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06390i202304
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-06420-C0i202201-202304
BLACK,TRIM1#,2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-06390-C0i202304
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-0A340-A0×2i202304
CKD COLOR,TRIM4#
main71910-0A340-B0×2supersedes 71910-0A380-B0i202201-202304
LT.GRAY,TRIM1#
main71910-0A340-C0×2supersedes 71910-0A380-C0i202201-202304
BLACK,TRIM2#
main71910-0A380-B0×2i202407-202411
LT. GRAY,TRIM10
main71910-0A380-B1×2i202407-202411
LT.GRAY,TRIM10
main71910-0A380-C0×2i202304
BLACK,TRIM2#
main71910-0A380-C1×2supersedes 71910-0A380-C0i202407-202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20
71931SUPPORT, FRONT SEAT HEADREST
main71930-06070-B1×2i202201-202304
W(LOCK),LT.GRAY,TRIM1#
main71930-06070-C0×2supersedes 71931-06060-C0i202201-202304
W(LOCK),BLACK,TRIM2#
main71931-06060-B1×2i202304
W/O(LOCK),LT.GRAY,TRIM1#
main71931-06060-C0×2i202304
W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM2#,4#; W/O(LOCK),BLACK,TRIM4#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-02A90i202304
main72020-02B00i202304
main72020-06372i202201-202304
main72020-0A090i202201-202304
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-06110i202304
72125VCOVER, SEAT TRACK, UPPER REAR LH
main72125-06050×2i202201-202304
main72125-06060×2i202304
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-06110i202201-202304
72138COVER, SEAT TRACK, OUTER LH
main72137-06130i202201-202304
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-F4030i202201-202304
72211HANDLE, SEAT TRACK ADJUSTING
main72211-06140i202201-202304
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-06020×2i202201-202304
main72265-06030×2i202201-202304
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-F4060-C0i202201-202304
BLACK,TRIM1#,2#
72498ACOVER, VERTICAL ADJUSTER BRACKET, LH
main72498-06050i202201-202304
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-F4100-C0i202201-202304
BLACK,TRIM1#,2#
72552BCOVER, RECLINING HINGE, LH
main72551-06010-C0i202304
BLACK,TRIM1#,2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-02360i202201-202304
9011910601
main90119-10601
9014810007
main90148-10007
90148C0011
main90148-C0011
90167C0016
main90167-C0016
90177C0016
main90177-C0016

39 parts on this diagram · 4 diagrams in section
