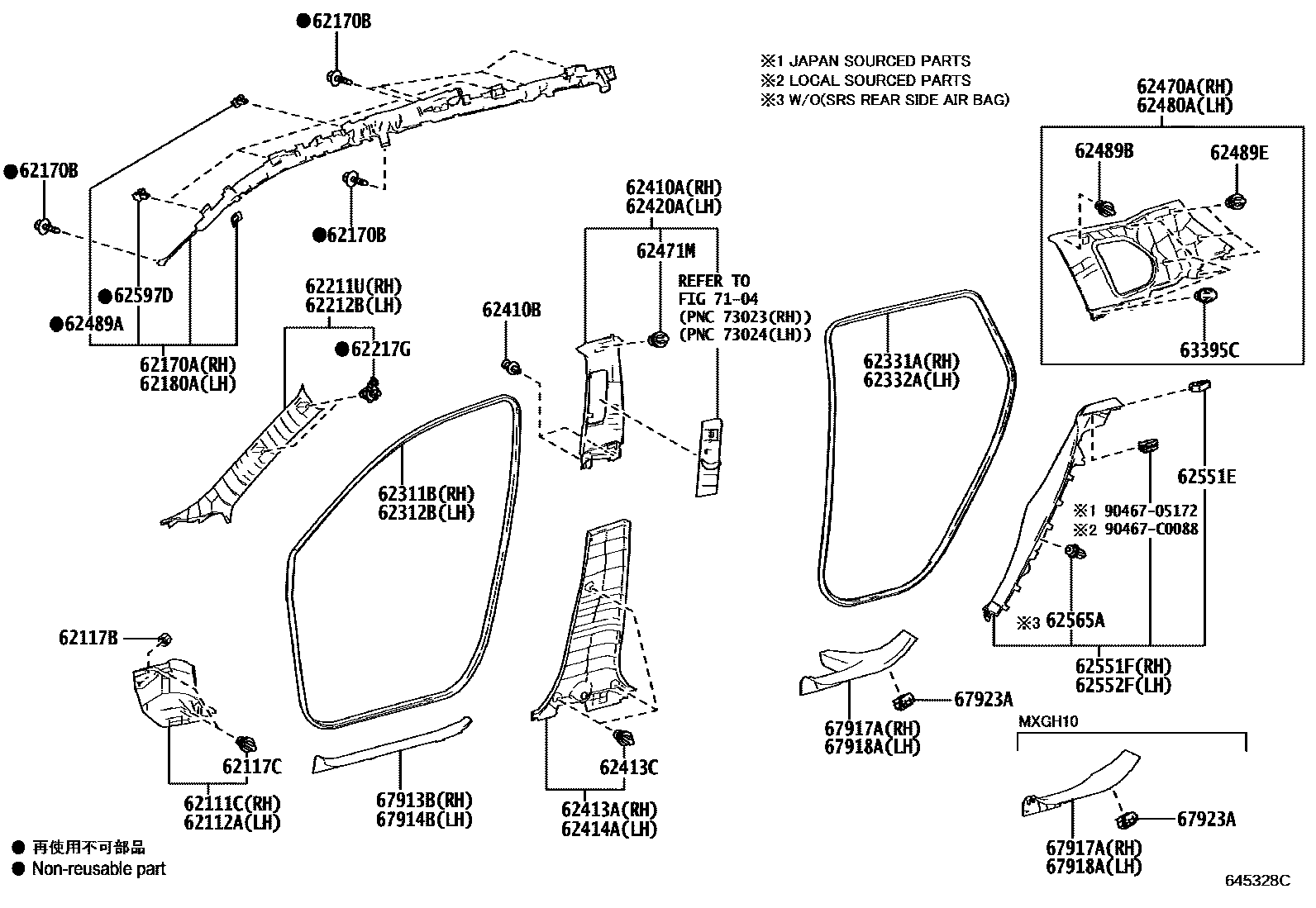

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-0A070-C0iMXGA10,MXGH10..A; MXGA10,MXGH10..E,J,N; MXGA10,MXGH10..G202304

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-0A070-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iMXGA10202201-202304

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-C0035×4iMXGA10202201-202304

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0A050iMXGA10202201-202304

62170BBOLT, W/WASHER

main90119-C0107×12iMXGA10202201-202304

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0A070iMXGA10202201-202304

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-0A170-B0iMXGA10,MXGH10..G; MXGA10,MXGH10..J,N202304

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#

main62210-0A180-B0iMXGA10,MXGH10..A; MXGA10,MXGH10..E202304

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM4#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-0A170-B0iMXGA10,MXGH10..G; MXGA10,MXGH10..J,N202304

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#

main62220-0A180-B0iMXGA10..A,E202201-202304

LT.GRAY,TRIM1#,2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050×4iMXGA10202201-202304

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0A060iMXGA10202201-202304

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0A070iMXGA10202201-202304

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0A060iMXGA10202201-202304

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0A060iMXGA10202201-202304

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-0A070-C0iMXGA10,MXGH10..A; MXGA10,MXGH10..E,J,N; MXGA10,MXGH10..G202304

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#

62410BCLIP

main90467-C0024×4iMXGA10202201-202304

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0A070-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-C0036×6iMXGA10202201-202304

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0A070-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-0A070-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0A110-B0iMXGA10202201-202304

LT.GRAY,TRIM1#,2#

62471MCLIP

main90467-C0035×2iMXGA10202201-202304

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0A110-B0iMXGA10,MXGH10..A; MXGA10,MXGH10..E,J,N; MXGA10,MXGH10..G202304

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM4#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010×2iMXGA10,MXGH10202304

62489BCLIP, ROOF SIDE INNER GARNISH

main90467-C0034×2iMXGA10202201-202304

62489ECLIP, ROOF SIDE INNER GARNISH

main90467-C0036×6iMXGA10,MXGH10202304

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-13082-A0×2iMXGA10,MXGH10202304

MELLOW WHITE

62551FGARNISH, REAR SEAT SIDE, RH

main62551-0A181-C0iMXGA10,MXGH10..A; MXGA10,MXGH10..G; MXGA10,MXGH10..J,N202304

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#

main62551-0A230-C0iMXGA10,MXGH10..E202304

BLACK,TRIM1#,2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-0A151-C0iMXGA10,MXGH10..A; MXGA10,MXGH10..G; MXGA10,MXGH10..J,N202304

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#

main62552-0A230-C0iMXGA10,MXGH10..E202304

BLACK,TRIM1#,2#

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main62217-13010×2iMXGA10202201-202304

62597DCLIP

main90467-18017×6iMXGA10,MXGH10202304

63395CCLIP(FOR ROOF SIDE INNER GARNISH)

main90467-09240×8iMXGA10202201-202304

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0A060-C0iMXGA10,MXGH10..A; MXGA10,MXGH10..E,J,N; MXGA10,MXGH10..G202304

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0A060-C0iMXGA10,MXGH10..A; MXGA10,MXGH10..E,J,N; MXGA10,MXGH10..G202304

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0A090-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

main67917-0A150-C0iMXGH10..A; MXGH10..E,N; MXGH10..G202307

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0A090-C0iMXGA10202201-202304

BLACK,TRIM1#,2#

main67918-0A150-C0iMXGH10..A; MXGH10..E,N; MXGH10..G202307

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20090×2iMXGA10202201-202304

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

9046705172

main90467-05172

90467C0088

main90467-C0088

40 parts on this diagram · 1 diagram in section
