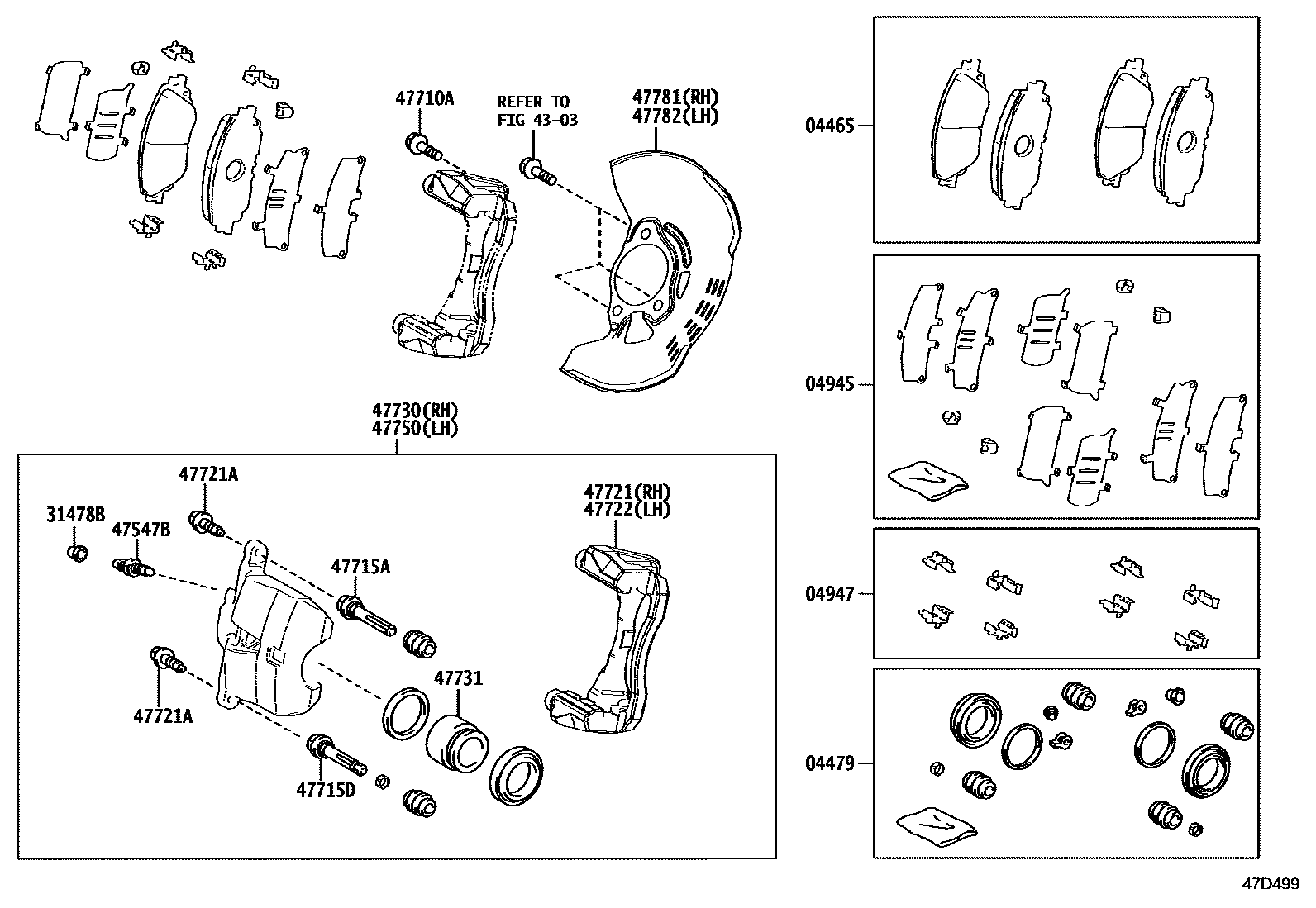

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02590iMXGA10,MXGH10202304

MARK VC115-FG

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02480iMXGA10202201-202304

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06180iMXGA10202201-202304

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06110iMXGA10202201-202304

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010×2iMXGA10,MXGH10202304

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iMXGA10,MXGH10202304

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iMXGA10,MXGH10202304

*12-1.25PX29.5-23,(J)

main90105-C0021×4iMXGA10202201-202304

*12-1.25PX29.5-23,(L)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0R020×2iMXGA10202201-202304

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0D210×2iMXGA10202201-202304

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-F4040iMXGA10202201-202304

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA608×4iMXGA10202201-202304

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-F4040iMXGA10202201-202304

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-F4040iMXGA10202201-202304

47731PISTON, FRONT DISC BRAKE

main47731-02390×2iMXGA10202201-202304

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-F4040iMXGA10202201-202304

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-F4040iMXGA10202201-202304

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-F4040iMXGA10202201-202304

17 parts on this diagram · 1 diagram in section
