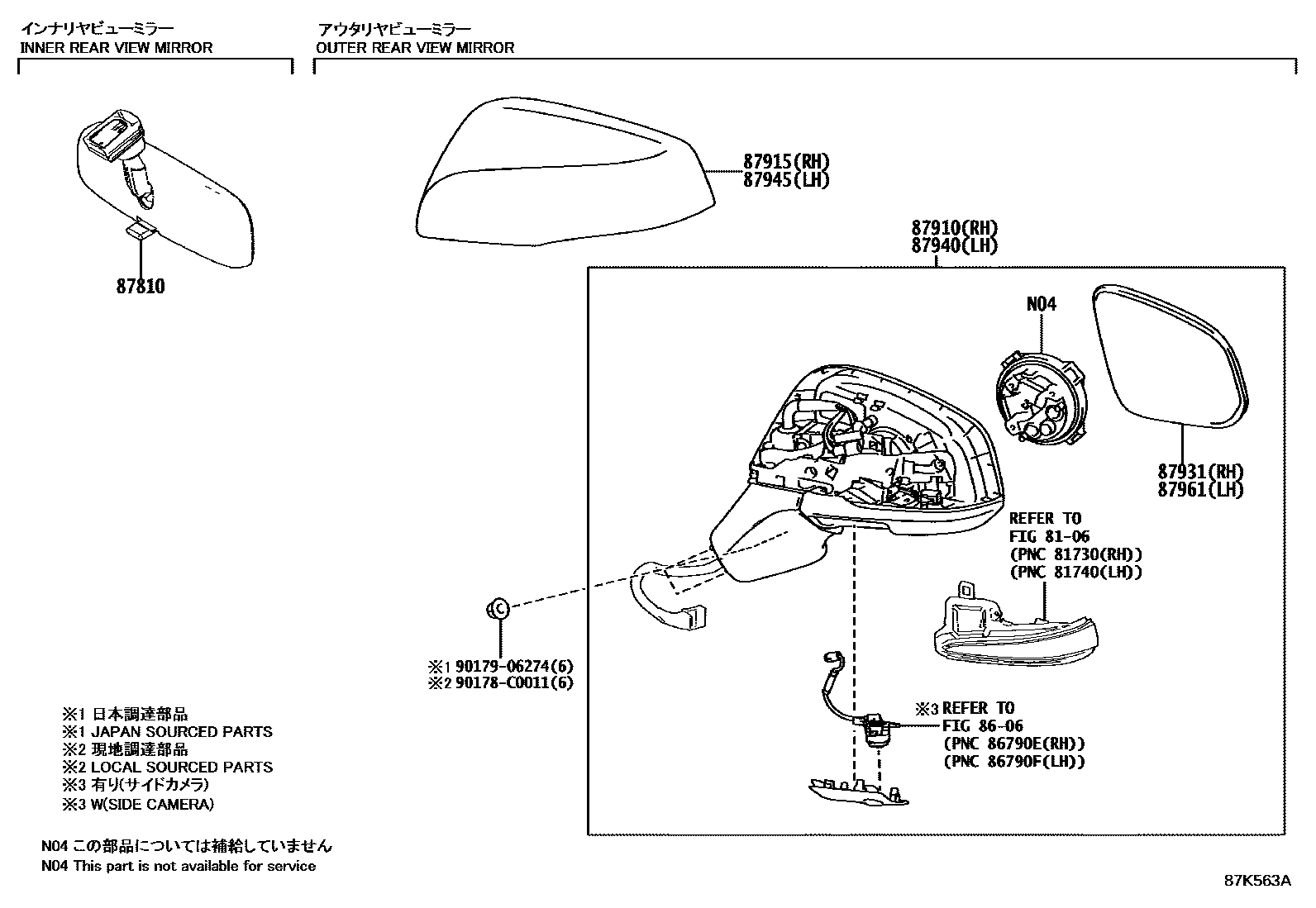

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,CARE CHINA
87915COVER, OUTER MIRROR, RH
PAINT REQ.
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,CARE CHINA
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87961MIRROR OUTER, LH
CARE CHINA
90178C0011
main90178-C0011
9017906274
main90179-06274
11 parts on this diagram · 1 diagram in section
