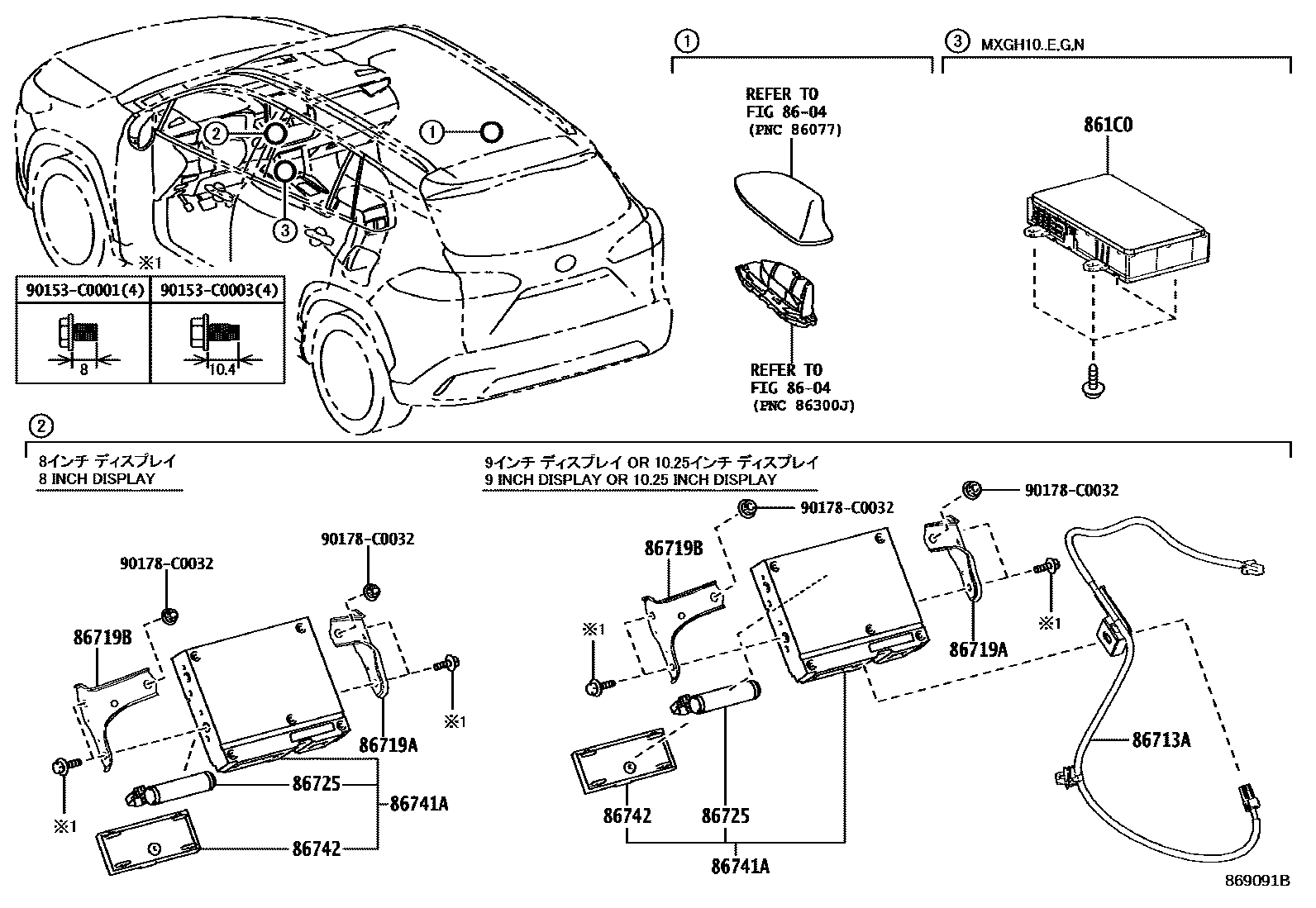

TELEPHONE & MAYDAY

8604ANTENNA

→ Go to FIG 86-04

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-YY140iMXGH10..E,G,N202307

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-0A030iMXGA10..E,G,N202201-202304

ENRTY PLUS PACKAGE

main86713-0A040iMXGA10,MXGH10202304

86719ABRACKET, TELEPHONE NO.1

main86719-02120iMXGA10202201-202304

86719BBRACKET, TELEPHONE NO.2

main86719-02130iMXGA10,MXGH10202201-202304

86725BATTERY, MOBILEPHONE

main86725-F4010iMXGA10202201-202304

86741ATRANSCEIVER, TELEMATICS

main86741-02230iMXGA10,MXGH10202304

main86741-0A010iMXGA10202201-202304

86742COVER, TRANSCEIVER

main86742-0A010iMXGA10202201-202304

90153C0001

main90153-C0001

90153C0003

main90153-C0003

90178C0032

main90178-C0032

11 parts on this diagram · 1 diagram in section
