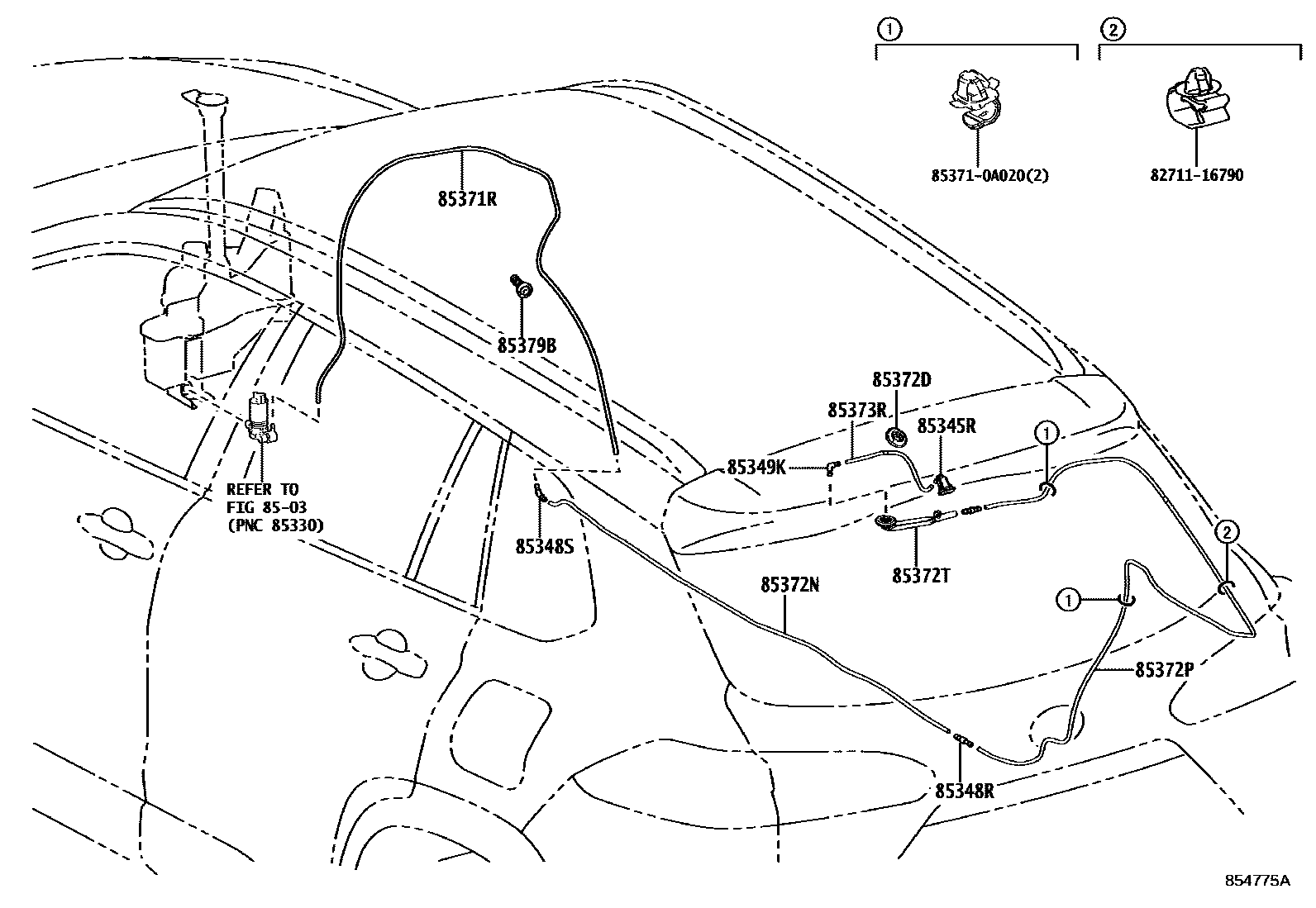

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-0A050iMXGA10202201-202304

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-02650iMXGA10202201-202304

85348SJOINT, REAR WASHER ELBOW, NO.1

main85376-0R260iMXGA10202201-202304

85349KJOINT, REAR WASHER ELBOW, NO.2

main85376-0R260iMXGA10202201-202304

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-46169iMXGA10202201-202304

L=1670

85372DGROMMET, REAR WASHER HOSE

main85372-20020iMXGA10202201-202304

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main85370-0A210iMXGA10202201-202304

L=1400

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90069-46168iMXGA10202201-202304

L=2430

85372TGROMMET, WASHER

main85372-20040iMXGA10202201-202304

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90069-46166iMXGA10202201-202304

L=280

85379BGROMMET, WASHER, A

main85379-0R260iMXGA10202201-202304

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

853710A020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-0A020

14 parts on this diagram · 1 diagram in section
