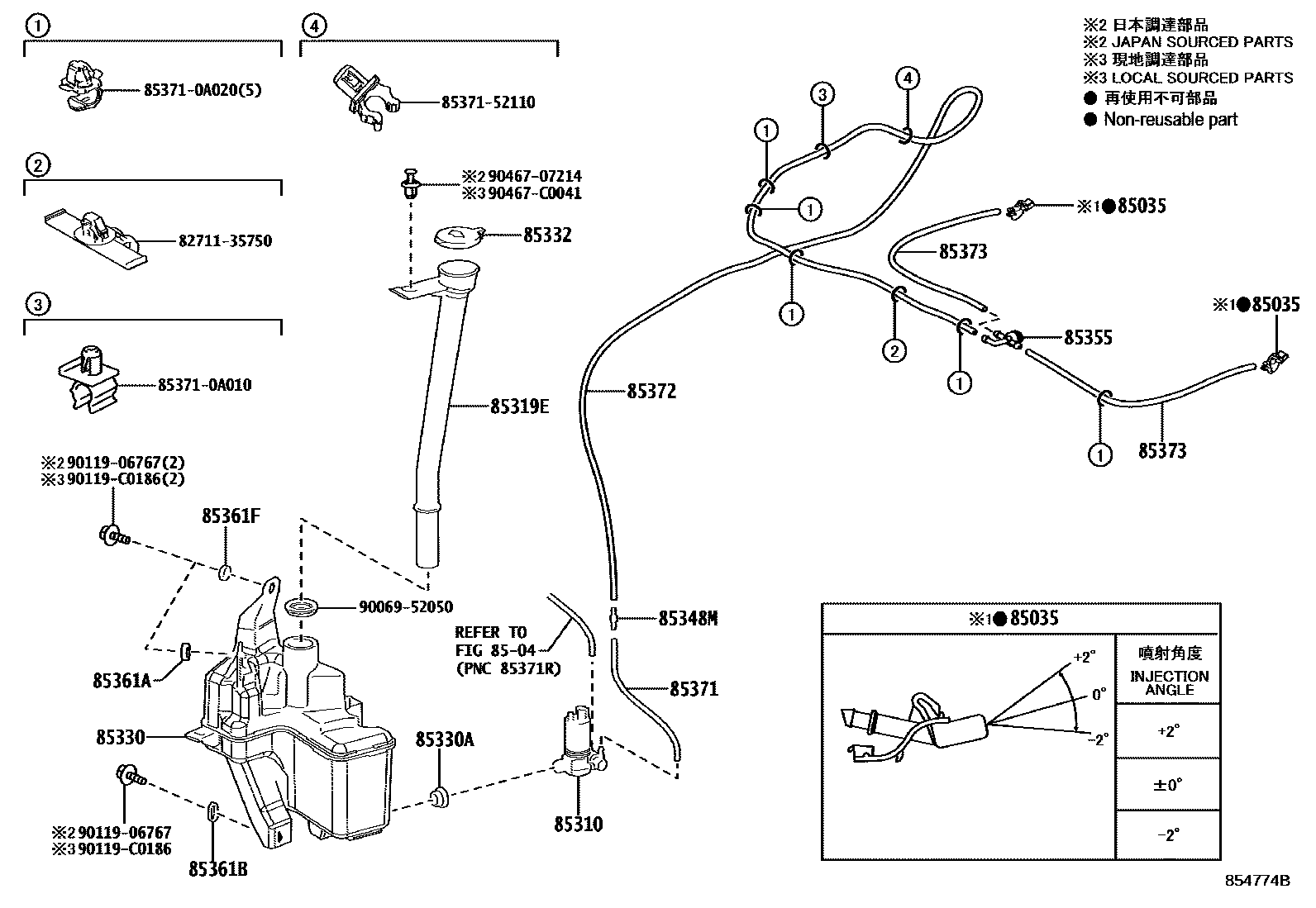

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0A080×2iMXGA10202201-202304

ANGLE 0

main85381-0A090×2iMXGA10,MXGH10202304

ANGLE +2

main85381-0A100×2iMXGA10202201-202304

ANGLE -2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0R050iMXGA10202201-202304

85319EINLET WASHER

main85319-0A090iMXGA10202201-202304

85330JAR ASSY, WINDSHIELD WASHER

main85315-0A090iMXGA10202201-202304

85330ABUSH, WINDSHIELD WASHER JAR

main85336-02840iMXGA10202201-202304

85332CAP, WINDSHIELD WASHER JAR

main85316-0A090iMXGA10202201-202304

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-02650iMXGA10202201-202304

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02650iMXGA10202201-202304

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-02840iMXGA10202201-202304

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85338-02840iMXGA10202201-202304

85361FBRACKET, WINDSHIELD WASHER, NO.3

main85339-02840iMXGA10202201-202304

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46171iMXGA10202201-202304

L=185

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46170iMXGA10202201-202304

L=2300

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46167×2iMXGA10202201-202304

L=440

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

853710A010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-0A010

853710A020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-0A020

8537152110HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52110

9006952050

main90069-52050

9011906767

main90119-06767

90119C0186

main90119-C0186

9046707214

main90467-07214

90467C0041

main90467-C0041

24 parts on this diagram · 1 diagram in section
