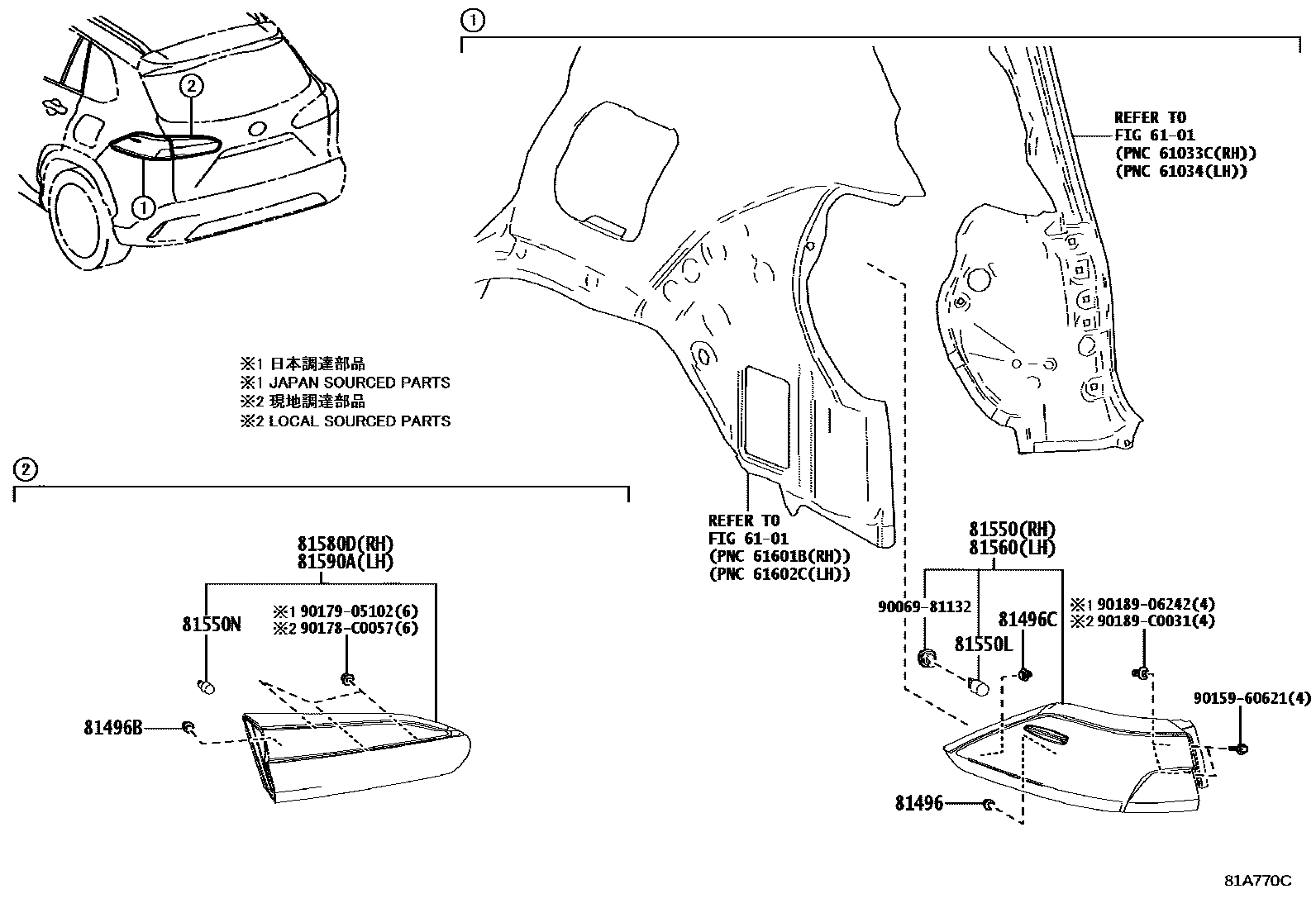

REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-02020iMXGA10,MXGH10202201-202304

(L)

main81496-52020iMXGA10202201-202304

(J)

81496BGUIDE, REAR LAMP

main81496-02020iMXGA10,MXGH10202201-202304

(L)

main81496-52020iMXGA10202201-202304

(J)

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iMXGA10202201-202304

TYPE A

main90467-C0019iMXGA10202201-202304

TYPE B

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0A120iMXGA10..J202201-202206

main81550-0A121iMXGA10..J202207-202304

main81550-0A130iMXGA10..E,G,N202201-202206

main81550-0A131iMXGA10..E,G,N202207-202304

81550LBULB, REAR TURN SIGNAL LAMP

main90981-CB004iMXGA10202201-202304

12V 21W

81550NBULB, BACK UP LAMP

main90981-CB002iMXGA10202201-202304

12V 21W

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0A120iMXGA10..J202201-202206

main81560-0A121iMXGA10..J202207-202304

main81560-0A130iMXGA10..E,G,N202201-202206

main81560-0A131iMXGA10..E,G,N202207-202304

81580DLAMP ASSY, REAR, RH

main81580-0A100iMXGA10..J202201-202304

main81580-0A110iMXGA10,MXGH10..E,G,N202201-202304

81590ALAMP ASSY, REAR, LH

main81590-0A110iMXGA10..J202201-202304

main81590-0A120iMXGA10,MXGH10..E,G,N202201-202304

9006981132

main90069-81132

9015960621

main90159-60621

90178C0057

main90178-C0057

9017905102

main90179-05102

9018906242

main90189-06242

90189C0031

main90189-C0031

16 parts on this diagram · 1 diagram in section
