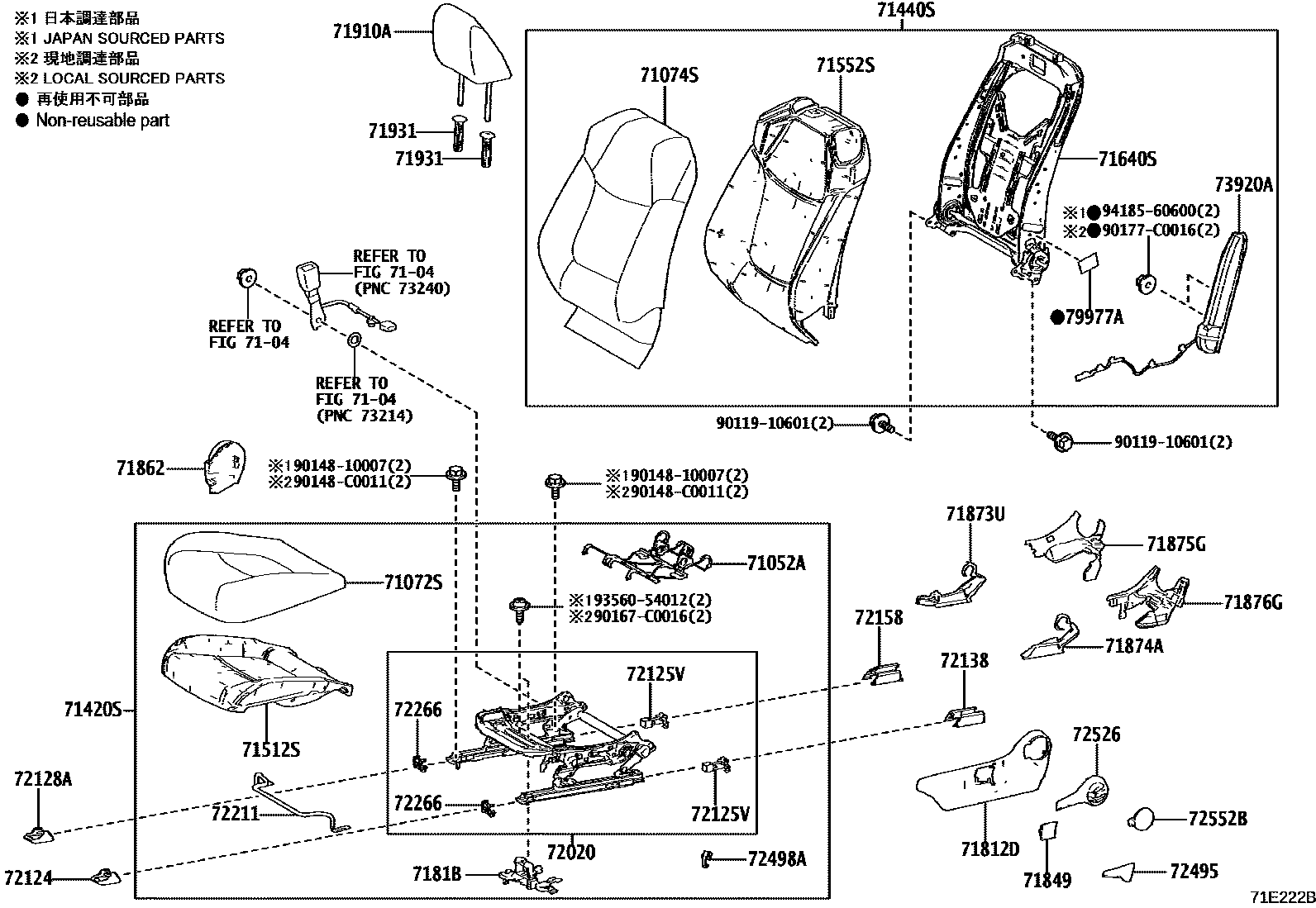

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE (MANUAL) 0002 1DRIVER SIDE (POWER) 0003 1DRIVER SIDE (POWER) 0004 1PASSENGER SIDE

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06040iMXGA10,MXGH10202201-202304

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0A170-C3iMXGA10..J,N202201-202405

BALCK,TRIM4#

main71072-0A170-C3iMXGA10,MXGH10..N202304-202405

CARE CHINA,BALCK,TRIM4#

main71072-0A170-C4iMXGA10,MXGH10..N202201-202405

BALCK,TRIM2#

main71072-0A170-C4iMXGA10,MXGH10..N202304-202405

CARE CHINA,BALCK,TRIM2#

main71072-0A180-C8iMXGA10,MXGH10..N202405

CARE CHINA,BLACK/LT.GRAY,TRIM2#

main71072-0A180-C8iMXGA10..E,G202201-202304

BLACK/LT.GRAY,TRIM2#

main71072-0A180-C9iMXGA10,MXGH10..N202201-202304

BLACK/OCHER,TRIM4#

main71072-0A180-C9iMXGA10,MXGH10..N202405

CARE CHINA,BLACK/OCHER,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0A240-C3iMXGA10,MXGH10..J202201-202405

BALCK,TRIM2#

main71074-0A240-C3iMXGA10,MXGH10..N202304-202405

CARE CHINA,BALCK,TRIM2#

main71074-0A240-E2iMXGA10,MXGH10..N202201-202405

OCHER,TRIM4#

main71074-0A240-E2iMXGA10,MXGH10..N202304-202405

CARE CHINA,OCHER,TRIM4#

main71074-0A250-C6iMXGA10,MXGH10..N202405

CARE CHINA,BLACK,TRIM2#

main71074-0A250-C6iMXGA10..E,G202201-202304

BLACK,TRIM2#

main71074-0A250-E4iMXGA10,MXGH10..E,G202201-202304

OCHER,TRIM4#

main71074-0A250-E4iMXGA10,MXGH10..N202405

CARE CHINA,OCHER,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0A180-C3iMXGA10..J,N202201-202304

BLACK,TRIM2#

main71420-0A180-E4iMXGA10..J,N202201-202304

OCHER,TRIM4#

main71420-0A181-C0iMXGA10,MXGH10..N202304-202405

BLACK,TRIM2#

main71420-0A181-C0iMXGA10,MXGH10..N202304-202405

CARE CHINA,BLACK,TRIM2#

main71420-0A181-E0iMXGA10,MXGH10..N202304-202405

CARE CHINA,OCHER,TRIM4#

main71420-0A181-E0iMXGA10,MXGH10..N202304-202405

OCHER,TRIM4#

main71420-0A200-C5iMXGA10..E,G202201-202304

BLACK,TRIM2#

main71420-0A200-E5iMXGA10..E,G202201-202304

OCHER,TRIM4#

main71420-0A201-C0iMXGA10,MXGH10..N202304

BLACK,TRIM2#

main71420-0A201-C0iMXGA10,MXGH10..N202405

CARE CHINA,BLACK,TRIM2#

main71420-0A201-E0iMXGA10,MXGH10..N202304

OCHER,TRIM4#

main71420-0A201-E0iMXGA10,MXGH10..N202405

CARE CHINA,OCHER,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-0A270-C2iMXGA10,MXGH10..J202201-202405

BLACK,TRIM2#

main71440-0A270-C2iMXGA10,MXGH10..N202304-202405

CARE CHINA,BLACK,TRIM2#

main71440-0A270-E3iMXGA10,MXGH10..N202201-202405

0CHER,TRIM4#

main71440-0A270-E3iMXGA10,MXGH10..N202304-202405

CARE CHINA,0CHER,TRIM4#

main71440-0A290-C5iMXGA10..E,G202201-202304

BLACK,TRIM2#

main71440-0A290-E5iMXGA10..E,G202201-202304

OCHER,TRIM4#

main71440-0A291-C0iMXGA10,MXGH10..E,G202304

BLACK,TRIM2#

main71440-0A291-C0iMXGA10,MXGH10..N202405

CARE CHINA,BLACK,TRIM2#

main71440-0A291-E0iMXGA10,MXGH10..N202405

CARE CHINA,OCHER,TRIM4#

main71440-0A291-E0iMXGA10,MXGH10..N202304

OCHER,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0A090iMXGA10..J,N202201-202304

main71512-0A090iMXGA10,MXGH10..N202304-202405

CARE CHINA

main71512-0A100iMXGA10,MXGH10..E,G202201-202304

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-02D00iMXGA10202201-202304

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-02C50iMXGA10..E,G202201-202304

main71640-02D20iMXGA10..J,N202201-202304

main71640-02D20iMXGA10,MXGH10..N202304-202405

CARE CHINA

main71640-0A140iMXGA10,MXGH10..E,G202304

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-07100-C0iMXGA10,MXGH10..N202201-202304

BLACK,TRIM2#,4#

main71812-07100-C0iMXGA10,MXGH10..E,G202304

CARE CHINA,BLACK,TRIM2#

main71812-F4110-C0iMXGA10,MXGH10..N202201-202405

BLACK,TRIM2#,4#

main71812-F4110-C0iMXGA10,MXGH10..N202304-202405

CARE CHINA,BLACK,TRIM2#,4#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-07020iMXGA10,MXGH10..N202201-202304

main7181B-F4030iMXGA10,MXGH10..N202304-202405

CARE CHINA

main7181B-F4030iMXGA10,MXGH10..J202201-202304

71849CAP, SEAT ADJUSTER COVER, LH

main71849-47010-C1iMXGH10..J202307-202405

BLACK,TRIM2#,4#,(J)

main71849-47010-C1iMXGA10..N202201-202405

BLACK,TRIM2#,4#

main71849-47010-C1iMXGA10..N202304-202405

CARE CHINA,BLACK,TRIM2#,4#

main71849-47010-C1iMXGH10..N202307-202405

CARE CHINA,BLACK,TRIM2#,4#,(J)

main71849-F4030-C0iMXGH10..N202307-202405

BLACK,TRIM2#,4#,(L)

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-F4050-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

main71862-F4050-C0iMXGA10,MXGH10202304

CARE CHINA,BLACK,TRIM2#

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-0R190-C0iMXGA10,MXGH10202304

CARE CHINA,BLACK,TRIM2#

main71874-0R190-C0iMXGA10,MXGH10202304

BLACK,TRIM2#,4#

main71874-F4040-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-F4030-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

main71874-F4030-C0iMXGA10,MXGH10202304

CARE CHINA,BLACK,TRIM2#

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-F4080-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

main71876-F4080-C0iMXGA10,MXGH10202304

CARE CHINA,BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-F4070-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

main71876-F4070-C0iMXGA10,MXGH10202304

CARE CHINA,BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-0A310-C0iMXGA10..J,N202201-202405

BALCK,TRIM2#

main71910-0A310-C0iMXGA10,MXGH10..N202304-202405

CARE CHINA,BALCK,TRIM2#

main71910-0A310-E0iMXGA10,MXGH10..N202304-202405

CARE CHINA,OCHRE,TRIM4#

main71910-0A310-E0iMXGA10,MXGH10..J202201-202405

OCHRE,TRIM4#

main71910-0A320-C0iMXGA10,MXGH10..N202201-202304

BALCK,TRIM2#

main71910-0A320-E0iMXGA10,MXGH10..E,G202201-202304

OCHRE,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-06070-C0iMXGA10,MXGH10..N202304

W(LOCK),CARE CHINA,BLACK,TRIM2#

main71930-06070-C0iMXGA10,MXGH10..N202201-202405

W(LOCK),BLACK,TRIM2#,40

main71930-06070-E5iMXGA10,MXGH10..E,G,J202201-202405

W(LOCK),OCHER,TRIM40

main71931-06060-C0iMXGA10,MXGH10..E,G,J202201-202405

W/O(LOCK),BLACK,TRIM2#,40

main71931-06060-C0iMXGA10,MXGH10..E,G,J202304

W/O(LOCK),CARE CHINA,BLACK,TRIM2#

main71931-06060-E5iMXGA10,MXGH10..N202201-202405

W/O(LOCK),OCHER,TRIM40

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-02A80iMXGA10,MXGH10..N202304

main72020-07052iMXGA10..J,N202201-202304

main72020-0A080iMXGA10..E,G202201-202304

main72020-0R220iMXGA10,MXGH10..J202304

main72020-0R220iMXGA10,MXGH10..N202304-202405

CARE CHINA

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-F4030iMXGA10202201-202304

72125VCOVER, SEAT TRACK, UPPER REAR LH

main72125-F4010iMXGA10,MXGH10..N202304-202405

CARE CHINA

main72125-F4010iMXGA10..J,N202201-202304

main72125-F4020iMXGA10,MXGH10..E,G202304

CARE CHINA

main72125-F4020iMXGA10..E,G202201-202304

main72125-F4020iMXGA10..N202405

(L)

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-F4030iMXGA10202201-202304

72138COVER, SEAT TRACK, OUTER LH

main72137-F4020iMXGA10202201-202304

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-F4020iMXGA10202201-202304

72211HANDLE, SEAT TRACK ADJUSTING

main72211-06140iMXGA10..E,G202201-202304

main72211-06140iMXGA10,MXGH10..N202304-202405

CARE CHINA

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-07020iMXGH10..N202405

(J)

main72265-07020iMXGA10..E,G202201-202304

main72265-07020iMXGA10,MXGH10..E,G202304

CARE CHINA

main72265-F4010iMXGA10..J,N202201-202304

main72265-F4010iMXGA10,MXGH10..N202304-202405

CARE CHINA

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-F4050-C0iMXGA10,MXGH10..N202304-202405

CARE CHINA,BLACK,TRIM2#,4#

main72495-F4050-C0iMXGA10..J,N202201-202405

BLACK,TRIM2#,4#

72498ACOVER, VERTICAL ADJUSTER BRACKET, LH

main72498-F4040-C0iMXGA10,MXGH10..N202201-202405

BLACK,TRIM2#,4#

main72498-F4040-C0iMXGA10,MXGH10..N202304-202405

CARE CHINA,BLACK,TRIM2#,4#

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-F4090-C0iMXGA10..J,N202201-202405

BLACK,TRIM2#,4#

main72526-F4090-C0iMXGA10,MXGH10..N202304-202405

CARE CHINA,BLACK,TRIM2#,4#

72552BCOVER, RECLINING HINGE, LH

main72551-F4080-C0iMXGA10..J,N202201-202405

BLACK,TRIM2#,4#

main72551-F4080-C0iMXGA10,MXGH10..N202304-202405

CARE CHINA,BLACK,TRIM2#,4#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-02370iMXGA10,MXGH10202201-202304

79977AFELT, SEATBACK

main79977-02130iMXGA10,MXGH10..E,G202201-202304

main79977-02130iMXGA10,MXGH10..N202304-202405

CARE CHINA

9011910601

main90119-10601

9014810007

main90148-10007

90148C0011

main90148-C0011

90167C0016

main90167-C0016

90177C0016

main90177-C0016

9356054012

main93560-54012

9418560600

main94185-60600

40 parts on this diagram · 4 diagrams in section
