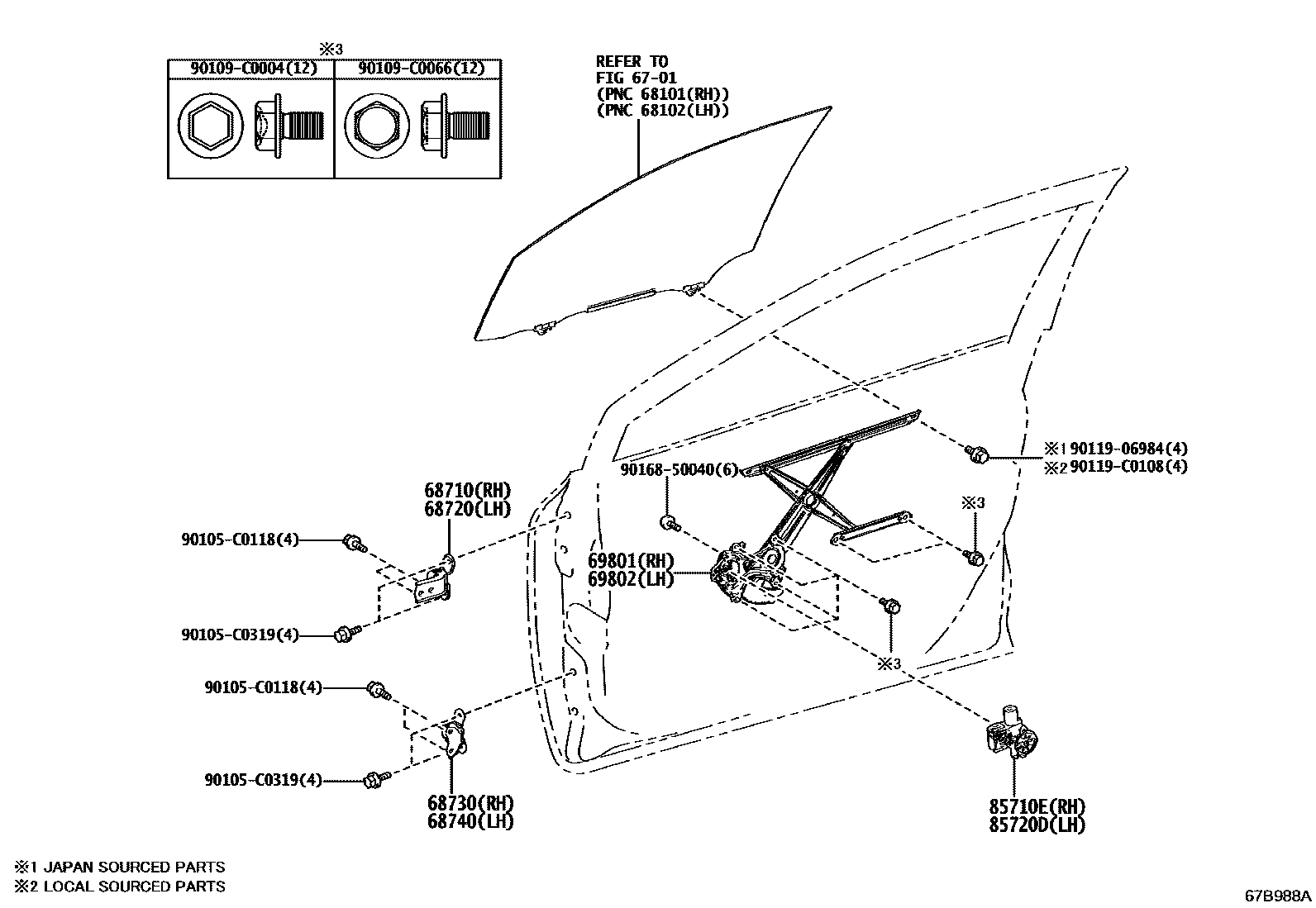

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iMXGA10202201-202304

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iMXGA10202201-202304

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iMXGA10202201-202304

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iMXGA10202201-202304

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0D170iMXGA10202201-202304

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0D180iMXGA10202201-202304

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0A120iMXGA10,MXGH10202304

main85710-F4110iMXGA10202201-202304

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0A110iMXGA10,MXGH10202304

main85720-F4110iMXGA10202201-202304

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90109C0004

main90109-C0004

90109C0066

main90109-C0066

9011906984

main90119-06984

90119C0108

main90119-C0108

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
