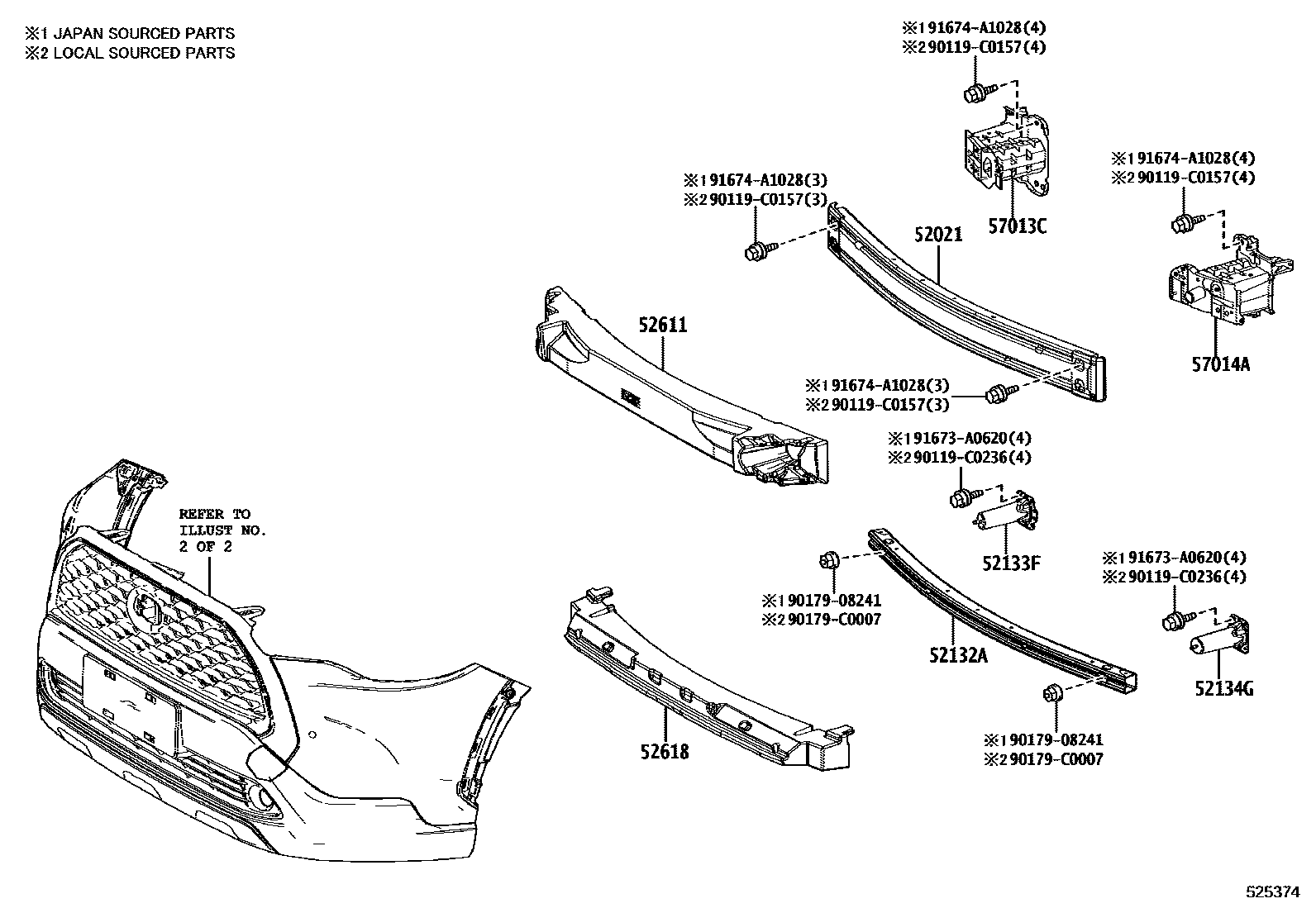

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0A050iMXGA10202201-202304

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-02120iMXGA10202201-202304

52133FBRACKET, FRONT BUMPER, RH

main52133-02180iMXGA10202201-202304

52134GBRACKET, FRONT BUMPER, LH

main52133-02180iMXGA10202201-202304

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0A040iMXGA10202201-202304

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0A040iMXGA10,MXGH10202304

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0A020iMXGA10202201-202304

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0A040iMXGA10202201-202304

90119C0157

main90119-C0157

90119C0236

main90119-C0236

9017908241

main90179-08241

90179C0007

main90179-C0007

91673A0620

main91673-A0620

91674A1028

main91674-A1028

14 parts on this diagram · 2 diagrams in section
