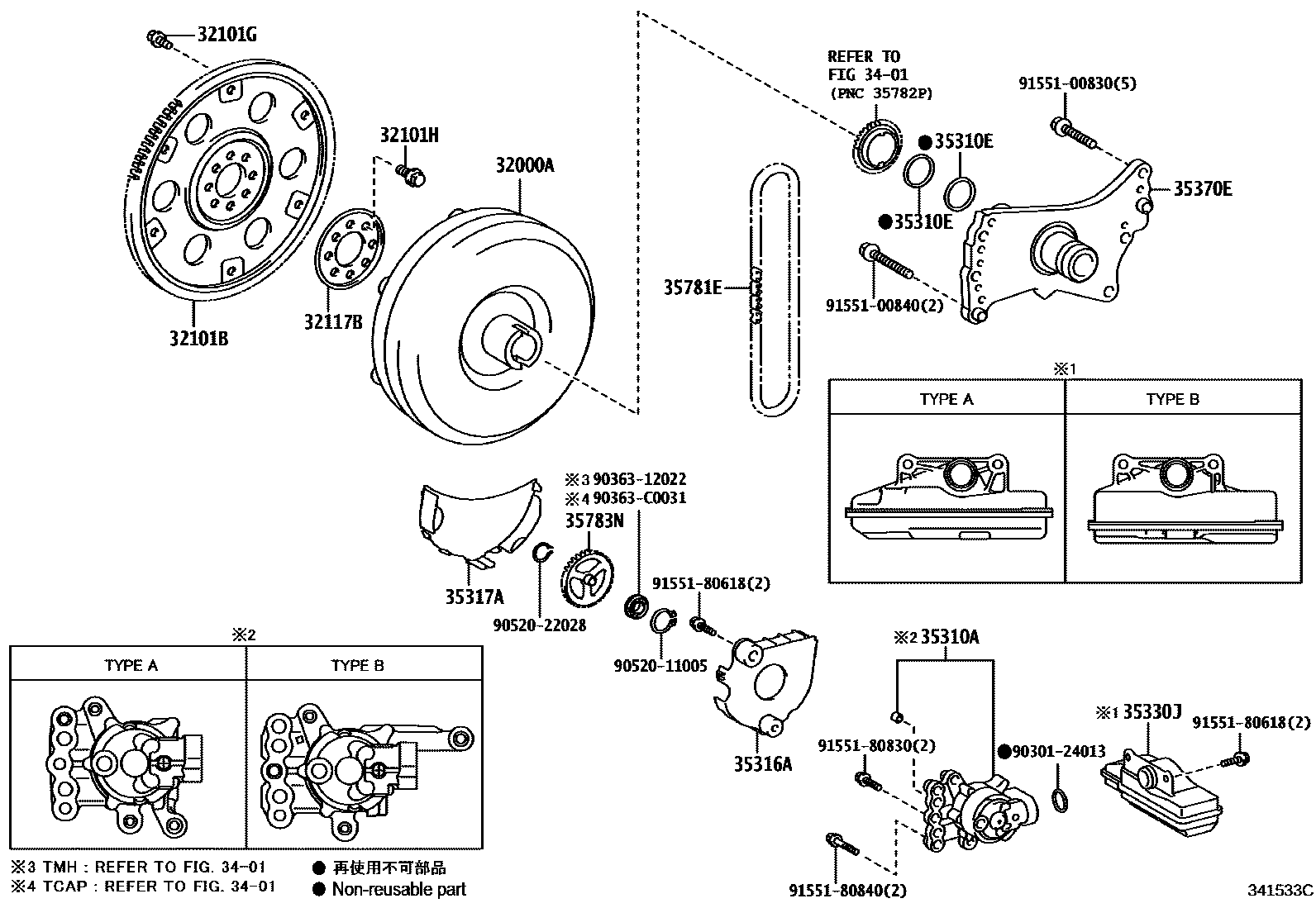

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K120 0002 1K121

32000ACONVERTER ASSY, TORQUE

main32000-0R020iMXGA10202201-202304

TMCAP:REFER 34-01

main32000-12520iMXGA10202201-202304

TMH:REFER 34-01

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0R020iMXGA10202304

(L)

main32101-12120iMXGA10202201-202304

(J)

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMXGA10202201-202304

*9-1.25PX12.4-7.3,BLACK

main90119-09025×5iMXGA10202201-202304

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404×8iMXGA10202304

32117BSPACER, DRIVE PLATE, REAR

main32117-0R010iMXGA10202201-202304

main32117-33010iMXGA10202304

(J)

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMXGA10202201-202208

TYPE A:REFER ILLUST.

main35310-28050iMXGA10202201-202304

TYPE B:REFER ILLUST.

main35310-42010iMXGA10202304

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060×2iMXGA10202201-202304

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12010iMXGA10202201-202212

TMCAP:REFER 34-01

main35316-F4010iMXGA10202304

TMCAP:REFER 34-01

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12010iMXGA10202304

TMH:REFER 34-01

main35317-F4010iMXGA10202304

TMCAP:REFER 34-01

35330JSTRAINER ASSY, OIL

main35330-0R020iMXGA10202201-202208

T/P A,TMCAP:REF34-01

main35330-12080iMXGA10202201-202203

T/P A,TMH:REF.34-01

main35330-28040iMXGA10202201-202304

T/P B,TMH:REF.34-01

main35330-F4010iMXGA10202304

TMCAP:REFER 34-01

35370ESHAFT ASSY, STATOR (CVT)

main35370-12120iMXGA10202201-202304

35781ECHAIN, TRANSMISSION DRIVE

main35781-0R020iMXGA10202304

TMCAP:REFER 34-01

main35781-12010iMXGA10202201-202205

TMH:REFER 34-01

main35781-42010iMXGA10202304

TMH:REFER 34-01

35783NSPROCKET, DRIVEN

main35783-12060iMXGA10202201-202304

9030124013

main90301-24013

9036312022

main90363-12022

90363C0031

main90363-C0031

9052011005

main90520-11005

9052022028

main90520-22028

9155100830

main91551-00830

9155100840

main91551-00840

9155180618

main91551-80618

9155180830

main91551-80830

9155180840

main91551-80840
