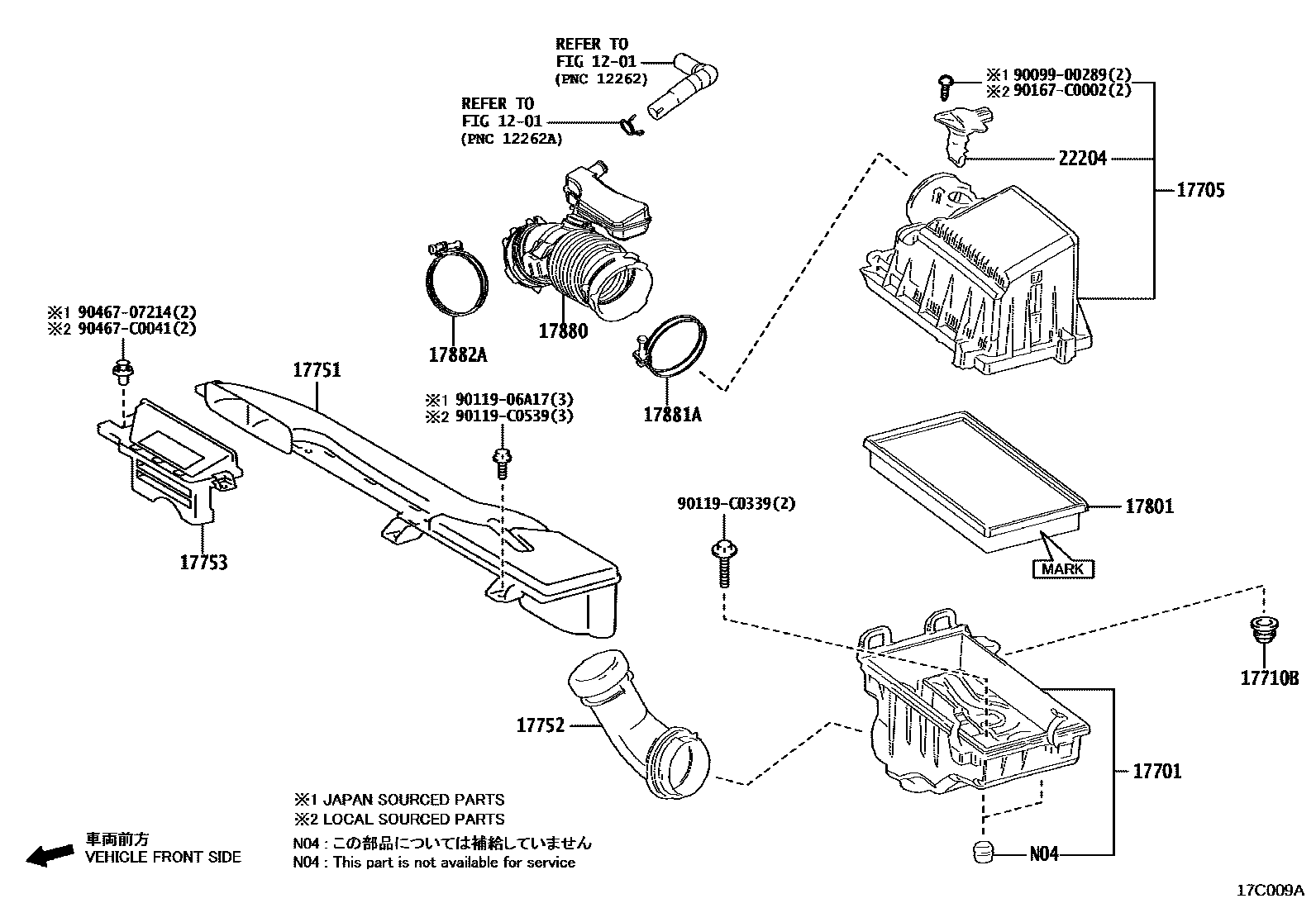

AIR CLEANER

0001 1 0002 1

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-F2021iM20..MXGA10202201-202304

main17701-F2090iM20..MXGH10202307

17705CAP SUB-ASSY, AIR CLEANER

main17705-F2020iM20..MXGA10202201-202304

main17705-F2130iM20..MXGH10202307

17710BGROMMET

main90480-18006iM20..MXGA10202201-202304

17751INLET, AIR CLEANER, NO.1

main17751-F2090iM20..MXGA10202201-202304

main17751-F2150iM20..MXGH10202307

17752INLET, AIR CLEANER, NO.2

main17752-F2030iM20..MXGA10202201-202304

main17752-F2120iM20..MXGH10202307

17753INLET, AIR CLEANER, NO.3

main17753-F2070iM20..MXGA10202201-202304

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-24040iM20..MXGH10202307

(J)

main17801-77050iM20..MXGA10202201-202304

MARK 17801-77050

main17801-F0040iM20..MXGA10202201-202304

MARK 17801-F0040

main17801-F2010iM20..MXGA10202201-202304

MARK 17801-F2010

main17801-F2020iM20..MXGH10202307

(L)

17880HOSE ASSY, AIR CLEANER

main17880-F2020iM20..MXGA10202201-202304

main17880-F2120iM20..MXGH10202307

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10730iM20..MXGH10202307

main96111-10850iM20..MXGA10202201-202304

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800iM20..MXGA10202201-202304

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010iM20..MXGH10202307

main22204-75040iM20..MXGA10202201-202304

9009900289

main90099-00289

9011906A17

main90119-06A17

90119C0339

main90119-C0339

90119C0539

main90119-C0539

90167C0002

main90167-C0002

9046707214

main90467-07214

90467C0041

main90467-C0041

19 parts on this diagram · 2 diagrams in section
