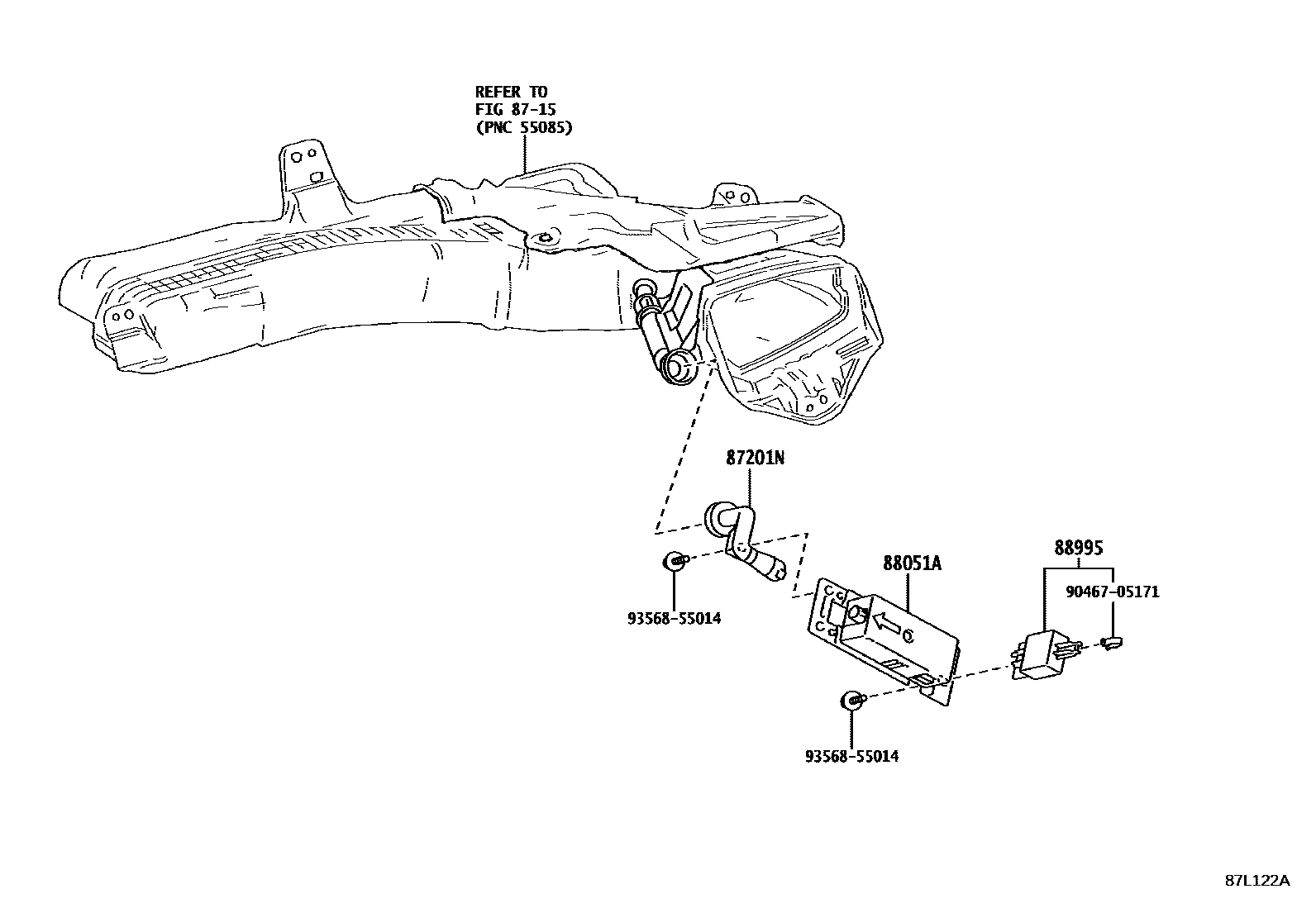

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-16030iMXGH12,15,ZVG12..LHD..E202207

main55848-16040iMXGA10,MXGH1#..RHD..E202207

88051AGENERATOR SUB-ASSY,ION

main88051-48010iMXGA10,MXGH1#,ZVG12..E202207

88995BRACKET,ION GENERATOR, NO.1

main88995-16010iMXGH12,15,ZVG12..LHD..E202207

main88995-16020iMXGA10,MXGH1#..RHD..E202207

9046705171

main90467-05171

9356855014

main93568-55014

6 parts on this diagram · 2 diagrams in section
