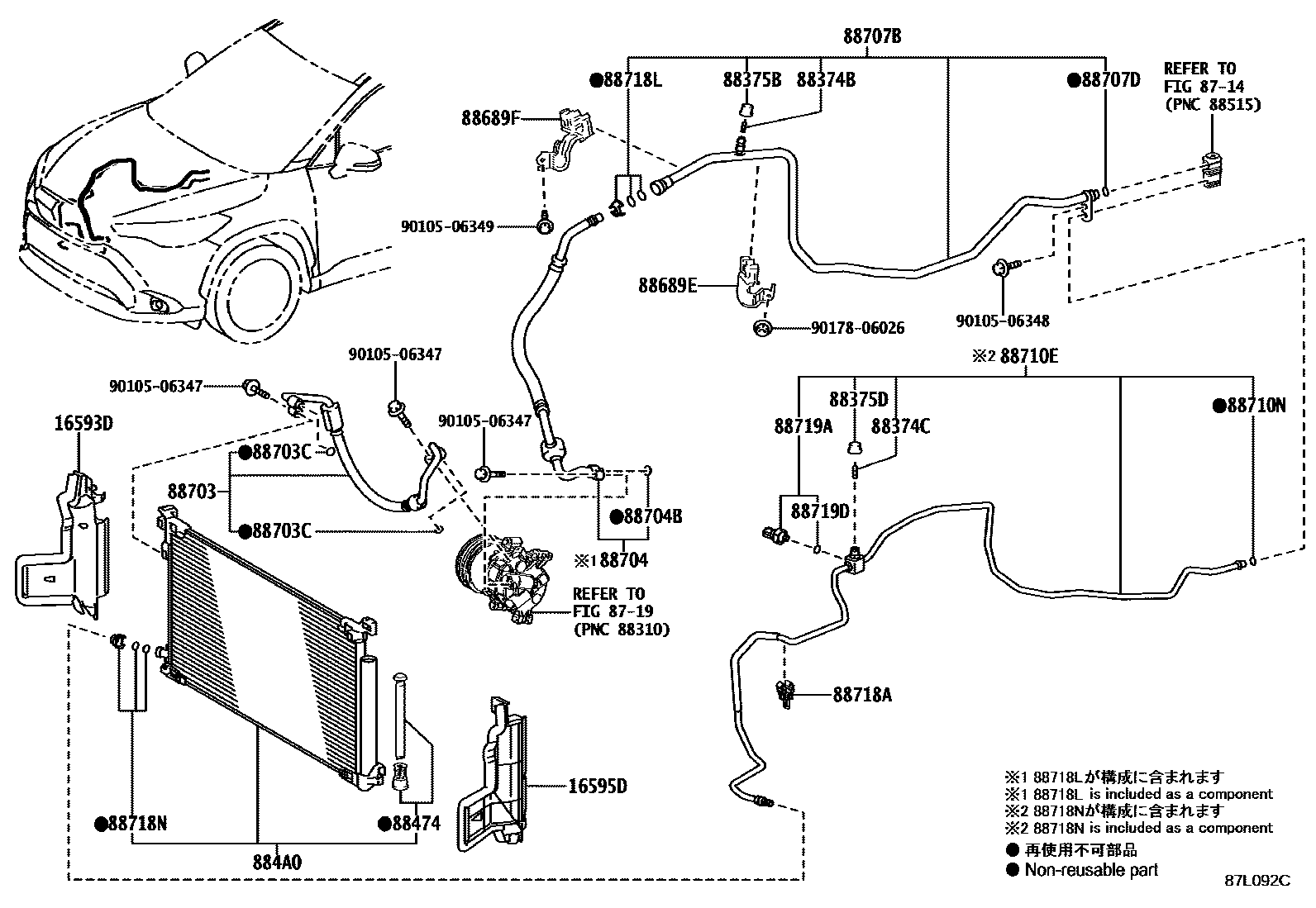

HEATING & AIR CONDITIONING - COOLER PIPING
16593DGUIDE, RADIATOR AIR, NO.1 RH
16595DGUIDE, RADIATOR AIR, NO.1 LH
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
UKRAINE SPEC
UKRAINE,MOLDOVA SPEC
GEORGIA,AZERBAIJAN SPEC
88375DCAP, SERVICE VALVE, NO.2
UKRAINE SPEC
UKRAINE,MOLDOVA SPEC
GEORGIA,AZERBAIJAN SPEC
88474DRYER, COOLER
88689EBRACKET, COOLER, NO.1
88703HOSE SUB-ASSY, DISCHARGE
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88707BTUBE SUB-ASSY, SUCTION, B
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718LCLAMP, PIPING
88718NCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)
ID=10.6,OD=14.16
9010506347
main90105-06347
9010506348
main90105-06348
9010506349
main90105-06349
9017806026
main90178-06026
29 parts on this diagram · 5 diagrams in section
