HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

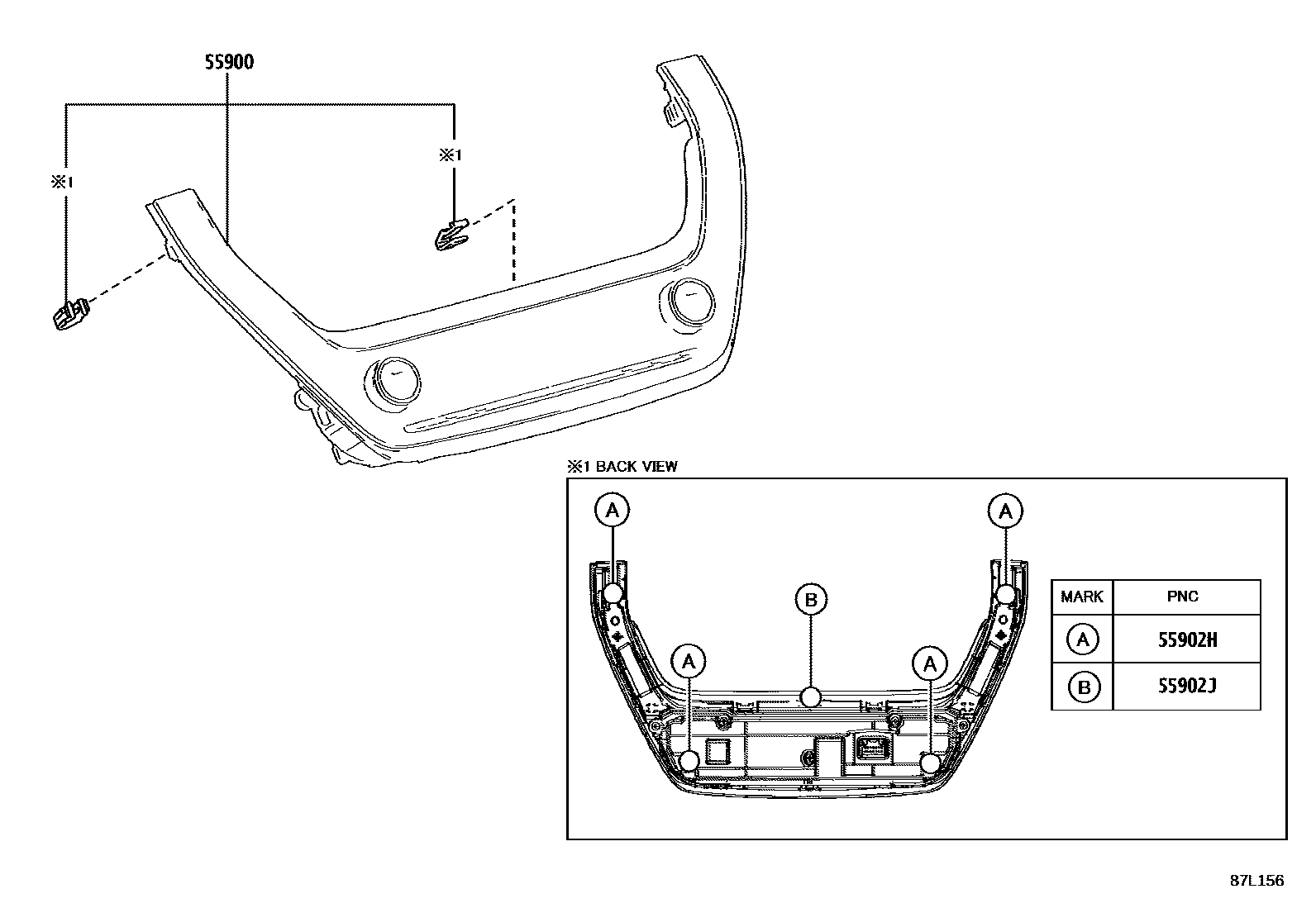

55900CONTROL ASSY, AIR CONDITIONER

main55900-12M10-B0iMXGA10,MXGH10..J202207-202301

SILVER,TRIM1#,2#

main55900-12M11-B0iMXGA10,MXGH10..J202302

SILVER,TRIM1#,2#

main55900-12M30-B0iMXGA10,MXGH10,15..(E,N)..ARL202207-202301

SILVER,TRIM2#

main55900-12M31-B0iMXGA10,MXGH10,15..(E,N)..ARL202302

SILVER,TRIM2#

main55900-16530-B0iMXGH12,15,ZVG1#..LHD202207-202305

SILVER,TRIM1#,2#

main55900-16531-B0iMXGH12,15,ZVG1#..LHD202306

SILVER,TRIM1#,2#

main55900-16540-B0iMXGH12,15..RHD..EUR202207-202301

SILVER,TRIM1#,2#

main55900-16541-B0iMXGH12,15,ZVG13..RHD..EUR202302

SILVER,TRIM1#,2#

55902HCLIP(FOR AIR CONDITIONER PANEL)

main90467-05171×4iMXGA10,MXGH1#,ZVG1#202207

55902JCLIP(FOR AIR CONDITIONER PANEL) NO.2

main90468-08048iMXGA10,MXGH1#,ZVG1#202207

3 parts on this diagram · 5 diagrams in section
