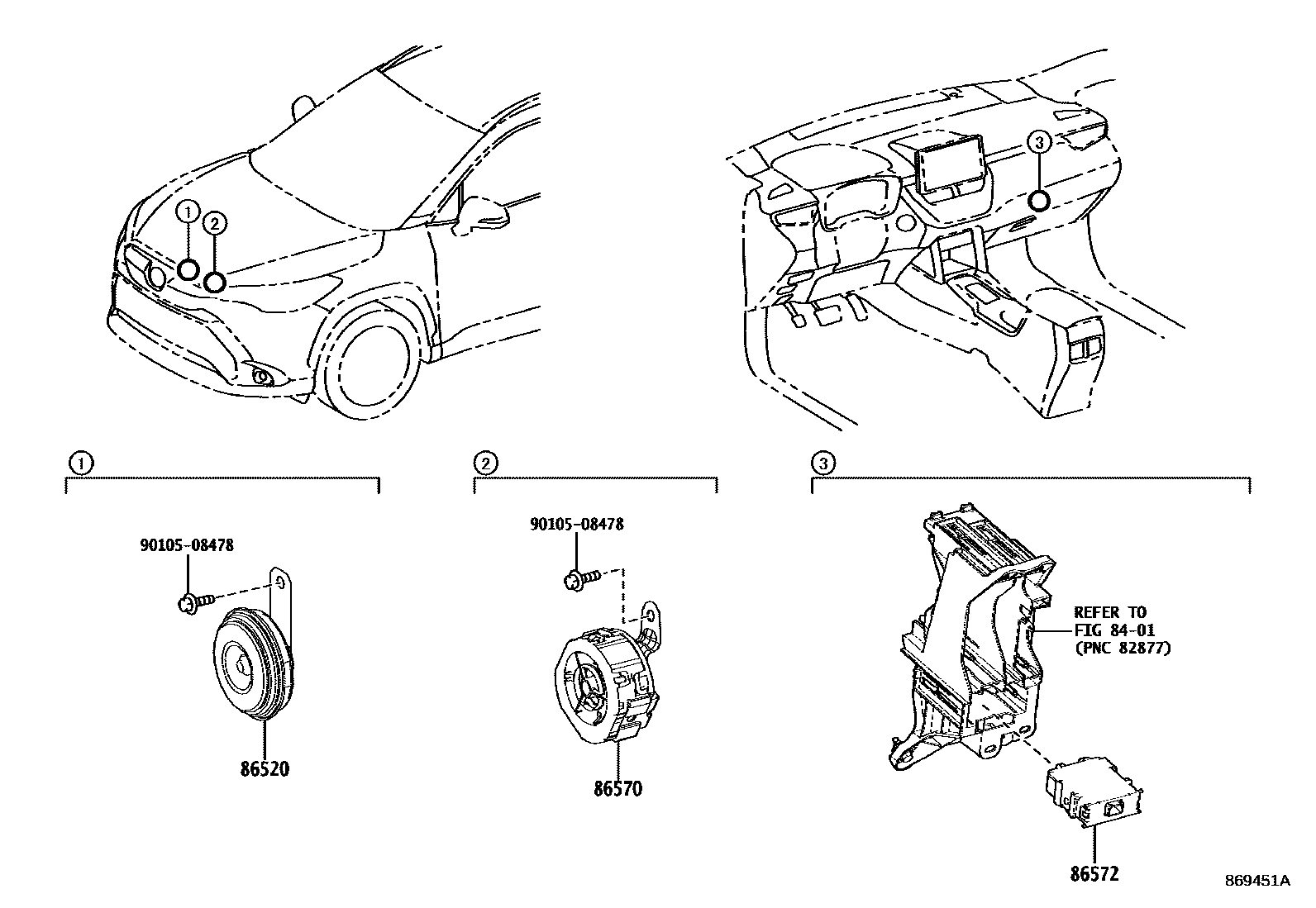

HORN

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86520HORN ASSY, LOW PITCHED

main86520-68010iMXGA10,MXGH1#,ZVG1#202207

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-12030iMXGH12,15,ZVG1#..EUR202207

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-16050iMXGH12,15,ZVG13..RHD..EUR202207-202401

main86572-16060iMXGH12,15,ZVG1#..LHD202207-202401

9010508478

main90105-08478

5 parts on this diagram · 2 diagrams in section
